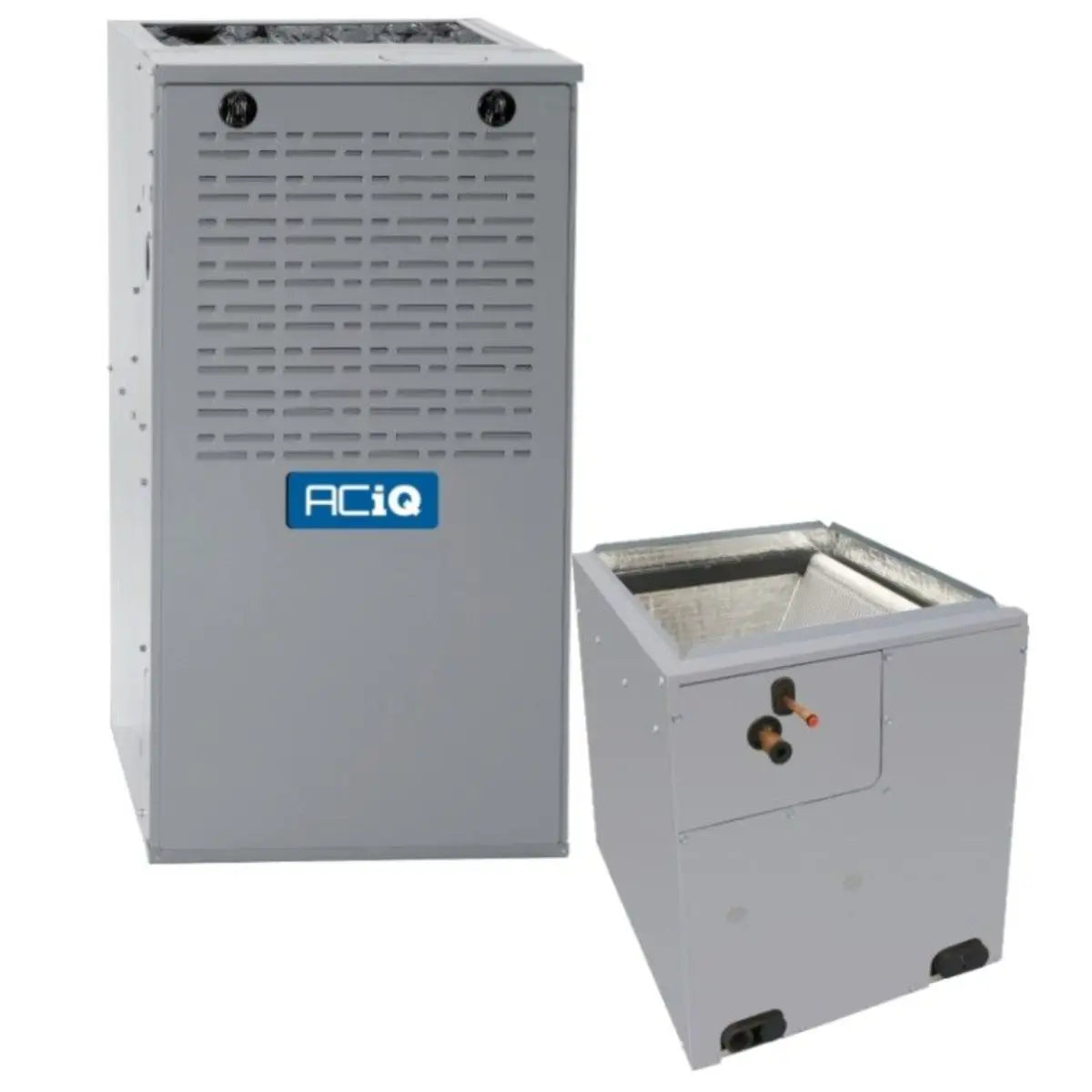

Aciq N80MSN0701712A / EVD5X31M17A 66,000 BTU 2.5 Ton 80% AFUE Furnace and Coil System (Upflow/Downflow) Replaces N80ESN0701712A

Product Description

ACIQ N80MSN0701712A / EVD5X31M17A is a matched furnace and cased evaporator coil system that pairs a 66,000 BTU, 80% AFUE single-stage natural gas furnace with a 2.5 ton vertical cased V-coil. The multi-positional furnace includes a multi-speed ECM blower, direct ignition with a silicon nitride hot surface ignitor, and is field-convertible to propane. The coil features a factory-installed TXV, sweat connections, and a corrosion-resistant PBT drain pan; system uses R454B refrigerant.

• Furnace: 66,000 BTU input, 80% AFUE, single-stage burner, multi-speed ECM blower, multi-positional (upflow/downflow/horizontal).
• Coil: 2.5 ton vertical cased V-coil (17.5" width) with factory-installed TXV, sweat connections, fully insulated casing, PBT corrosion-resistant drain pan.
• Electrical and installation: 115V 1 Phase 60 Hz, max breaker 15 Amps; AHRI certified furnace and UL listed coil.

Product Highlights

Matched 66,000 BTU furnace and 2.5 ton cased coil system with factory TXV, multi-speed ECM blower, and R454B refrigerant

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0701712A / EVD5X31M17A

Technical Specifications

• Brand: ACIQ
• Model / MPN: N80MSN0701712A / EVD5X31M17A
• Furnace MPN: N80MSN0701712A
• Coil MPN: EVD5X31M17A
• Furnace Input BTU: 66,000 BTU
• Furnace Output BTU (approx.): 52,800 BTU
• AFUE: 80%
• Burner Stages: Single
• Blower Motor: Multi-Speed ECM
• Maximum CFM: 1005
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Max Breaker Size: 15 Amps
• Furnace Exhaust Flue Requirement: Metal
• Coil Tonnage: 2.5 Ton
• Coil Width: 17.5"
• Coil Style: Vertical cased V-coil (fully insulated)
• Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Connection: Sweat
• Coil Drain Pan Material: Polybutylene Terephthalate (PBT)
• Coil Feature: Factory-installed TXV kit
• AHRI Certificate Number (Furnace): 213146136
• Certifications: AHRI certified (furnace); UL listed (coil)
• Furnace Dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Furnace Weight: 120 lb
• Coil Weight: 46 lb
• Motor RPM: 1050
• Horsepower: 0.33 HP
• Maximum Inlet Pressure: 13.6 in wc
• Drive Type: Direct
• Replaces: N80ESN0701712A (furnace); EVD4X (coil)
• Equivalent Models (coil): Carrier CVPVA1814XM, Tempstar END4X18L14A, Bryant CNPVP1814ALA
• Safety Information: Proposition 65 warning applies
