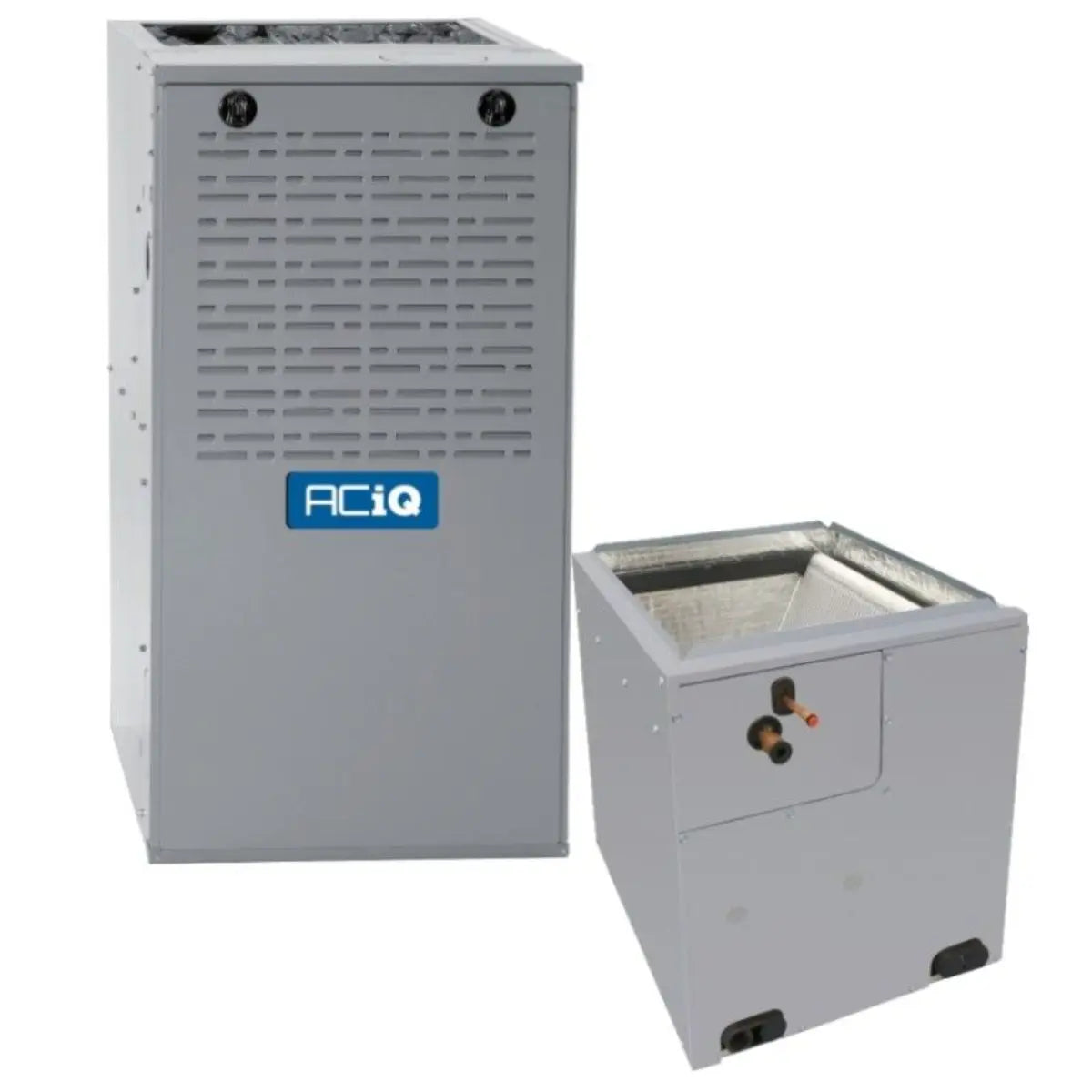

Aciq N80MSN0701712A / EAM5X19M17A 66,000 BTU Furnace and Coil System 80% AFUE (1.5 Ton) N80ESN0701712A

Product Description

The ACIQ N80MSN0701712A / EAM5X19M17A is a matched indoor furnace and cased evaporator coil system providing 66,000 BTU input heating at 80% AFUE and a 1.5 ton coil using R454B refrigerant. The furnace is single-stage, multi-positional, and features a multi-speed ECM blower with direct ignition using a silicon nitride hot surface ignitor. The coil includes a factory-installed thermostatic expansion valve and sweat connections.

• Multi-positional furnace and coil (upflow, downflow, horizontal) for flexible installation
• Furnace: 66,000 BTU input, single-stage burner, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor
• Coil: 1.5 ton cased A-coil, R454B refrigerant, factory-installed TXV, 3/8" liquid and 5/8" suction line connections

Product Highlights

Matched indoor system for use with existing outdoor condenser; 115 V electrical and metal exhaust flue requirement.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0701712A / EAM5X19M17A

Technical Specifications

• Brand: ACIQ
• Model (Furnace): N80MSN0701712A
• Model (Coil): EAM5X19M17A
• Product ID: 211892
• Tonnage: 1.5 Ton
• Heating Input (BTU): 66,000
• AFUE: 80%
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Coil configuration: Multi-positional (upflow, downflow, horizontal)
• Coil refrigerant: R454B
• Coil liquid line size: 3/8"
• Coil suction line size: 5/8"
• Coil style: A-Coil (cased)
• Coil connection: Sweat
• Blower motor type: Multi-speed ECM
• Maximum CFM: 1005
• Input Voltage: 115 V, 1 Phase, 60 Hz
• Maximum breaker size: 15 Amps
• Burner stages: Single
• Ignition type: Direct ignition with silicon nitride hot surface ignitor
• Fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Exhaust flue requirement: Metal
• Furnace height: 33 1/3"
• Furnace width: 17 1/2"
• Furnace depth: 29"
• Coil height: 25 13/16"
• Coil width: 17 1/2"
• Coil depth: 20 5/8"
• Certification: UL Listed
• AHRI certificate number (Furnace): 213146136
• Equivalent / Replaces: Furnace replaces N80ESN0701712A; Coil replaces EAM4X19L17A
