Aciq N80MSN0451714A / EAM5X19M17A 1.5 Ton 80% AFUE 44,000 BTU furnace and coil system (multi-positional) replaces N80ESN0451712A / EAM4X19L17A

Product Description

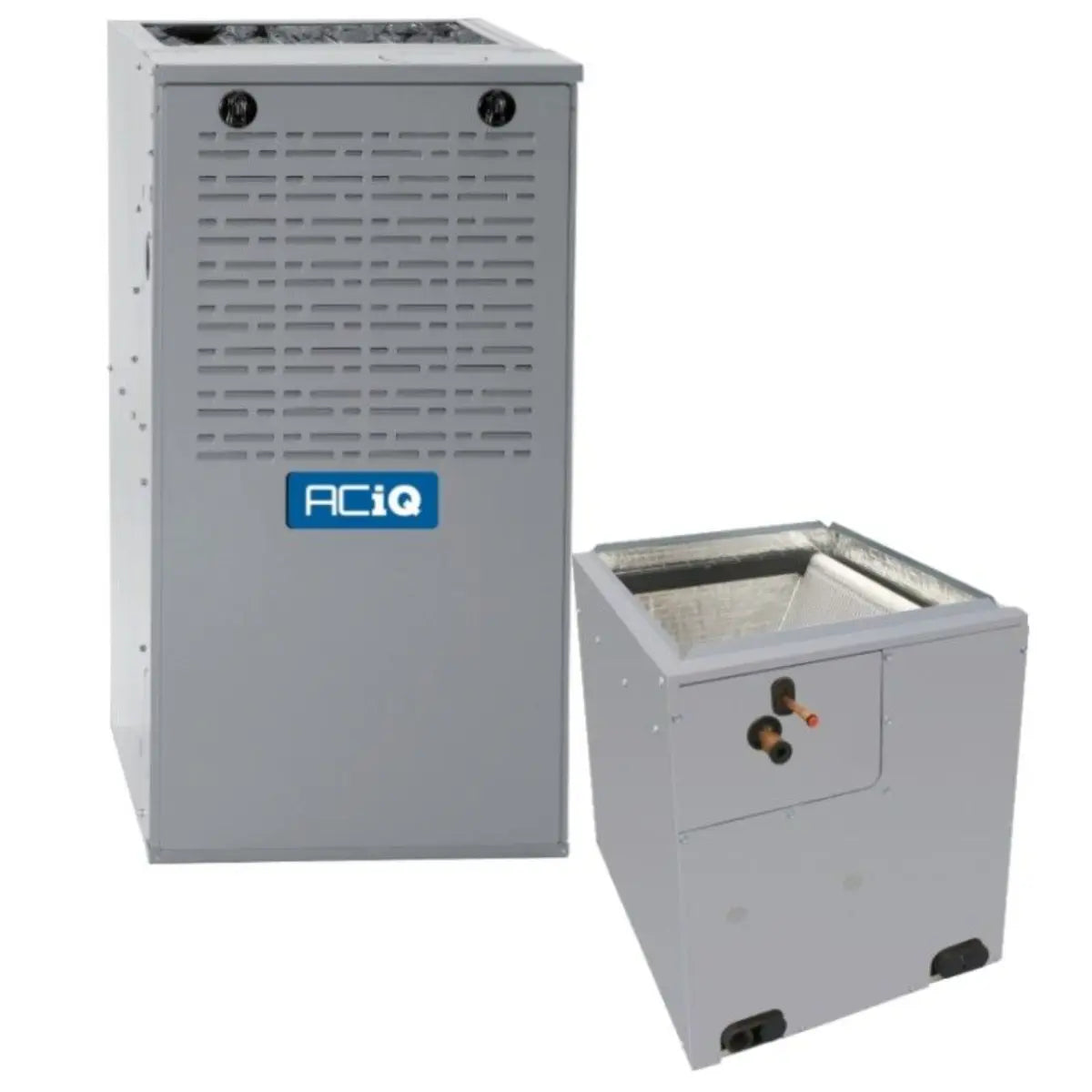

AciQ N80MSN0451714A / EAM5X19M17A is a matched furnace and evaporator coil system that pairs a 44,000 BTU 80% AFUE single-stage natural gas furnace (model N80MSN0451714A) with a 1.5 ton 17.5" cased A-coil (model EAM5X19M17A) factory-equipped with a TXV for R454B refrigerant. The multi-positional system supports upflow, downflow, and horizontal installations, features a multi-speed ECM blower and direct ignition with a silicon nitride hot surface ignitor, and is field-convertible to propane.

• Multi-positional furnace and coil (upflow/downflow/horizontal) with 44,000 BTU input and 80% AFUE
• Coil: 1.5 ton cased A-coil with factory-installed TXV, R454B refrigerant, sweat connections (3/8" liquid, 5/8" suction)
• Furnace: single-stage burner, multi-speed ECM blower (max 1215 CFM), direct ignition, 115 V 1 phase 60 Hz electrical, metal flue required

Product Highlights

Matched 44,000 BTU 80% AFUE furnace with 1.5 ton R454B cased coil; multi-positional installation; factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0451714A / EAM5X19M17A

Technical Specifications

• Brand: ACiQ
• MPN: N80MSN0451714A / EAM5X19M17A

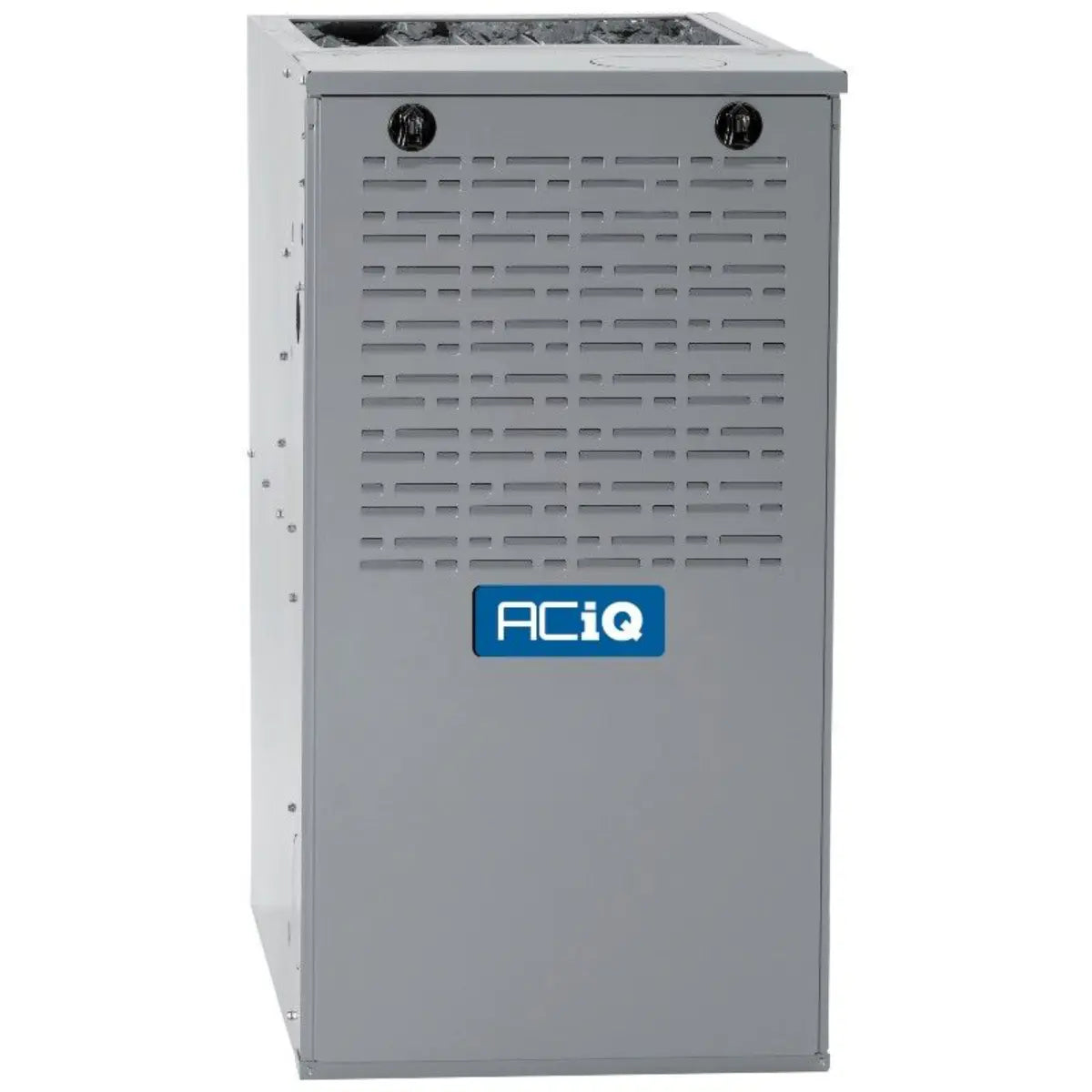

• Furnace SKU: N80MSN0451714A
• Coil SKU: EAM5X19M17A
• Furnace Heating BTU (Input): 44,000 BTU
• Furnace Output BTU: 35,200 BTU
• AFUE: 80%
• Burner Stages: Single-stage
• Blower Motor Type: Multi-speed ECM
• Maximum CFM: 1215
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Input Voltage: 115 V, 1 phase, 60 Hz
• Max Breaker Size: 15 Amps
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Exhaust Flue Requirement: Metal
• Coil Tonnage: 1.5 Ton
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 5/8"

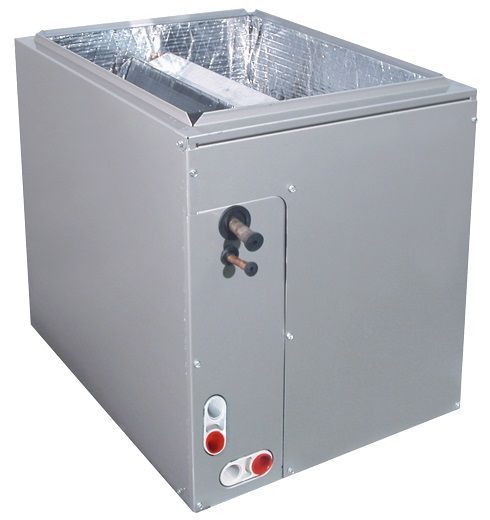

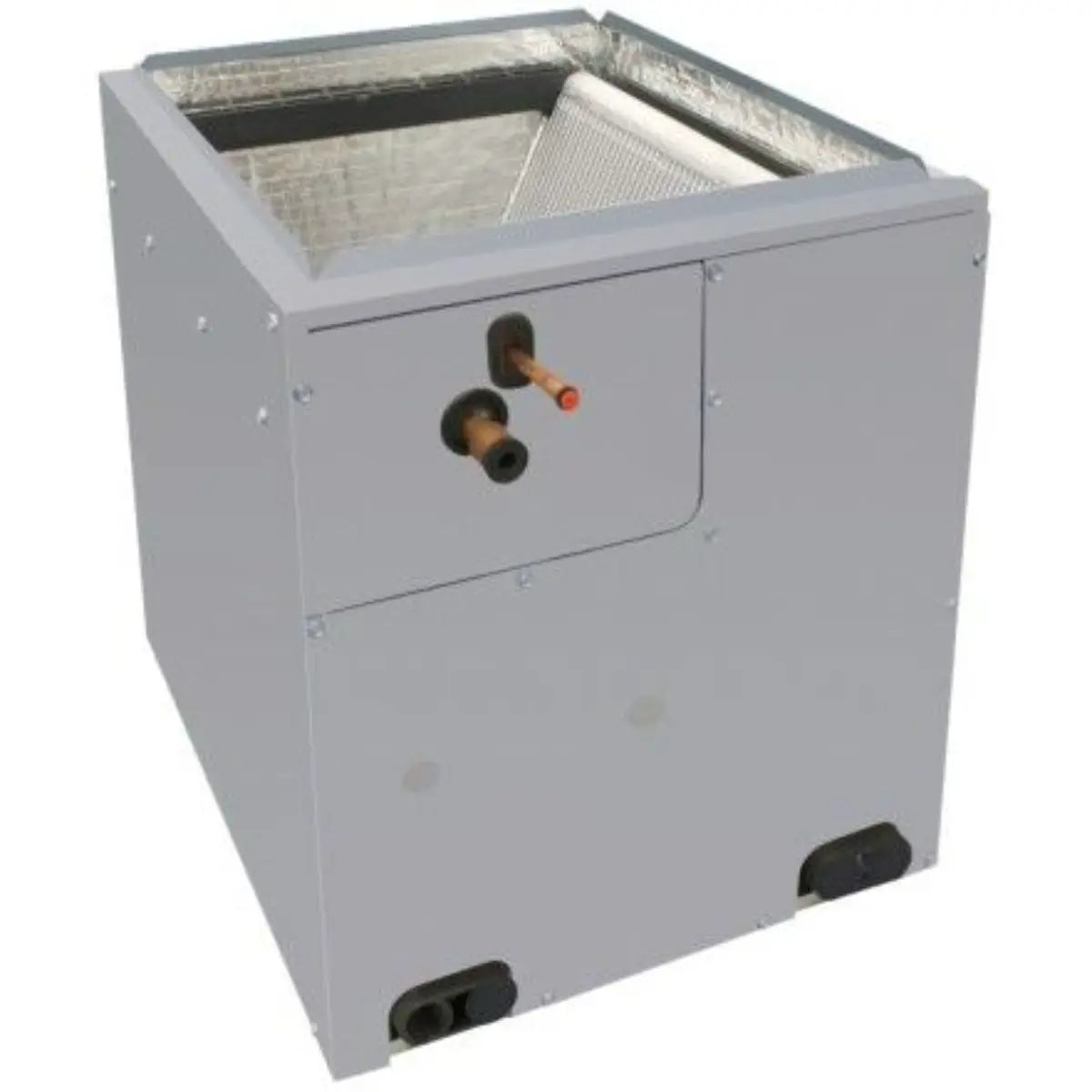

• Coil Style: A-Coil (cased evaporator)
• Coil Connection Type: Sweat
• Coil Feature: Factory-installed TXV kit
• Certifications: UL Listed (coil), AHRI Certified (furnace)
• Replaces (Furnace): N80ESN0451712A
• Replaces (Coil): EAM4X19L17A
• Equivalent (Carrier): Furnace 58SB0A045E17--12; Coil CAPMP1814ALA
• Furnace Dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Indoor Unit Capacity: 18,000 BTU (1.5 Ton)
• Connection (Furnace): 1/2" NPT
• Maximum Inlet Pressure: 13.6" wc
• Motor RPM: 1050
• Horsepower: 0.5 HP
• Notes (product-related only): Not Low NOx or Ultra Low NOx compliant
