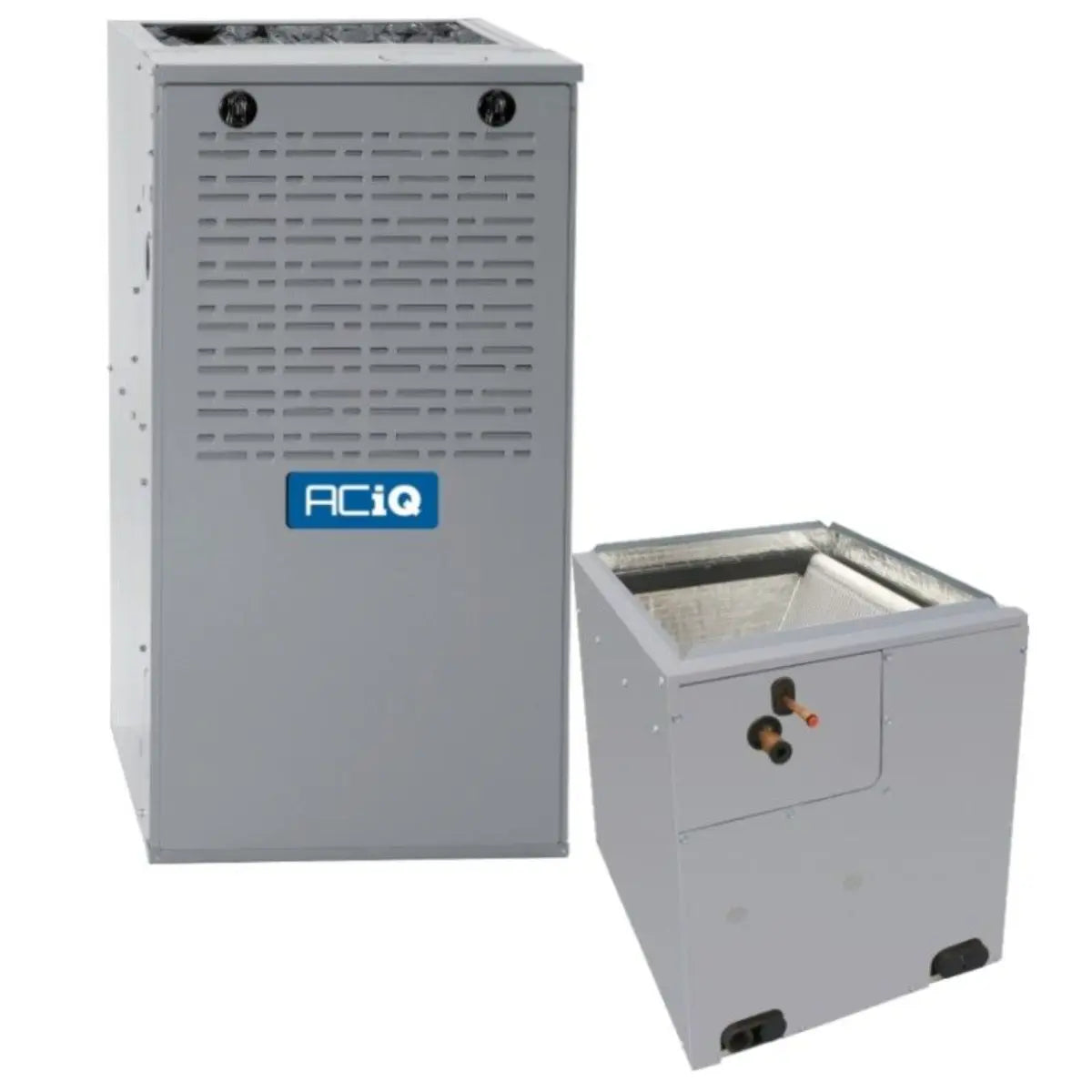

Aciq N80MSN0451714A 44,000 BTU 80% AFUE Furnace and Coil System (2.5 Ton) EVD5X31M17A

Product Description

The ACIQ N80MSN0451714A paired with coil EVD5X31M17A is a matched 2.5 ton furnace and evaporator coil system rated at 44,000 BTU input and 80% AFUE. The multi-positional furnace accepts upflow, downflow, or horizontal installation, uses a multi-speed ECM blower (up to 1215 CFM), direct ignition with a silicon nitride hot surface ignitor, and operates on 115V 1 phase 60 Hz. The vertical cased V-coil includes a factory-installed TXV and sweat connections for R454B refrigerant.

• 44,000 BTU input, 80% AFUE single-stage natural gas furnace; field-convertible to propane with optional LP kit
• Multi-speed ECM blower with maximum 1215 CFM; electrical 115V 1 phase 60 Hz, max breaker 15 Amps
• 2.5 ton vertical cased V-coil with factory-installed TXV, 3/8" liquid line, 3/4" suction line, PBT drain pan, sweat connections; UL listed

Product Highlights

Matched 2.5 ton indoor furnace and coil set for use with existing outdoor condenser; multi-positional furnace and R454B-compatible coil with TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0451714A / EVD5X31M17A

Technical Specifications

• Brand: ACIQ
• Furnace Model: N80MSN0451714A
• Coil Model: EVD5X31M17A
• System Tonnage: 2.5 Ton
• Heating BTU (Input): 44,000 BTU
• AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Width: 17.5"
• Furnace Height: 33 1/3"
• Furnace Depth: 29"
• Blower Motor: Multi-Speed ECM
• Maximum CFM: 1215
• Electrical / Input Voltage: 115V 1 Phase 60 Hz
• Max Breaker Size: 15 Amps
• Burner Stages: Single
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Exhaust Flue Requirement: Metal flue vent piping (80% AFUE)
• Coil Configuration: Vertical cased V-coil (upflow / downflow)
• Coil Width: 17.5"
• Coil Height: 25 13/16"
• Coil Depth: 20 5/8"
• Refrigerant: R454B
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Coil Connection: Sweat
• Coil Drain Pan: Corrosion-resistant PBT
• Certifications: UL Listed (coil)
