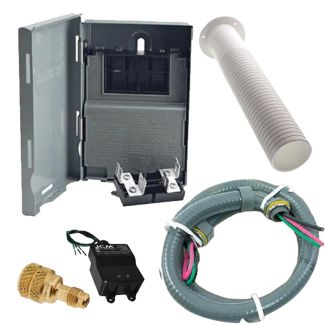

Aciq MSK001 Condenser Installation Kit

Product Description

The ACIQ MSK001 is a condenser installation accessory kit that bundles the core components needed for a complete, code-ready outdoor unit installation. The kit covers electrical connection, overcurrent protection, surge suppression, and refrigerant line wall penetration in a single package. It is designed for use by licensed HVAC technicians installing new condensing units or performing system replacements where all ancillary hardware must be sourced alongside the equipment. Having matched components on the truck reduces callbacks and ensures each part of the installation is addressed before startup.

This kit is suited for residential and light-commercial split-system condenser installations where a telescoping wall sleeve is needed to protect refrigerant and electrical lines through an exterior wall. The included non-fused disconnect and surge protector address both NEC disconnect requirements and transient voltage protection at the outdoor unit. The electrical whip bridges the disconnect to the condenser, and the CPS charging adapter supports refrigerant service during commissioning. This combination covers the most common field requirements for a clean, professional condenser rough-in.

Key Features

• 60A non-fused disconnect (SKU 83335) meets NEC within-sight disconnect requirements at the outdoor unit
• Surge protector (SKU ICM517) provides transient voltage protection for condenser electronics
• 3/4 inch x 6-foot electrical whip (SKU 84138) connects the disconnect to the condenser
• Telescoping wall sleeve (SKU NFP-75) protects and stabilizes refrigerant and electrical lines through exterior walls
• CPS charging adapter (SKU 87-AD87) supports refrigerant circuit service during installation and commissioning
• All-in-one kit reduces sourcing time for standard condenser installation accessories

Compatibility

Designed as a general-purpose accessory kit for residential and light-commercial split-system condenser installations requiring a disconnect, surge protection, electrical whip, wall sleeve, and refrigerant charging adapter.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with NEC Article 440 and applicable local codes. Shut off power at the main panel before making any electrical connections at the disconnect or condenser. The wall sleeve should be sealed against moisture and air infiltration per building envelope requirements. Refrigerant service using the charging adapter must be performed by an EPA Section 608 certified technician.

Technical Specifications

• Disconnect Rating: 60 amps non-fused
• Electrical Whip Size: 3/4 inches x 6 feet
• Kit Components: Electrical whip, non-fused disconnect, surge protector, CPS charging adapter, telescoping wall sleeve

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: MSK001
