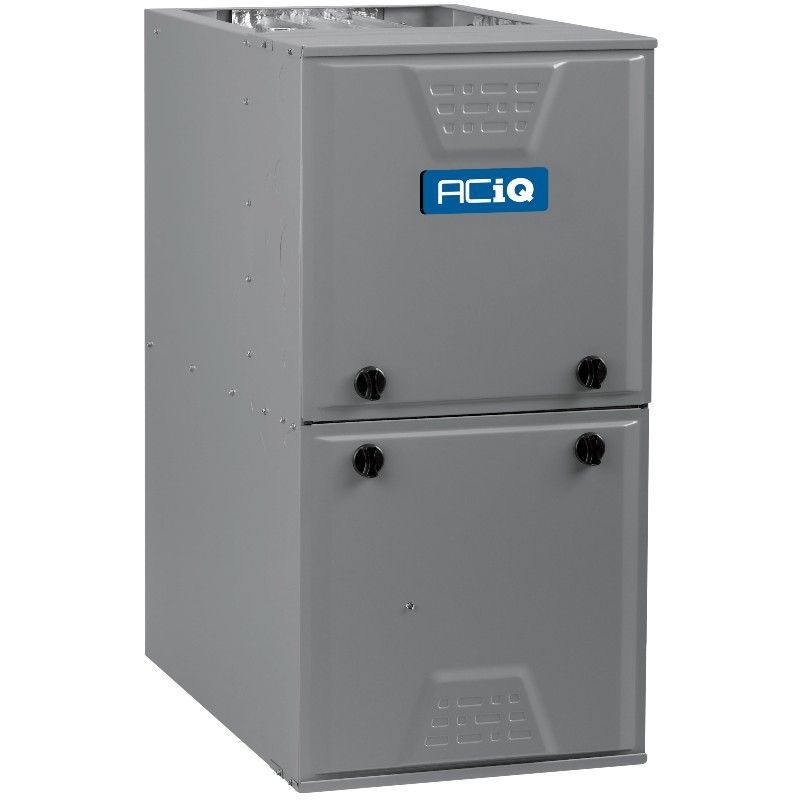

Aciq G97VTN0802120A Variable Speed Two-Stage Gas Furnace 80,000 BTU (21 inches Width) Replaces G96VTN0802120

Product Description

The Aciq G97VTN0802120A is an 80,000 BTU, 97% AFUE natural gas furnace with a variable speed ECM blower and two-stage burner for controlled heating and airflow. It supports upflow, downflow, or horizontal installation and requires plastic/PVC flue venting. Electrical supply is 115 V, 1 phase, 60 Hz, with a maximum airflow of 2110 CFM. The unit is field-convertible to propane with an optional LP conversion kit.

• High efficiency: 80,000 BTU input, 97% AFUE; two-stage burner for staged heat output
• Variable speed ECM blower with up to 2110 CFM for precise airflow control
• Multi-positional installation (upflow, downflow, horizontal); requires plastic/PVC flue; field-convertible to propane with optional LP kit

Product Highlights

80,000 BTU, 97% AFUE natural gas furnace with variable-speed ECM blower, two-stage burner, multi-positional installation, and plastic/PVC vent requirement.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G97VTN0802120A

Technical Specifications

• Manufacturer Part Number: G97VTN0802120A
• Brand: Aciq
• Model / SKU: G97VTN0802120A
• Heating Capacity (BTU): 80,000
• Furnace Efficiency (AFUE): 97%
• Blower Motor: Variable speed ECM
• Maximum Airflow (CFM): 2110
• Burner Stages: Two-stage
• Fuel Type: Natural gas; field-convertible to propane (optional LP conversion kit required)
• Configuration / Installation: Upflow / Downflow / Horizontal (multi-positional)
• Exhaust Flue Requirement: Plastic / PVC
• Electrical (Input Voltage / Phase / Frequency): 115 V, 1 Phase, 60 Hz
• Dimensions (H x W x D): 35 in x 21 in x 29.5 in
• Weight: 156 lb
• AHRI Certificate Number: 213148556
• Energy Star: Yes
• Replaces: G96VTN0802120
• Equivalent Models: Carrier 59TP6B080V21--20; Tempstar F96VTN0802120A; Bryant 926TB60080V21
