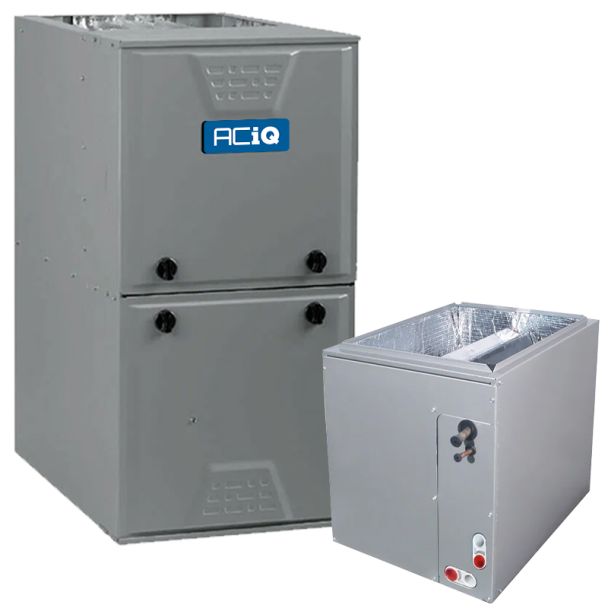

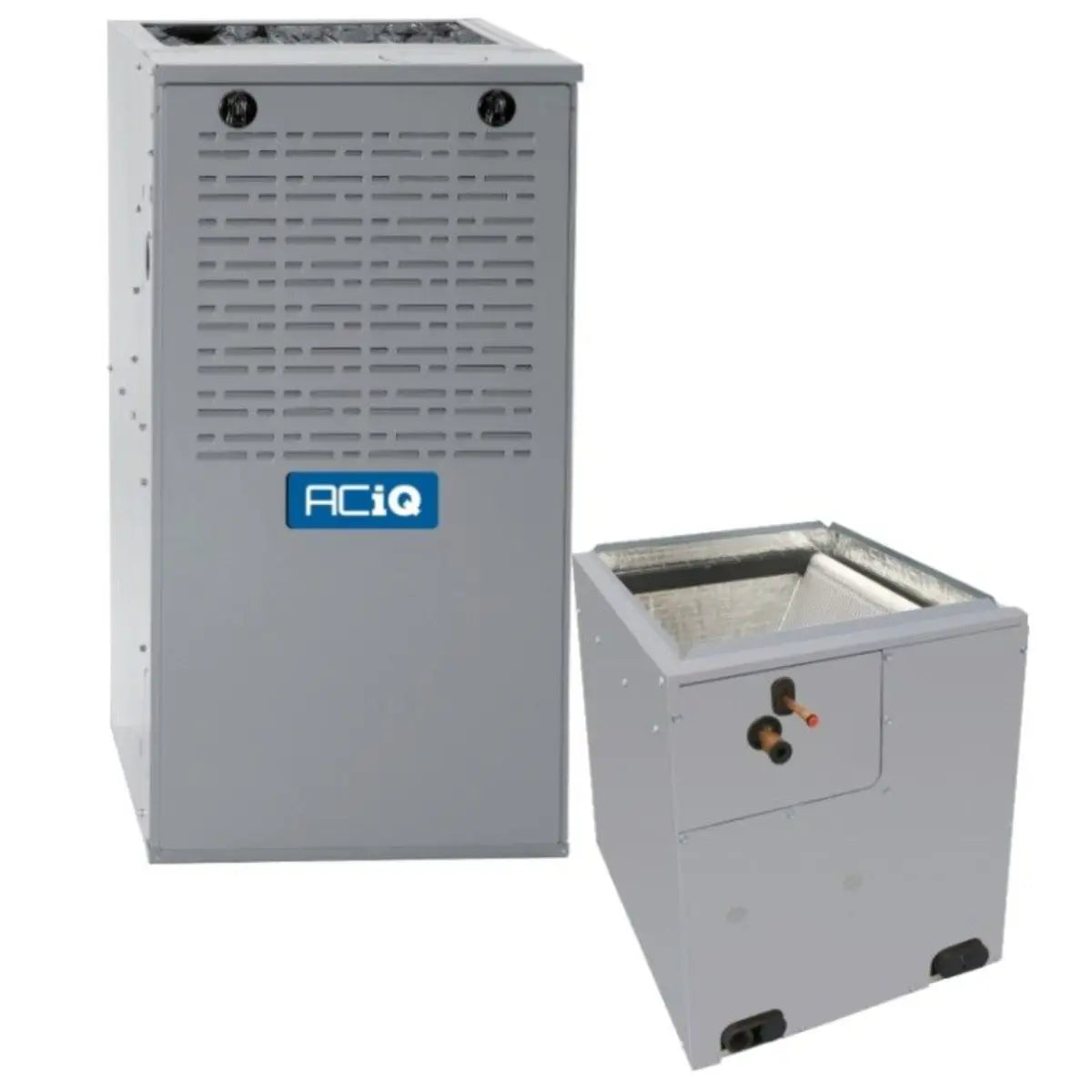

Aciq G96VTN1202422 Furnace and Coil System 120,000 BTU (4 Ton) EAM5X48M24A

Product Description

The ACIQ G96VTN1202422 / EAM5X48M24A is a matched furnace and evaporator coil system that delivers 120,000 BTU heating capacity at 96% AFUE for residential or light commercial installations. The two-stage gas furnace includes a variable-speed blower, onboard diagnostics, and field-convertible propane capability; the 4-ton multi-positional cased coil has a factory-installed TXV and is charged for R454B refrigerant. The system supports upflow, downflow, or horizontal installation and requires PVC/plastic flue venting.

• Two-stage gas furnace with variable-speed blower and onboard diagnostics; 120,000 BTU, 96% AFUE.
• 4-ton multi-positional cased evaporator coil with factory-installed TXV, charged for R454B refrigerant.
• Supports upflow, downflow, or horizontal configurations; furnace is field-convertible to propane and requires PVC/plastic flue.

Product Highlights

Matched ACIQ furnace and coil package; 120,000 BTU, 96% AFUE; 4-ton multi-positional coil with TXV and R454B compatibility.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN1202422 / EAM5X48M24A

Technical Specifications

• Brand: ACiQ
• Model / MPN: G96VTN1202422 / EAM5X48M24A
• Furnace SKU: G96VTN1202422
• Coil SKU: EAM5X48M24A
• Included Components: Furnace and evaporator cased coil (matched system)
• Heating Capacity: 120,000 BTU
• Efficiency (AFUE): 96%
• Tonnage: 4 Ton
• Furnace Blower Motor: Variable speed
• Burner Stages: Two
• Maximum CFM: 2190
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Convertible to Propane: Yes (optional LP kit required)
• Input Voltage: 120 V, 1 Phase, 60 Hz
• Configuration / Mounting: Upflow / Downflow / Horizontal (multi-positional)
• Exhaust Flue Requirement: Plastic / PVC
• Coil Refrigerant: R454B
• Coil Style: A-Coil (cased)
• Coil Configuration: Multi-positional
• TXV Included: Factory-installed TXV kit
• Coil Connection: Sweat
• Coil Liquid Line: 3/8"
• Coil Suction Line: 7/8"
• Furnace Dimensions (HxWxD): 35" x 24.5" x 29.5"
• Furnace Weight: 190.00 lbs
• Coil Dimensions (HxWxD): 35" x 24.5" x 20.625"
• Coil Weight: 90.50 lbs
• AHRI Certificate Number: 213148568
• Certification: UL Listed
• Energy Star: Yes
• Coil Replaces: EAM4X48L24A
• Furnace Equivalent Models: Carrier 59TP6B120V24--22; Tempstar F96VTN1202422A; Bryant 926TB60120V24
• Coil Equivalent Models: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
