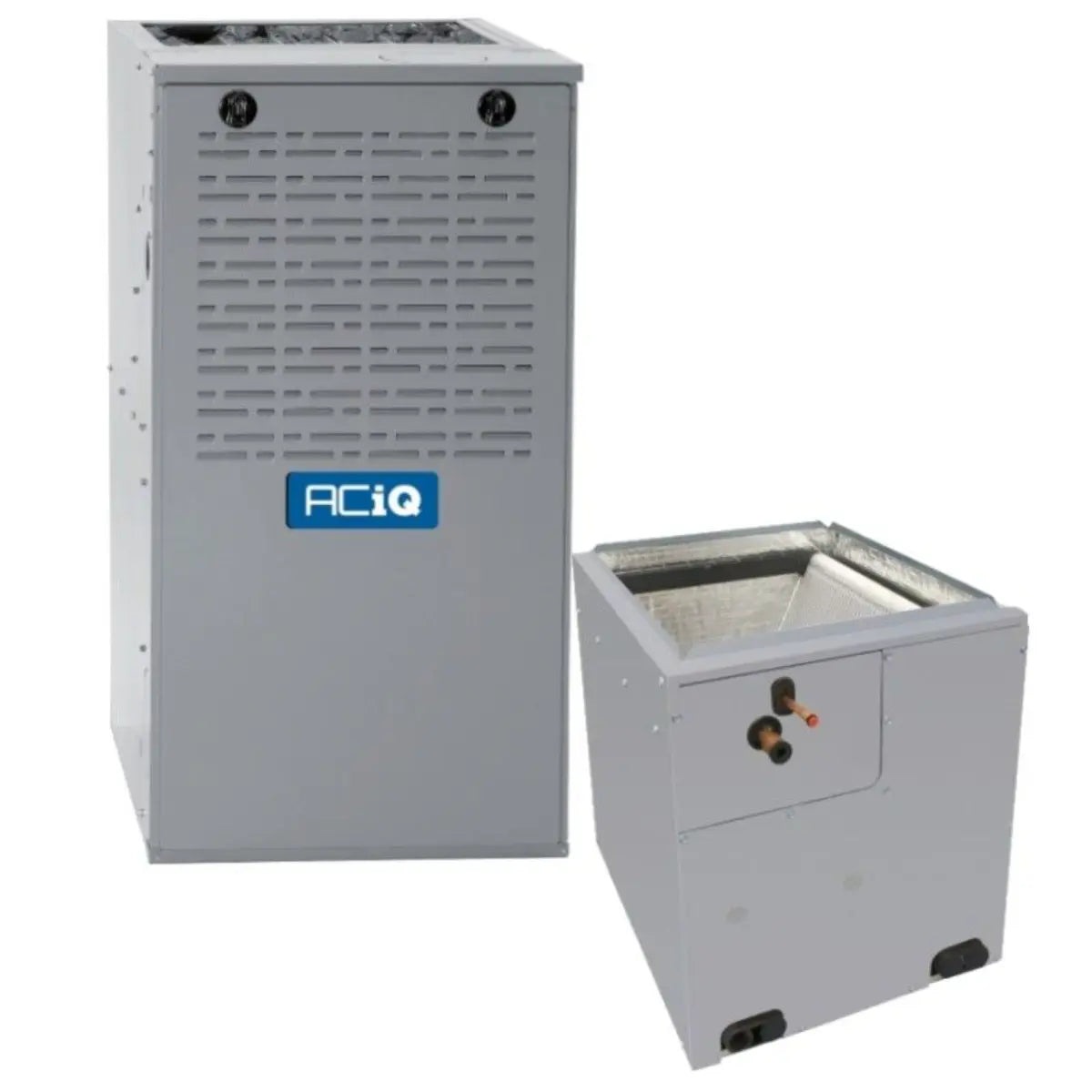

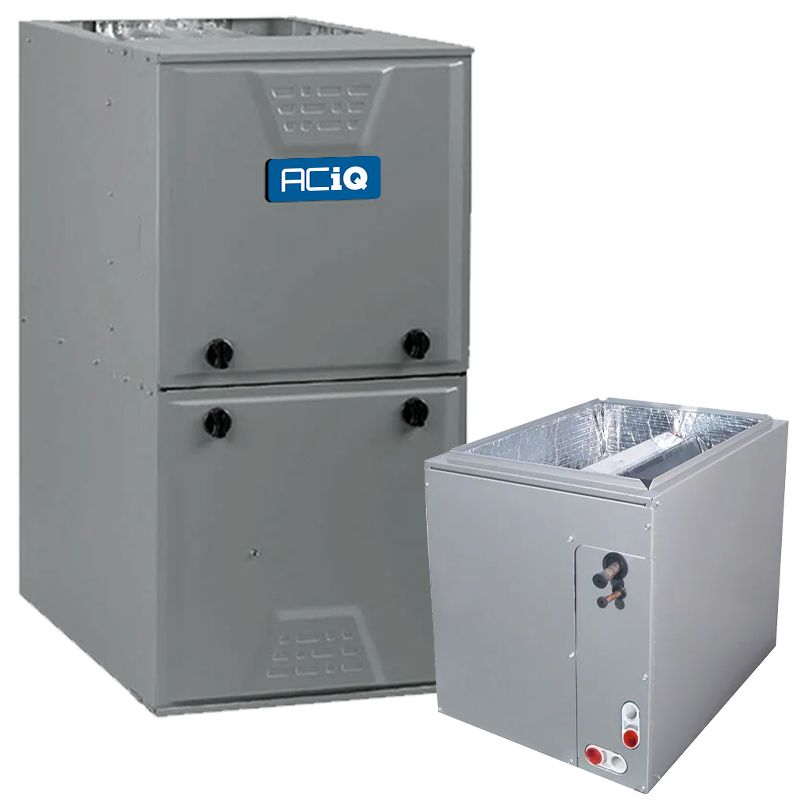

Aciq G96VTN0801716 / EAM5X19M17A Furnace and Coil System 80,000 BTU (1.5 Ton) Replacement Carrier 59TP6B080V17--16

Product Description

The ACIQ G96VTN0801716 / EAM5X19M17A is a matched furnace and evaporator coil system featuring an 80,000 BTU two-stage natural gas furnace at 96% AFUE and a 1.5 ton multi-positional cased evaporator coil with a factory-installed TXV. The furnace includes a variable speed blower, onboard self-diagnostics, upflow/downflow/horizontal installation and requires plastic/PVC venting. The coil is compatible with AC-only or heat pump condensers and uses R454B refrigerant.

• Two-stage 80,000 BTU furnace with 96% AFUE, variable speed blower and maximum 1655 CFM
• 1.5 ton multi-positional A-coil with factory-installed TXV, R454B refrigerant, sweat connections (3/8" liquid, 5/8" suction)
• Multi-positional installation; field-convertible to propane with optional LP kit; 120 V, 1 Phase, 60 Hz; plastic/PVC exhaust flue required

Product Highlights

Matched 80,000 BTU furnace and 1.5 ton multi-positional evaporator coil with factory TXV

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN0801716 / EAM5X19M17A

Technical Specifications

• Brand: ACIQ
• Model / MPN: G96VTN0801716 / EAM5X19M17A
• Furnace SKU: G96VTN0801716
• Coil SKU: EAM5X19M17A
• Furnace Input BTU: 80,000
• Furnace Output BTU: 76,800
• Furnace Efficiency (AFUE): 96%
• Maximum CFM: 1655
• Blower Motor: Variable speed
• Burner Stages: Two
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Electrical: 120 V, 1 Phase, 60 Hz
• Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions (HxWxD): 35 in x 17.5 in x 29.5 in
• Furnace Weight: 147.00 lbs
• Coil Tonnage: 1.5 Ton
• Coil Configuration: Multi-positional
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Coil Style: A-Coil (cased evaporator coil)
• Coil Connection: Sweat
• Coil Dimensions (HxWxD): 25 13/16 in x 17 1/2 in x 20 5/8 in
• Coil Weight: 66.50 lbs
• AHRI Certificate Number: 213148554
• Certifications: Coil: UL Listed; Furnace: Energy Star
• Equivalents: Furnace: Carrier 59TP6B080V17--16; Tempstar F96VTN0801716A; Bryant 926TB48080V17. Coil: Carrier CAPMP1814ALA
