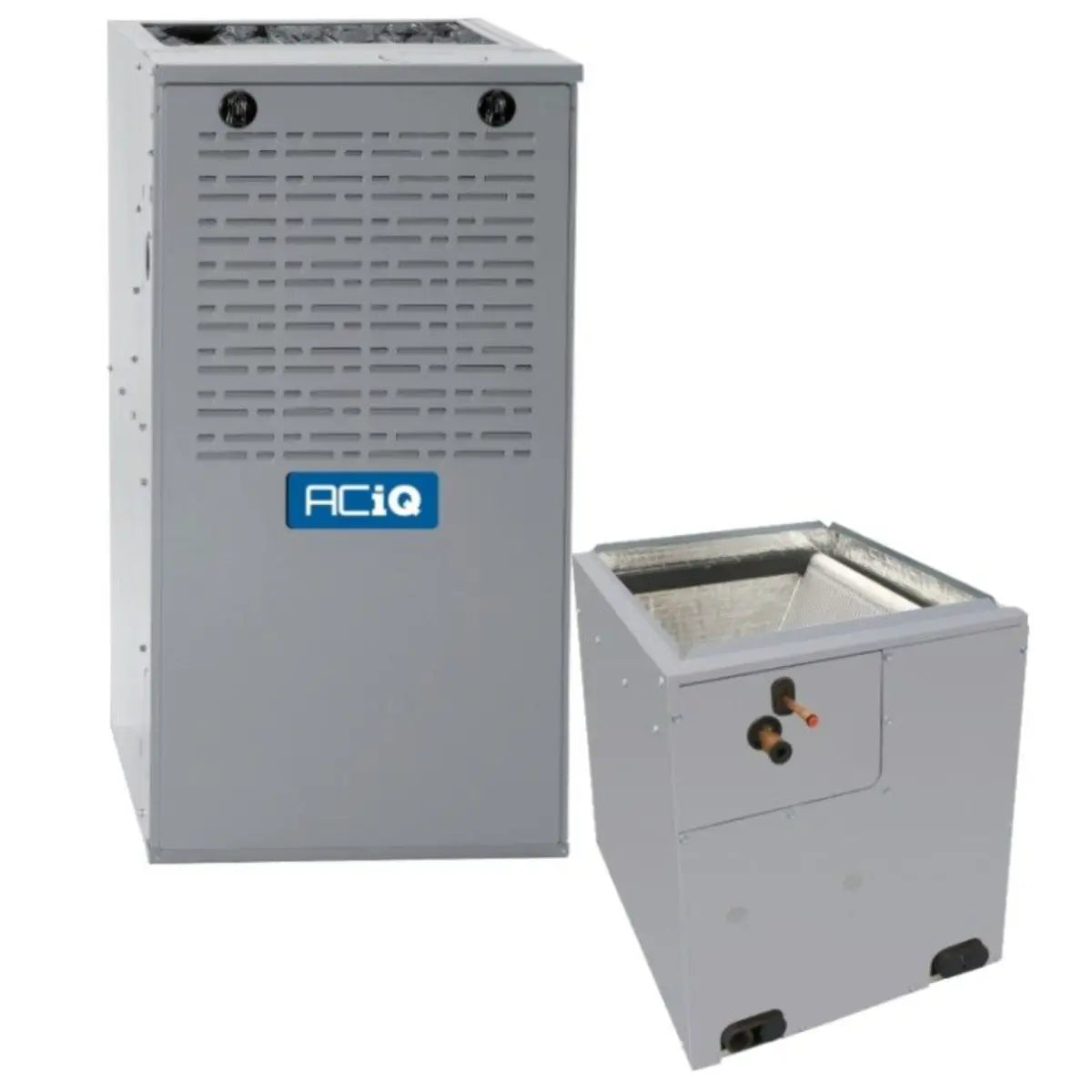

Aciq G96VTN0801716 2.5 Ton 96% AFUE 80,000 BTU Furnace and Coil System (Upflow/Downflow) EVD5X31M17A

Product Description

The Aciq G96VTN0801716 paired with coil EVD5X31M17A is a matched 2.5 ton furnace and evaporator coil system that provides 80,000 BTU input heating at 96% AFUE. The system includes a two-stage natural gas furnace with a variable speed ECM blower, multi-positional cabinet (upflow/downflow/horizontal), and a vertical cased V-coil with factory-installed TXV and corrosion-resistant PBT drain pan rated for R454B refrigerant.

• Furnace: 80,000 BTU input, 96% AFUE, two-stage burner, variable speed blower, 120 V 1 ph 60 Hz electrical
• Coil: 2.5 ton vertical cased V-coil, 17.5" width, factory-installed TXV, sweat connections, 3/8" liquid and 3/4" suction lines, rated for R454B
• Installation and compatibility: multi-positional furnace (upflow/downflow/horizontal), designed as a matched indoor set for use with a compatible outdoor condenser

Product Highlights

Matched 2.5 ton furnace and cased V-coil with factory TXV and R454B compatibility

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN0801716 / EVD5X31M17A

Technical Specifications

• Brand: Aciq
• Model / MPN (Furnace): G96VTN0801716
• Model / MPN (Coil): EVD5X31M17A
• Tonnage: 2.5 Ton
• Heating Capacity (Input BTU): 80,000 BTU
• AFUE: 96%
• Burner Stages: Two
• Blower Motor: Variable speed (ECM)
• Maximum CFM: 1655
• Furnace Electrical / Input Voltage: 120 V, 1 Phase, 60 Hz
• Furnace Configuration / Mounting Type: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions (H x W x D): 35" x 17 1/2" x 29 1/2"
• Furnace Weight: 147.00 lbs
• Coil Style: Vertical cased V-coil
• Coil Width: 17 1/2" (17.5")
• Coil Height: 25 13/16"
• Coil Depth: 20 5/8"
• Coil Weight: 46.00 lbs
• Coil Connection Type: Sweat
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Refrigerant (Coil): R454B
• Coil Features: Factory-installed TXV kit; fully insulated cased design; corrosion-resistant PBT drain pan
• Certifications: UL Listed
• AHRI Certificate Number (Furnace): 213148554
