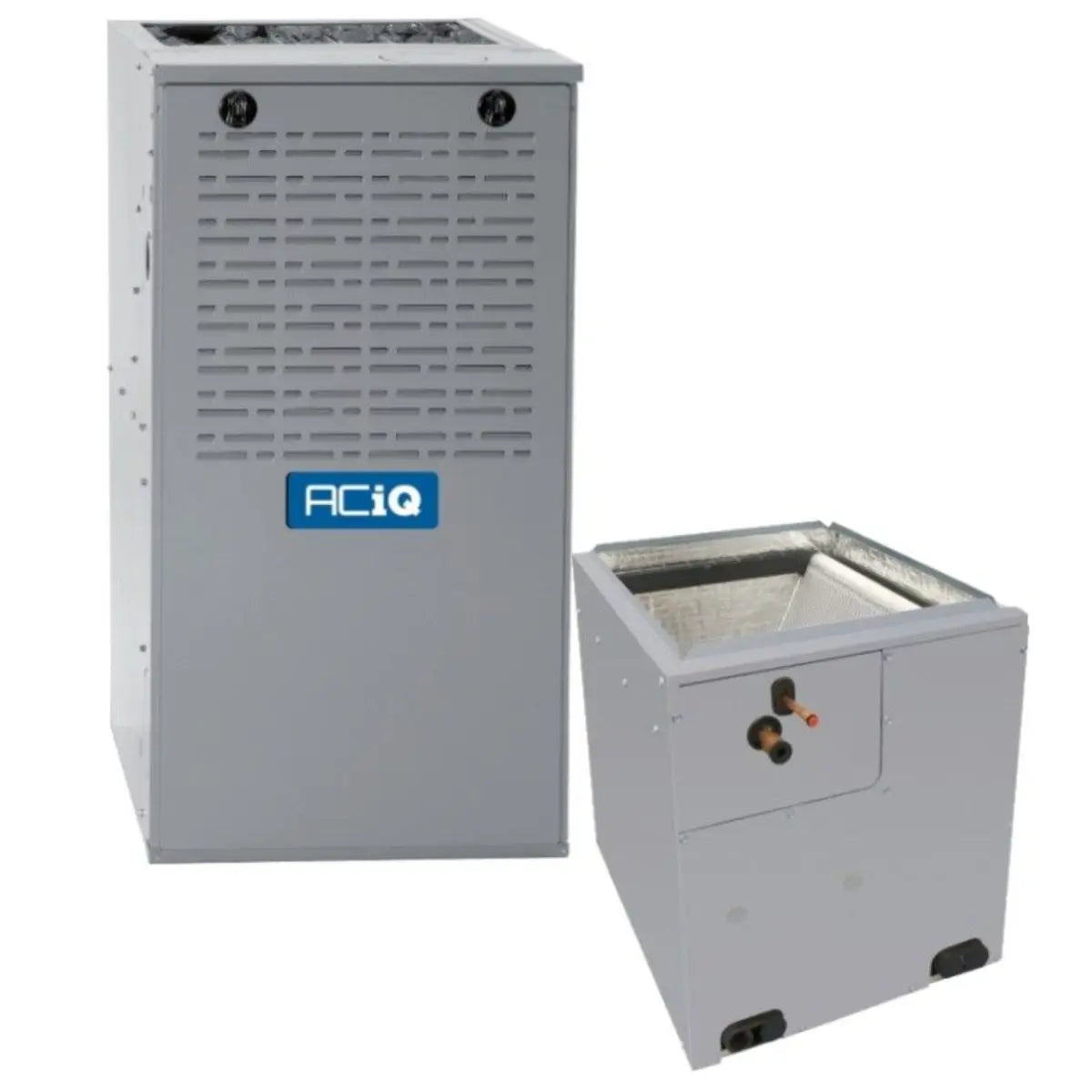

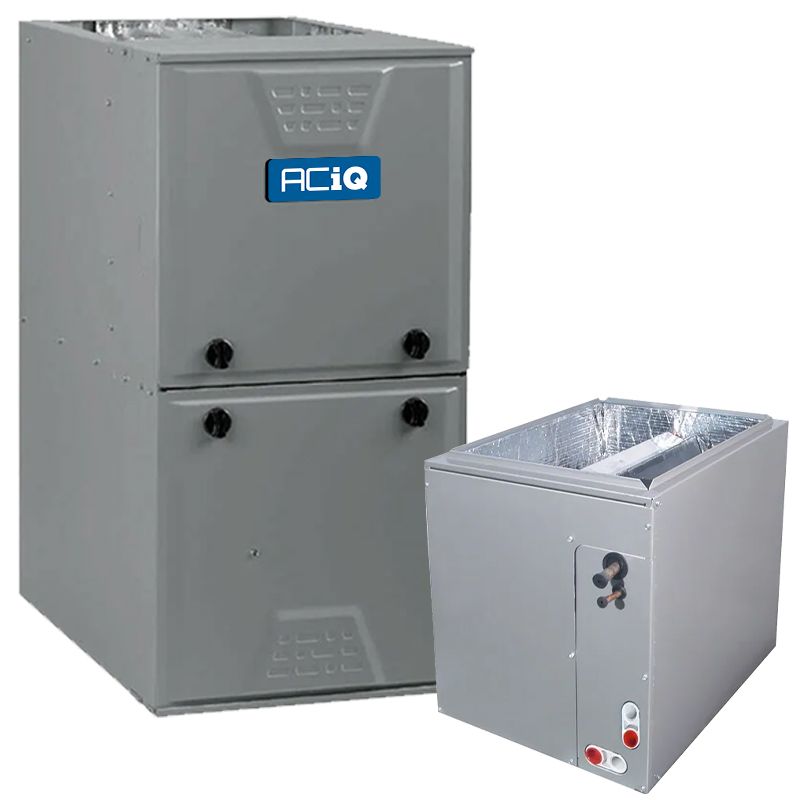

Aciq G96VTN0601716 / EAM5X19M17A 1.5 Ton 96% AFUE 60,000 BTU Furnace and Coil System (Multi-Positional) EAM5X19M17A

Product Description

Aciq G96VTN0601716 / EAM5X19M17A is a matched 1.5 ton furnace and evaporator coil system pairing a 60,000 BTU, 96% AFUE two-stage natural gas furnace with a multi-positional 1.5 ton cased evaporator coil charged for R454B. The furnace uses a variable-speed blower (max 1475 CFM), onboard diagnostics, and is field-convertible to propane with an optional LP kit. The coil includes a factory-installed TXV and sweat connections (3/8" liquid, 5/8" suction).

• 96% AFUE two-stage 60,000 BTU furnace with variable-speed blower and maximum 1475 CFM
• 1.5 ton multi-positional cased evaporator coil with factory-installed TXV; refrigerant R454B; 3/8" liquid and 5/8" suction connections
• Multi-positional installation (upflow/downflow/horizontal), requires plastic/PVC venting; field-convertible to propane with optional LP kit

Product Highlights

Matched indoor furnace and coil package for retrofit applications; multi-positional, Energy Star rated, factory TXV-equipped coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN0601716 / EAM5X19M17A

Technical Specifications

• Brand: ACiQ
• Model / MPN: G96VTN0601716 / EAM5X19M17A
• Furnace SKU: G96VTN0601716
• Coil SKU: EAM5X19M17A
• Heating Capacity: 60,000 BTU
• Furnace Efficiency (AFUE): 96%
• Tonnage: 1.5 Ton
• Blower Motor: Variable Speed
• Maximum CFM: 1475
• Burner Stages: Two
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Input Voltage: 120 V, 1 Phase, 60 Hz
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace Weight: 139.00 lbs
• Coil Dimensions (H x W x D): 25 13/16" x 17.5" x 20 5/8"
• Coil Weight: 66.50 lbs
• Combined Weight: 205.50 lbs
• Coil Style: A-Coil (Evaporator cased coil)
• Coil Configuration: Multi-Positional
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Coil Connection: Sweat
• Coil Features: Factory-installed TXV kit
• Coil Certification: UL Listed
• AHRI Certificate Number: 213148548
• Energy Star: Yes
• Certifications: AHRI Certificate Number 213148548; UL Listed
• Equivalents (Furnace): Carrier 59TP6B060V17--14; Tempstar F96VTN0601714A; Bryant 926TB42060V17
• Equivalents (Coil): Carrier CAPMP1814ALA; Tempstar EAM4X18L14A; Bryant CAPMP1814ALA
• Exhaust Flue: Plastic / PVC
