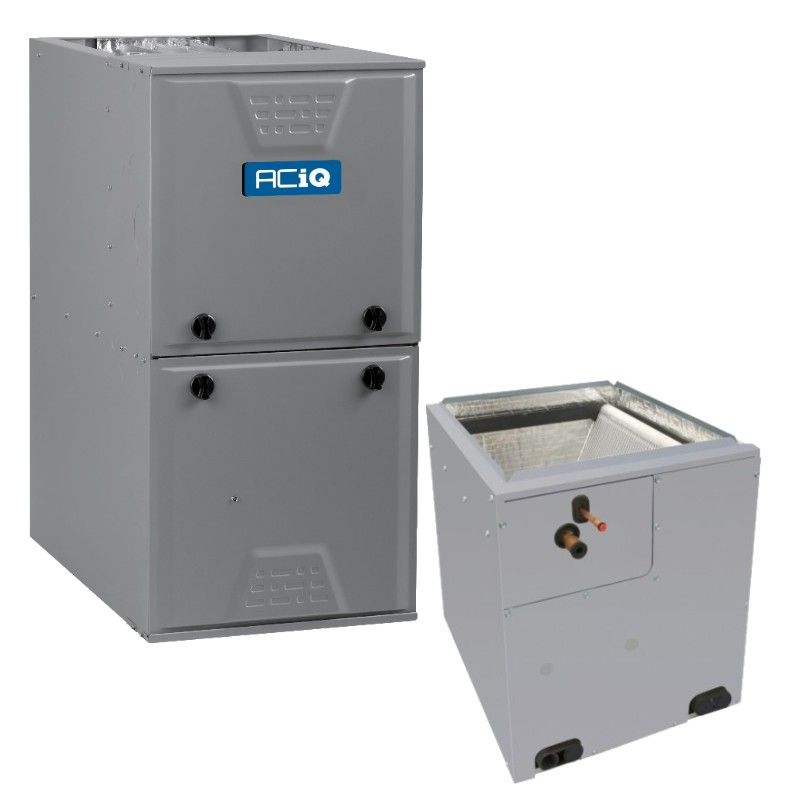

Aciq G96VTN0601716 2.5 Ton 96% AFUE 60,000 BTU Furnace and Coil System (Upflow/Downflow/Horizontal) EVD5X31M17A

Product Description

ACIQ G96VTN0601716 / EVD5X31M17A is a combined 60,000 BTU, 96% AFUE two-stage gas furnace paired with a 2.5 ton vertical evaporator cased V-coil. The furnace features a variable-speed ECM blower (maximum 1475 CFM), multi-positional installation and operates on 120 V, 1 Phase, 60 Hz; it is field-convertible to propane and requires plastic/PVC flue venting for 96% models. The coil includes a factory-installed TXV for R454B, fully insulated V-coil construction, PBT corrosion-resistant drain pan and sweat connections.

• 96% AFUE two-stage gas furnace with variable-speed ECM blower and 60,000 BTU input
• 2.5 ton vertical cased V-coil with factory-installed TXV for R454B, 3/8" liquid and 3/4" suction sweat connections
• Multi-positional installation (upflow/downflow/horizontal), 120 V 1 Ph 60 Hz electrical, requires plastic/PVC flue venting

Product Highlights

Combined 60,000 BTU 96% AFUE furnace and 2.5 ton insulated cased V-coil with factory TXV and multi-positional installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN0601716 / EVD5X31M17A

Technical Specifications

• Package model / MPN: G96VTN0601716 / EVD5X31M17A
• Furnace MPN: G96VTN0601716
• Coil MPN: EVD5X31M17A
• Furnace AFUE / Efficiency: 96%
• Heating BTU (Input): 60,000 BTU
• Tonnage: 2.5 Ton
• Refrigerant: R454B
• Fuel Type: Natural Gas; field-convertible to Propane with optional LP kit
• Burner Stages: Two
• Blower Motor: Variable speed ECM
• Maximum CFM: 1475
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Electrical: 120 V, 1 Phase, 60 Hz
• Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions: 35" H x 17 1/2" W x 29 1/2" D
• Furnace Weight: 139.00 lbs
• Coil Style: Vertical cased V-coil, fully insulated
• Coil Dimensions: 25 13/16" H x 17 1/2" W x 20 5/8" D
• Coil Width: 17 1/2"
• Coil Tonnage: 2.5 Ton
• Coil Connection: Sweat
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Features: Factory-installed TXV kit; fully insulated cased V-coil; PBT corrosion-resistant drain pan
• Coil Certification: UL Listed
• AHRI Certificate Number: 213148548
