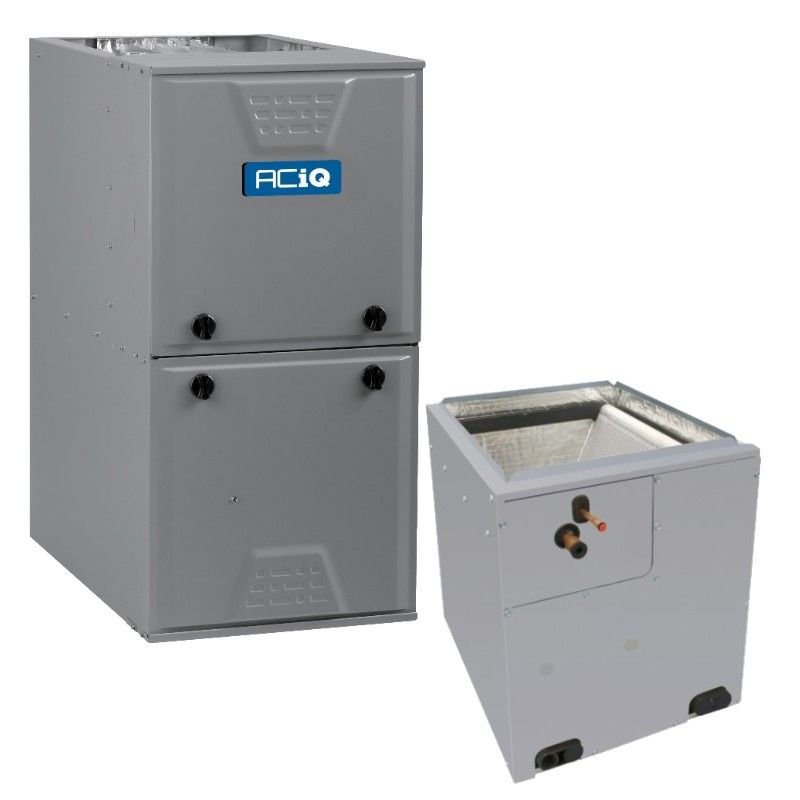

Aciq G96VTN0401712 / EVD5X31M17A 40,000 Btu 2.5 Ton 96% Afue Furnace and Coil System (Upflow/Downflow) Replaces EVD4X

Product Description

The Aciq G96VTN0401712 / EVD5X31M17A is a matched indoor furnace and evaporator coil system combining a 40,000 Btu, 96% Afue two-stage gas furnace with a 2.5 ton vertical cased V-coil charged for R454B. The furnace provides a variable-speed blower, multi-positional installation and 120 V electrical operation with plastic/PVC flue venting requirement. The coil includes a factory-installed TXV, sweat connections, and a corrosion-resistant PBT drain pan.

• Furnace: 40,000 Btu input, 96% Afue, two-stage burner, variable-speed blower, max 1105 Cfm, 120 V 1 phase 60 Hz
• Coil: 2.5 ton vertical cased V-coil, R454B, 17 1/2" width, factory-installed TXV, sweat connections, corrosion-resistant PBT drain pan
• Installation and service: Multi-positional furnace (upflow/downflow/horizontal), field-convertible to propane with optional LP kit, UL listed components, AHRI certificate 213148540

Product Highlights

Matched 40,000 Btu furnace and 2.5 ton R454B cased coil with factory TXV and corrosion-resistant drain pan.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN0401712 / EVD5X31M17A

Technical Specifications

• Brand: Aciq
• MPN: G96VTN0401712 / EVD5X31M17A
• Product ID: 211433
• Heating Capacity (Input Btu): 40,000 Btu
• AFUE: 96%
• Burner Stages: Two
• Blower Motor: Variable speed
• Maximum Cfm: 1105
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Electrical: 120 V, 1 Phase, 60 Hz
• Exhaust Flue Requirement: Plastic / PVC
• AHRI Certificate Number: 213148540
• Furnace Dimensions (H x W x D): 35" x 17 1/2" x 29 1/2"
• Furnace Weight: 133 lb
• Coil Tonnage: 2.5 Ton
• Coil Style: Vertical cased V-coil
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Connection: Sweat
• Coil Width: 17 1/2"
• Coil Height: 25 13/16"
• Coil Depth: 20 5/8"
• Coil Weight: 46 lb
• Coil Features: Factory-installed TXV kit; fully insulated cased design; corrosion-resistant PBT drain pan
• Coil Certification: UL Listed
• Replaces and Equivalent Models: Coil replaces EVD4X; Carrier equivalent CVPVA1814XMC; Tempstar equivalent END4X18L14A; Bryant equivalent CNPVP1814ALA; Furnace equivalents Carrier 59TP6B040V17--12; Tempstar F96VTN0401712A; Bryant 926TB36040V17
