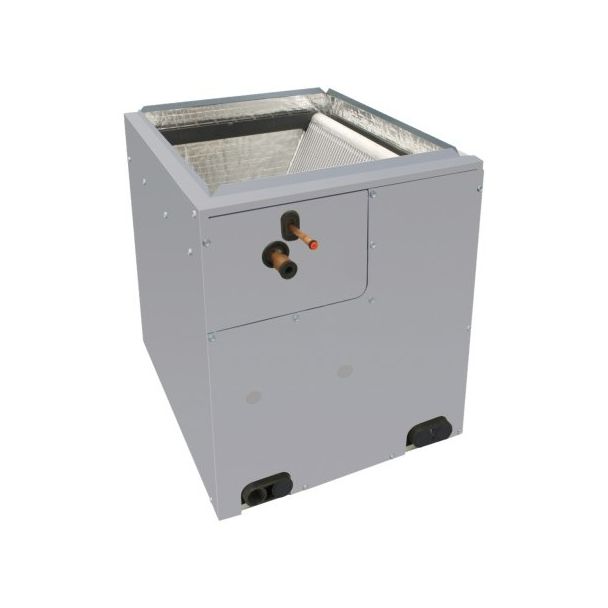

Aciq EVD5X36M17A-COIL00244 Vertical Evaporator Cased Coil 3 Ton (17.5 in Width) Replaces EVD4X

Product Description

The ACIQ EVD5X36M17A-COIL00244 is a 3 ton vertical cased evaporator V-coil designed for upflow and downflow HVAC installations. It is fully insulated and pre-charged with R454B refrigerant, includes a factory-installed TXV kit for refrigerant control, and features a corrosion-resistant PBT drain pan. The coil uses sweat connections and requires a compatible condenser and blower or furnace to operate.

• Fully insulated cased V-coil; factory-installed thermal expansion valve (TXV); pre-charged with R454B refrigerant
• Configured for upflow or downflow installation; sweat connections with 3/8 in liquid and 3/4 in suction line sizes
• Corrosion-resistant Polybutylene Terephthalate (PBT) drain pan; UL listed

Product Highlights

3 ton vertical cased V-coil (17.5 in width), pre-charged R454B, factory TXV, PBT drain pan, upflow/downflow configuration

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EVD5X36M17A-COIL00244

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: EVD5X36M17A-COIL00244
• SKU: EVD5X36M17A-COIL00244
• Tonnage: 3 Ton
• Configuration: Upflow / Downflow
• Refrigerant: R454B (pre-charged)
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Style: V-Coil
• Connection Type: Sweat
• Certification: UL Listed
• Dimensions: 19.4375 in H x 17.5 in W x 20.625 in D
• Weight: 39 lbs
• Drain Pan Material: Polybutylene Terephthalate (PBT)
• Expansion Valve: Factory-installed TXV kit
• Replaces: EVD4X
• Equivalent Models: Carrier CVPVA1814XMC; Tempstar END4X18L14A; Bryant CNPVP1814ALA
