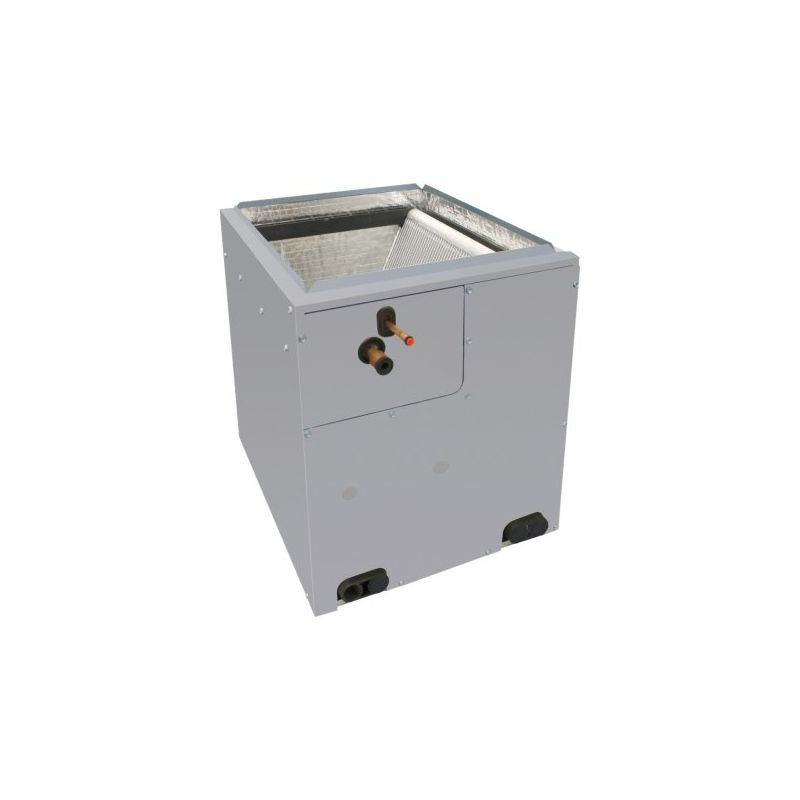

Aciq EVD5X31M17A Vertical cased V-coil 2.5 Ton (17.5 in width) Replaces EVD4X

Product Description

ACIQ EVD5X31M17A is a 2.5 ton vertical cased V-coil evaporator designed for upflow and downflow installations. The unit is factory-equipped with a TXV metering device, supports R-454B refrigerant, and includes a corrosion-resistant PBT drain pan and full insulation for efficient heat transfer. The compact cabinet measures 25 13/16" H x 17 1/2" W x 20 5/8" D.

• Factory-installed TXV metering device for optimized refrigerant control
• Designed for R-454B refrigerant; nominal cooling capacity 31,000 BTU (2.5 ton)
• Fully insulated cased V-coil with PBT corrosion-resistant drain pan; UL listed

Product Highlights

2.5 ton vertical cased V-coil, factory TXV, R-454B compatible, 17.5 in width

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EVD5X31M17A

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: EVD5X31M17A
• Model: EVD5X31M17A
• Tonnage: 2.5 Ton
• Nominal cooling capacity: 31,000 BTU
• Refrigerant: R-454B
• Configuration: Upflow / Downflow
• Style: V-Coil
• Metering device: Factory-installed TXV
• Drain pan material: Polybutylene Terephthalate (PBT)
• Cabinet material: 24-gauge pre-painted steel
• Published range: 1.5 to 5 ton
• Liquid line size: 3/8"
• Suction line size: 3/4"
• Connection type: Sweat
• Height: 25 13/16"
• Width: 17 1/2"
• Depth: 20 5/8"
• Certification: UL Listed
• Replaces: EVD4X
• Equivalent models: Carrier CVPVA1814XMC; Tempstar END4X18L14A; Bryant CNPVP1814ALA
