Aciq evd5x30m14a 2.5 Ton Cased Evaporator Coil R454B

Product Description

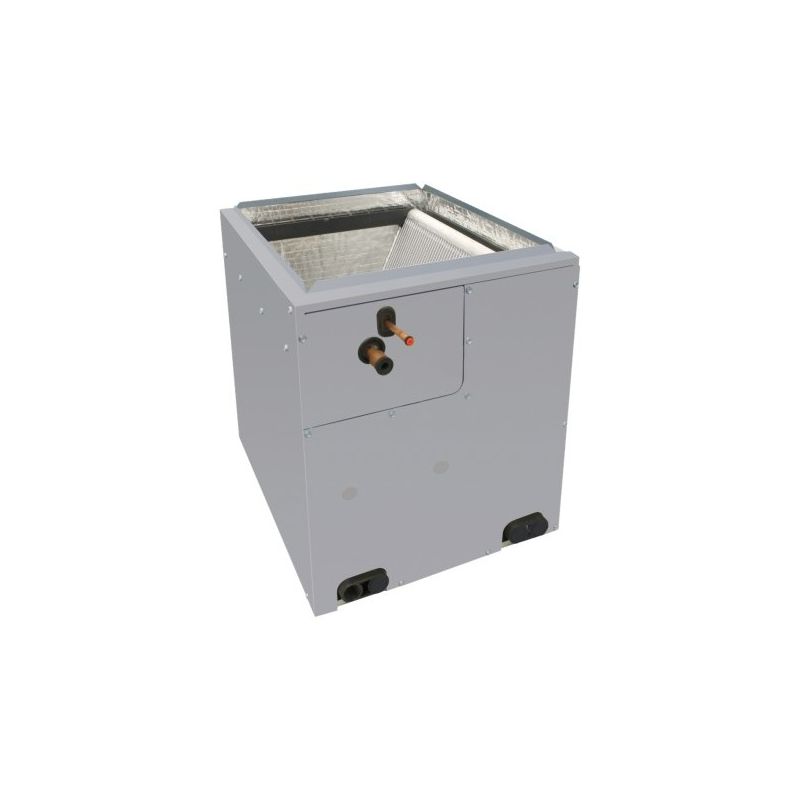

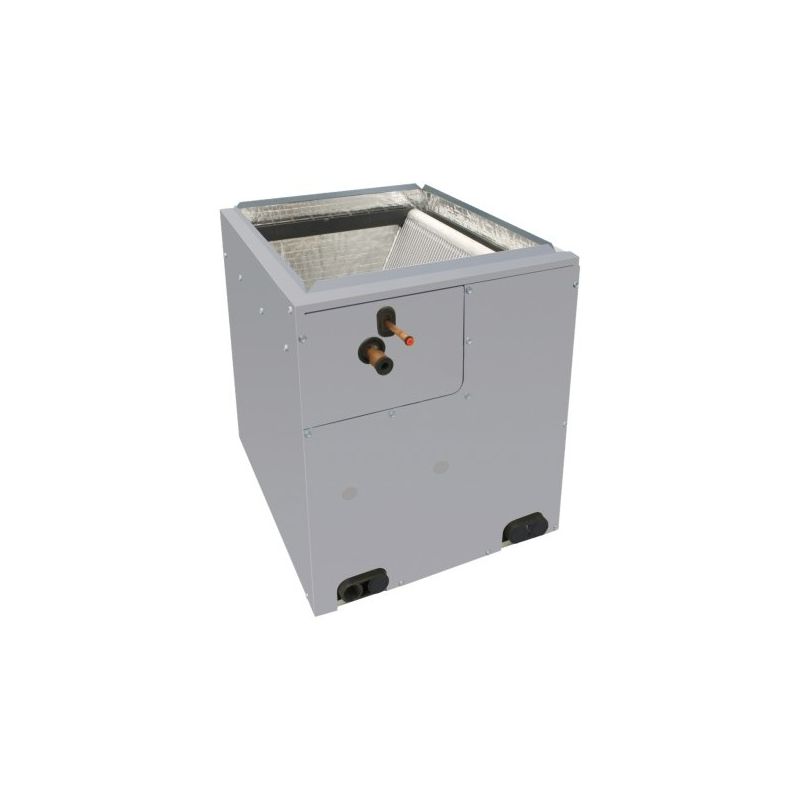

The ACIQ evd5x30m14a is a 2.5-ton vertical cased evaporator coil engineered for split-system air conditioning and heat pump applications using R454B refrigerant. The V-coil design includes an integrated TXV (thermostatic expansion valve), allowing precise refrigerant metering across a range of operating conditions. At 14 inches in width, this cased coil is sized for residential air handlers and furnace-based systems where vertical upflow or downflow configuration is required. Licensed HVAC technicians working with next-generation A2L refrigerant systems will find this coil ready for direct installation without additional valve sourcing.

This coil is intended for residential split-system cooling and heat pump installations where R454B is the specified refrigerant. The 2.5-ton capacity fits common residential load calculations for small to mid-size living spaces. The 14-inch cabinet width is a standard dimension for matching air handlers and furnace cabinets in upflow or downflow configurations. Technicians replacing aging R-22 or R-410A coil assemblies upgrading to A2L-compliant equipment will want to verify cabinet width and coil orientation before ordering.

Key Features

• 2.5-ton cooling capacity suited for residential split-system applications
• R454B refrigerant compatible, meeting current A2L low-GWP requirements
• Integrated TXV for accurate refrigerant metering without a separate valve
• V-coil configuration maximizes surface area within a compact cased cabinet
• 14-inch cabinet width fits standard residential air handler and furnace pairings
• Vertical orientation supports upflow and downflow system layouts

Compatibility

Designed as an OEM-style vertical cased evaporator coil for residential split-system air conditioning and heat pump units rated at 2.5 tons and using R454B refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants per current industry and local code requirements. Shut down the system and recover all refrigerant before disconnecting any refrigerant lines. Verify cabinet width, coil orientation, and drain pan alignment with the mating air handler or furnace before mounting. Follow the equipment manufacturer instructions and applicable mechanical codes for leak testing, evacuation, and refrigerant charging procedures.

Technical Specifications

• Cooling Capacity: 2.5 tons
• Refrigerant Type: R454B
• Coil Configuration: Vertical V-Coil
• Metering Device: TXV (thermostatic expansion valve)
• Cabinet Width: 14 inches
• Cased: Yes

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: evd5x30m14a
