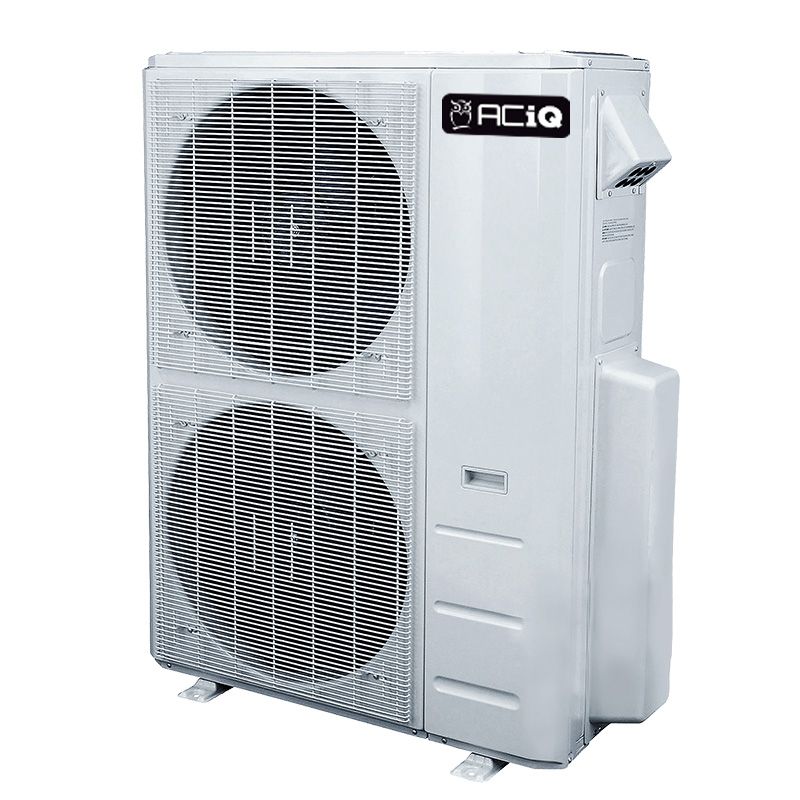

ACIQ ES-55Z-M6C 55,000 BTU Mini Split Heat Pump Condenser - R454B | 230V

Product Description

ACIQ ES-55Z-M6C is a multi-zone mini split heat pump condenser with a capacity of 55,000 BTUs. It allows for the connection of up to six indoor air handlers, making it suitable for diverse home heating and cooling needs. This system operates efficiently in temperatures ranging from negative thirteen degrees Fahrenheit to one hundred twenty-two degrees Fahrenheit for cooling and negative thirteen degrees Fahrenheit to seventy-five degrees Fahrenheit for heating.

• Supports up to 6 air handlers
• High efficiency with 22.0 SEER2
• Gold Fin full-protection coating

Product Highlights

The ACIQ ES-55Z-M6C operates quietly and is designed to self-adjust based on the demand for heating or cooling. It ensures comfort across different areas of your home, allowing custom temperature settings in each zone. Note that this unit requires professional installation for the refrigerant and line connections, as it does not include quick connect line sets.

Product Information

Standard Information

• Brand: ACIQ
• Model Number: ES-55Z-M6C

Technical Specifications

• Cooling BTU: 60000 BTU
• Heating BTU: 60000 BTU
• Weight: 270.28 lbs
• Refrigerant: R454B
• Electrical: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 45A
• Min. Breaker Size: 40A
• Height: 52.48 inches
• Width: 37.48 inches
• Depth: 16.34 inches
• Warranty: 12 year compressor, 7 year parts with online registration
• Energy Star: Yes
