Product Description

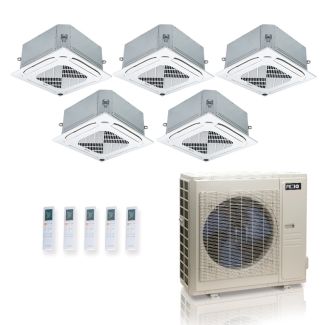

The ACIQ ES-48Z-M6C is a ceiling cassette mini split heat pump system with a cooling capacity of 48,000 BTU and heating capacity of 48,000 BTU. This system operates efficiently with an impressive SEER2 rating of 24. It is designed for use in multi-zone installations and includes five air handlers: 9,000 BTU, 9,000 BTU, 9,000 BTU, 12,000 BTU, and 24,000 BTU units. The compact design is ideal for various spaces while providing optimal climate control.
- Includes five air handlers: 9K, 9K, 9K, 12K, and 24K BTU.
- Environmentally friendly R454B refrigerant.
- Can be operated via a wireless controller, offering convenience.
Product Highlights
This system is suitable for residential and commercial applications. It is easy to install and provides advanced features such as WiFi connectivity for remote access.
Product Information
Standard Information
-
Manufacturer: ACiQ
-
Warranty: 12 year compressor, 7 year parts with online registration
Technical Specifications
-
Cooling BTU: 48,000 BTU
-
Heating BTU: 48,000 BTU
-
Maximum CFM: 4,503
-
Decibel Level: 63 dBA
-
Electrical: 208/230V, 1 Phase, 60Hz
-
Refrigerant: R454B
-
Dimensions (H x W x D): 52.48 inches x 37.48 inches x 16.34 inches
