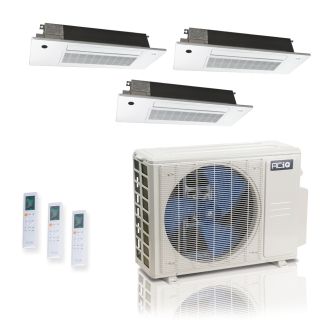

ACIQ ES-36Z-M5C / SCC-12-HH-MB / SCC-18-HH-MB-2 36,000 BTU Mini Split Heat Pump System

Product Description

The ACiQ model ES-36Z-M5C is a 36,000 BTU mini split heat pump system. It provides heating and cooling for multiple zones efficiently. This unit operates on R454B refrigerant and is designed for 230V electrical connections. The system includes both slim ceiling cassette air handlers for a discreet installation and a powerful condenser unit.

• Multi-zone compatibility allowing for versatile installations.
• High efficiency with a SEER2 rating of 24.
• Quiet operation with a decibel level as low as 24 dBA.

Product Highlights

This heat pump system offers reliable performance for residential or commercial applications requiring efficient heating and cooling across multiple zones.

Product Information

Standard Information

• Manufacturer: ACiQ
• Controller: Wireless Included

Technical Specifications

• Cooling BTU: 36,000 BTU
• Heating BTU: 37,000 BTU
• Maximum CFM: 2148 CFM
• Decibel Level (dBA): 64.5
• Refrigerant: R454B
• Electrical: 208/230V, 1 Phase, 60Hz
• Height: 31.89 inches
• Width: 37.24 inches
• Depth: 16.14 inches
