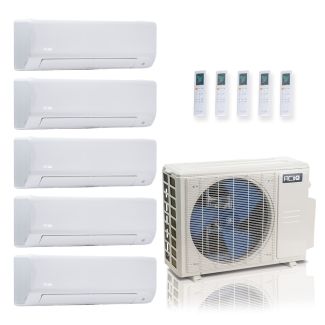

ACIQ ES-36Z-M5C 36000 BTU ACiQ Standard 24 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

Product Description

The ACIQ model ES-36Z-M5C is a 36,000 BTU multi-zone mini split heat pump condenser, designed for versatile heating and cooling solutions. This unit utilizes R454B refrigerant and operates at 230 volts, making it suitable for various applications.

• Energy-efficient with a SEER2 rating of 24
• Quiet operation at a decibel level of 64.5
• Compatible with multiple indoor air handlers

Product Highlights

This mini split system is engineered with a rotary compressor and features a maximum airflow of 2148 CFM. It is designed for both residential and commercial spaces, providing effective heating and cooling across multiple zones.

Product Information

Standard Information

• Manufacturer: ACIQ
• Warranty: 12 year compressor, 7 year parts with online registration

Technical Specifications

• Cooling BTU: 36000
• Heating BTU: 37000
• HSPF2: 9.5
• Refrigerant Charge: 120.63 oz.
• Refrigerant: R454B
• Electrical: 208/230V, 1 Phase, 60 Hz
• Liquid Line: 1/4 inch
• Suction Line: 3/8 inch (4) and 1/2 inch (1)
• Max Breaker Size: 35A
• Ambient Temperature Range: -13 to 122 degrees
• Dimensions: Height 31.89 inches, Width 37.24 inches, Depth 16.14 inches
