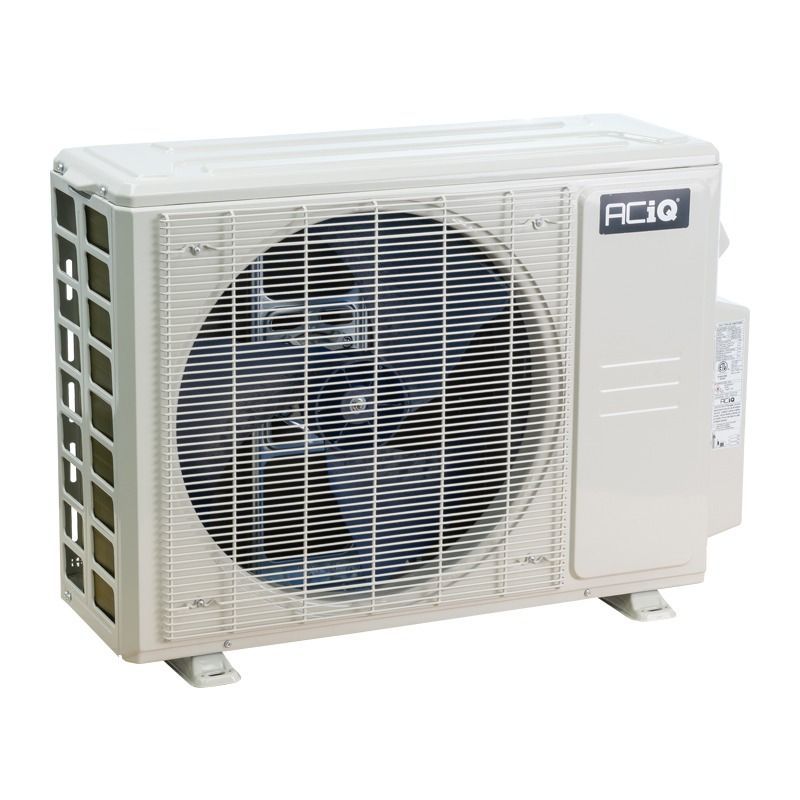

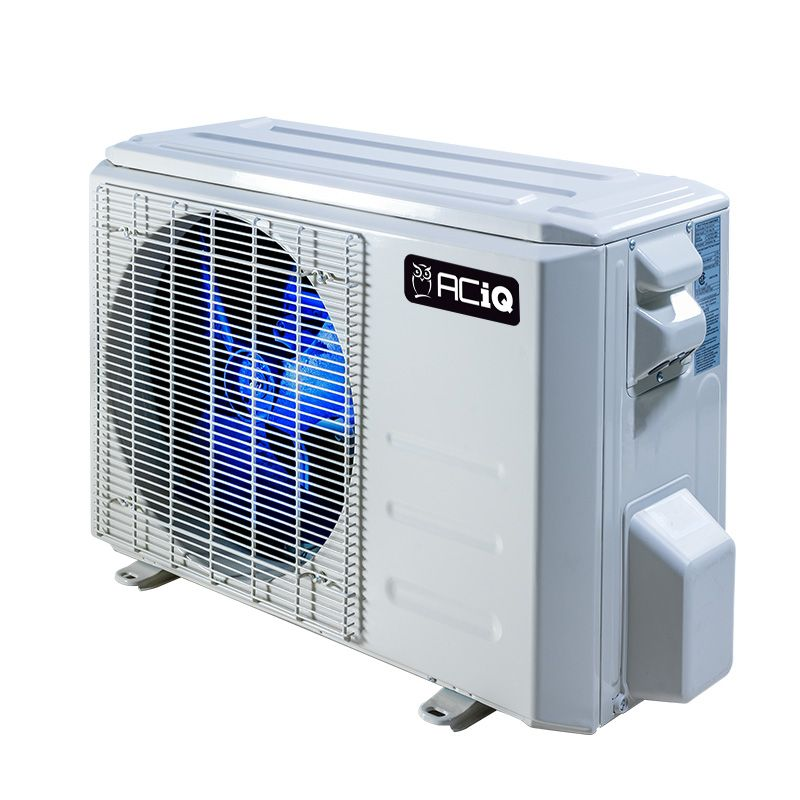

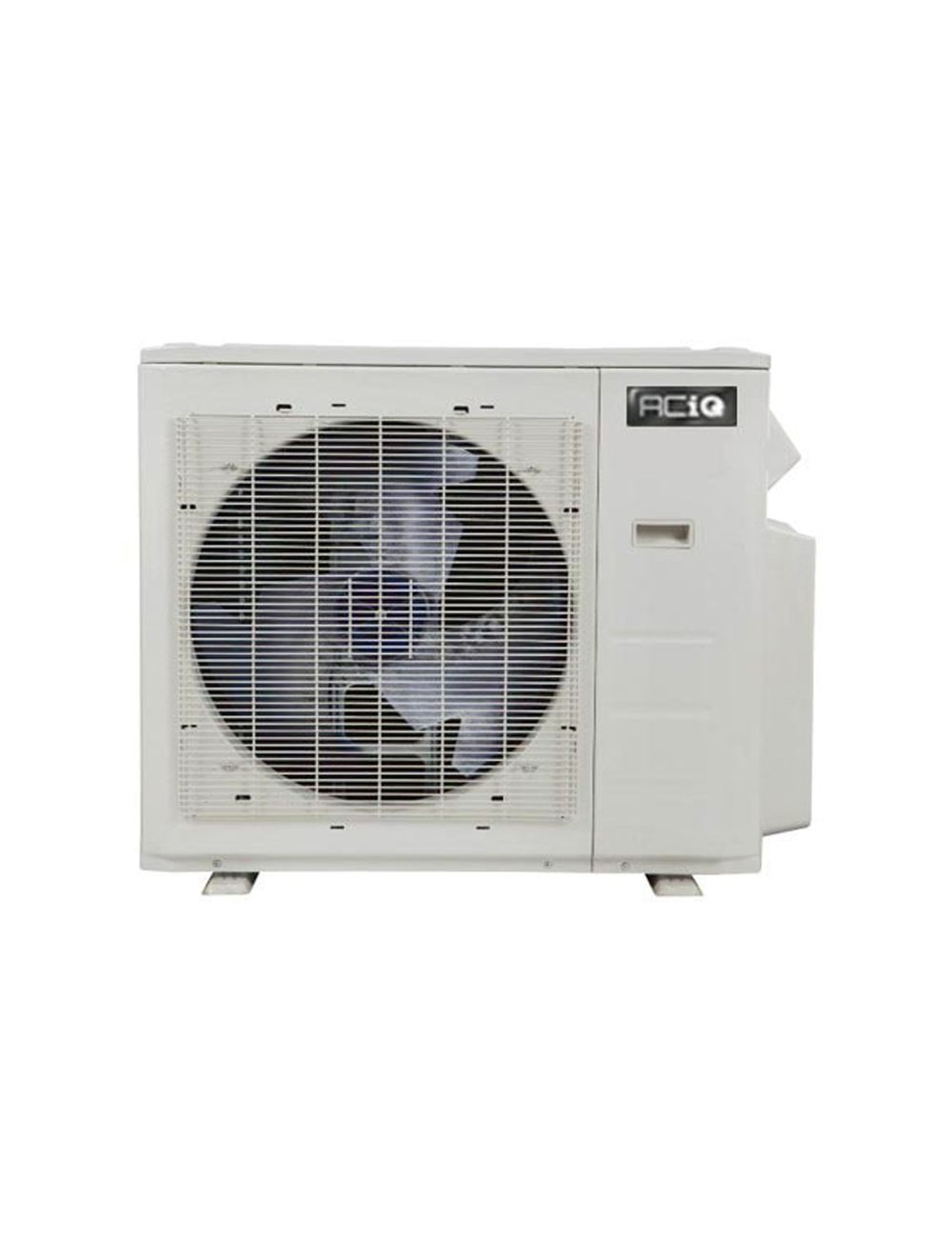

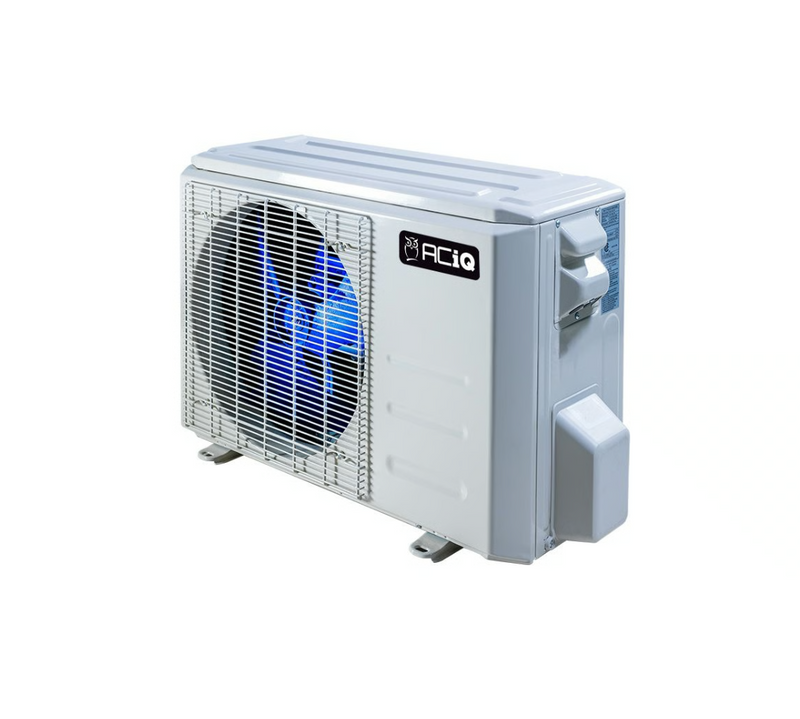

Aciq ES-27Z-M4C Standard Multi-Zone Mini Split Heat Pump Condenser 27000 BTU REPLACEMENT ES-27Z-M3B

Product Description

The ACiQ ES-27Z-M4C is a smart solution for adaptive heating and cooling. This 27000 BTU, 25 SEER2 multi-zone heat pump condenser supports up to 4 air handlers. The adaptive, inverter condenser self-adjusts to maintain your desired temperature in each zone, saving money up front and over the unit's lifetime.

• Designed to function with up to 4 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Efficient heating from -13°F to 75°F outdoor temperatures

Product Highlights

The ES-27Z-M4C condenser offers efficient, multi-zone climate control with a high SEER2 rating and the ability to support multiple air handlers for customized comfort.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C

Technical Specifications

• SKU: ES-27Z-M4C
• Refrigerant Charge: 84.66 oz.
• Weight: 149.690000
• AHRI Certificate Number: 216032379, 216032380
• Brand/Manufacturer: ACiQ
• Replaces: ES-27Z-M3B
• HSPF2: 9.5
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• Maximum CFM: 2131
• Decibel Level (dBA): 61
• Electric Heat: Heat Pump
• Energy Star: Yes
• Refrigerant: R454B
• SEER2 (Efficiency): 25
• Compressor Type: Rotary
• Liquid Line: 1/4" (4)
• Suction Line: 3/8" (3); 1/2" (1)
• Electrical: 208/230V 1 Phase 60 Hz
• Phase: Single Phase
• Max Breaker Size: 25A
• Min. Breaker Size: 23A
• Tonnage: 2 Ton to 2.5 Ton
• BTU/Tonnage: 24,000 BTU/2 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Multi Zone
• Ambient Temperature Range: -13 ~ 122
• Height: 31.89"
• Width: 37.24"
• Depth: 16.14"
• Warranty: 12 year compressor, 7 year parts with online registration
• Available Zones: 3
• Dimensions (H x W x D): 37.24 x 16.14 x 31.89
• Operating Temperature Range: -13°F to 122°F
• Noise Level: 61 dB(A)
• Electrical Requirements: 208/230V, 1Ph, 60Hz
• Breaker Size: 23-25A
• Energy Star Certified: Yes
