Product Description

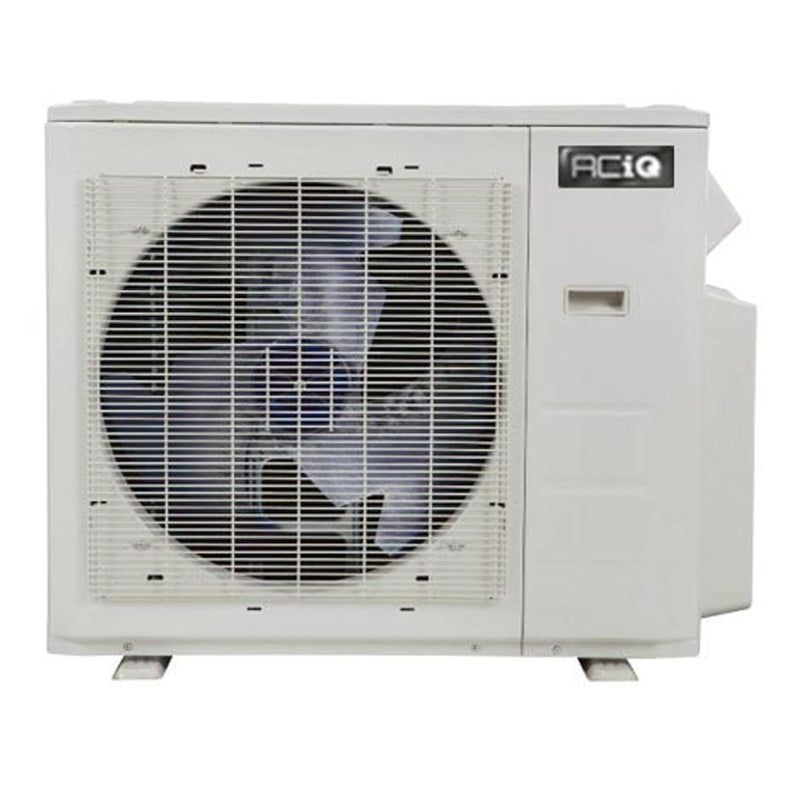

The ACIQ ES-27Z-M4C / ACIQ-18W-HH-MD-2 2-Zone Standard Series System combines high efficiency with advanced climate control. This multi zone condenser is the perfect solution for year-round heating and cooling in up to 2 spaces. Designed to function with up to 4 attached air handlers, it features a self-cleaning condenser and is WiFi capable.
- 27,000 BTU, 25 SEER2 multi zone heat pump condenser
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
Product Highlights
This ACIQ system provides efficient, reliable heating and cooling with quiet operation and smart features for optimal comfort.
Product Information
Standard Information
-
Brand: ACIQ
-
Manufacturer Part Number: ES-27Z-M4C / ACIQ-18W-HH-MD-2
Technical Specifications
-
SKU: ES-27Z-M4C
-
Refrigerant Charge: 84.66 oz.
-
AHRI Certificate Number: 216032379, 216032380
-
Manufacturer: ACiQ
-
Replaces: ES-27Z-M3B
-
HSPF2: 9.5
-
Cooling BTU: 27000 BTU
-
Heating BTU: 27000 BTU
-
Maximum CFM: 2131
-
Decibel Level (dBA): 61
-
Electric Heat: Heat Pump
-
Energy Star: Yes
-
Refrigerant: R454B
-
SEER2: 25
-
Compressor Type: Rotary
-
Liquid Line: 1/4" (4)
-
Suction Line: 3/8" (3); 1/2" (1)
-
Electrical: 208/230V 1 Phase 60 Hz
-
Electric Phase Filter: Single Phase
-
Max Breaker Size: 25A
-
Min. Breaker Size: 23A
-
Tonnage: 2 Ton to 2.5 Ton
-
BTU/Tonnage: 24,000 BTU/2 Ton
-
Mini Split Type: Wall Mounted
-
Zone Compatibility: Multi Zone
-
Ambient Temperature Range: -13 ~ 122
-
Height: 31.89"
-
Width: 37.24"
-
Depth: 16.14"
-
Number of Indoor Units: 2
-
Outdoor Unit: ES-27Z-M4C
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Air Flow (Turbo/H/M/L/Si) (CFM): 635.7 / 500.3 / 359.0 / 294.3 / NA
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Noise Level (Turbo/H/M/L/Si) (dBA): 49.5 / 45.0 / 38.0 / 31.5 / 19.5
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Power Supply: 208/230V,60Hz,1Ph
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Fan Motor RLA: 0.8
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Fan Motor W: 30
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Throttle type (Indoor): N/A
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi EER2: 12.5
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi HSPF2-4: 11.0
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi COP: 3.26
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Rated Capacity: 18000 BTU
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Min/Max Capacity: 8800~19400
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Moisture Removal (L/h): 9.1
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Standard Operating Range (°F/°C): -22~122 (-30～50)
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Cooling Condition: 80℉ DB/67℉ WB
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Heating Condition: 70℉ DB/60℉ WB
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Compressor Type: ROTARY
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Compressor Model: KTM240D46UKT2
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Refrigerant Oil Charge (mL): 620
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Refrigerant Oil: V74
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Outdoor Air Flow (Max) (CFM): 2131
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Outdoor Noise Level (dBA): 61
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Liquid Size: 4 x 6.35mm (4 x 1/4in)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Gas Size: 3 x 9.52mm + 1 x 12.7mm (3 x 3/8in + 1 x 1/2in)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Max. Piping Length for all rooms (ft/m): 262.4 / (80)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Max. Piping Length for one IDU (ft/m): 114.8 / (35)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Max. Height Difference of IDU and ODU (ft/m): 49.2 / (15)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Refrigerant Pre-charged Amount (oz/kg): 84.66 / (2.4)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Refrigearant Precharge Length (ft/m): 24.6 (7.5) x 4
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Additional Charge of Refrigerant (Φ6.35 (1/4") liquid pipe) ((oz/ft)/(g/m)): 0.16 / (15)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Additional Charge of Refrigerant (Φ9.52 (3/8") liquid pipe) ((oz/ft)/(g/m)): 0.32 (30)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Connection Method: Flared
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Power Supply: 208/230V,60Hz,1Ph
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B System MCA: 23
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Connection Wiring: AWG 14-4
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B System MOCP: 25
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Compressor RLA: 12.1
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Outdoor Fan Motor RLA: 1.2
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Outdoor Fan Motor W: 120
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Indoor Fan Motor RLA: /
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Indoor Fan Motor W: /
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B System Power Input @ Cooling (W): 2076 / (500 ~ 2730)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B System Power Input @ Heating (W): 2080 / (500 ~2400)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B EER2: 13
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Cooling Rated Capacity: 27000
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Cooling Min/Max Capacity: 7200~32000
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Cooling Moisture Removal (L/h): 0.8
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Cooling Standard Operating Range (°F/°C): -13~122 / (-25～50)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Rated Cooling Conditions: 95℉ DB/75℉ WB
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating @ 47℉ Rated: 27000
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating @ 47℉ Min/Max Capacity: 8400~29000
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating @ 17℉ Rated (H32): 18400
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating @ 5℉ Rated: Capacity / COP (H42): 19000 / 2
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating @ 5℉ Max: Capacity: 19000
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating Standard Operating Range (°F/°C): -13~75 / (-25～24)
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B Heating Conditions: 47℉ DB/43℉ WB
-
Available Zones: 2
-
ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi SEER2: 21.4
-
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SEER2: 25.0
