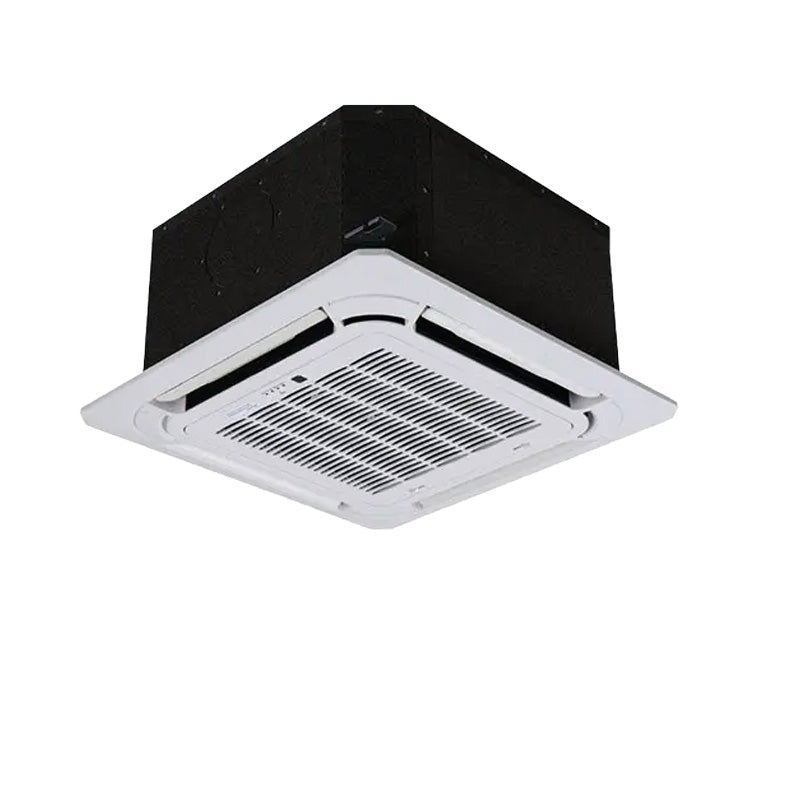

Aciq ES-27Z-M4C / Aciq-09CC-HH-MC-2 Standard 25 SEER2 Dual Zone Ceiling Cassette Mini Split Heat Pump System 27000 BTU replaces ES-27Z-M3B

Product Description

The ACIQ ES-27Z-M4C / ACIQ-09CC-HH-MC-2 is a 27000 BTU standard series system that combines high efficiency with advanced climate control. This multi-zone mini split heat pump system is the perfect solution for year-round heating and cooling in up to 2 spaces. Designed to function with up to 4 attached air handlers, this system saves space and keeps you comfortable.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Quiet operation at even the highest workloads

Product Highlights

This ACiQ system offers efficient heating and cooling with a wide temperature range, quiet operation, and the ability to connect up to 4 air handlers for customized comfort.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-09CC-HH-MC-2

Technical Specifications

• SKU: ES-27Z-M4C
• Refrigerant Charge: 84.66 oz.
• AHRI Certificate Number: 216032379, 216032380
• Manufacturer: ACiQ
• Replaces: ES-27Z-M3B
• HSPF2: 9.5
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• Maximum CFM: Up to 353.20 CFM
• Decibel Level (dBA): As low as 24.0 Decibels
• Electric Heat: Heat Pump
• Energy Star: Yes
• Refrigerant: R454B
• SEER2: 25
• Compressor Type: Rotary
• Liquid Line: 1/4"
• Suction Line: 3/8"
• Electrical: 208/230V, 1 Phase, 60Hz
• Electric Phase Filter: Single Phase
• Max Breaker Size: 25A
• Min. Breaker Size: 23A
• Tonnage: 2 Ton to 2.5 Ton
• BTU/Tonnage: 9,000 BTU/0.75 Ton
• Mini Split Type: Ceiling Cassette
• Zone Compatibility: Multi Zone, Single Zone
• Ambient Temperature Range: -13 ~ 122
• Height: 9.65"
• Width: 22.44"
• Depth: 22.44"
• Controller: Wireless Included
• Product Features: WiFi
• Number of Indoor Units: 2
• AHRI Number Mixed: 216032381
• AHRI Number Ducted: 216032380
• AHRI Number Non-Ducted: 216032379
• SEER2 Mixed: 23 SEER2
• SEER2 Ducted: 21 SEER2
• SEER2 Non-Ducted: 25 SEER2
• Rated Cooling Capacity: 27,000 BTU/hr
• Heating Capacity: 27,000 BTU/hr
• Outdoor Noise Level: 61 dBA
