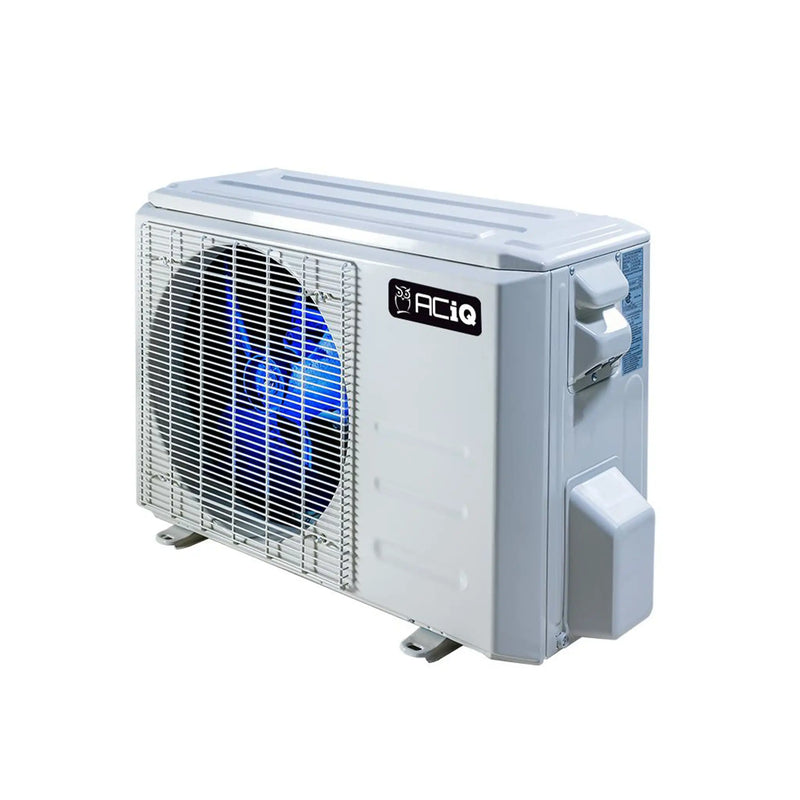

Aciq ES-27Z-M4C / Aciq-06W-HH-MD / Aciq-09W-HH-MD-2 / Aciq-12W-HH-MD 27,000 BTU 25 SEER2 4 Zone Wall Mount Mini Split Heat Pump System - R454B 230V

Product Description

The ACIQ ES-27Z-M4C / ACIQ-06W-HH-MD / ACIQ-09W-HH-MD-2 / ACIQ-12W-HH-MD 4-Zone Standard Series System combines high efficiency with advanced climate control. This system provides year-round heating and cooling for up to 4 spaces. The 27,000 BTU 25 SEER2 multi zone condenser is a smart solution to adaptive heating and cooling at an affordable cost.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures

Product Highlights

This ACIQ multi-zone system offers efficient, adaptive climate control for multiple spaces, featuring a high-efficiency heat pump and user-friendly technology.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-06W-HH-MD / ACIQ-09W-HH-MD-2 / ACIQ-12W-HH-MD

Technical Specifications

• SKU: ES-27Z-M4C
• Refrigerant Charge: 84.66 oz.
• AHRI Certificate Number: 216032379, 216032380
• Manufacturer: ACiQ
• Replaces: ES-27Z-M3B
• HSPF2: 9.5
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• Maximum CFM: 2131
• Decibel Level (dBA): 61
• Electric Heat: Heat Pump
• Energy Star: Yes
• Refrigerant: R454B
• SEER2: 25
• Compressor Type: Rotary
• Liquid Line: 1/4" (4)
• Suction Line: 3/8" (3); 1/2" (1)
• Electrical: 208/230V 1 Phase 60 Hz
• Electric Phase Filter: Single Phase
• Max Breaker Size: 25A
• Min. Breaker Size: 23A
• Tonnage: 2 Ton to 2.5 Ton
• BTU/Tonnage: 24,000 BTU/2 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Multi Zone
• Ambient Temperature Range: -13 ~ 122
• Height: 31.89"
• Width: 37.24"
• Depth: 16.14"
• SKU (6,000 BTU Air Handler): ACIQ-06W-HH-MD
• Weight (6,000 BTU Air Handler): 29.320000
• Manufacturer (6,000 BTU Air Handler): ACiQ
• Product Features (6,000 BTU Air Handler): WiFi
• Cooling BTU (6,000 BTU Air Handler): 6,000 BTU
• Heating BTU (6,000 BTU Air Handler): 6,000 BTU
• Maximum CFM (6,000 BTU Air Handler): Up to 382.6 CFM
• Decibel Level (dBA) (6,000 BTU Air Handler): As low as 19.5 Decibels
• Refrigerant (6,000 BTU Air Handler): R454B
• Liquid Line (6,000 BTU Air Handler): 1/4"
• Suction Line (6,000 BTU Air Handler): 3/8"
• Electrical (6,000 BTU Air Handler): 208/230V, 1 Phase, 60 Hz
• BTU/Tonnage (6,000 BTU Air Handler): 6,000 BTU/0.5 Ton
• Mini Split Type (6,000 BTU Air Handler): Wall Mounted
• Zone Compatibility (6,000 BTU Air Handler): Multi Zone, Single Zone
• Height (6,000 BTU Air Handler): 11.76"
• Width (6,000 BTU Air Handler): 33.40"
• Depth (6,000 BTU Air Handler): 9.18"
• SKU (9,000 BTU Air Handler): ACIQ-09W-HH-MD
• Weight (9,000 BTU Air Handler): 29.980000
• Manufacturer (9,000 BTU Air Handler): ACiQ
• Product Features (9,000 BTU Air Handler): WiFi
• Cooling BTU (9,000 BTU Air Handler): 9,000 BTU
• Heating BTU (9,000 BTU Air Handler): 9,000 BTU
• Maximum CFM (9,000 BTU Air Handler): Up to 441.4 CFM
• Decibel Level (dBA) (9,000 BTU Air Handler): As low as 19.5 Decibels
• Refrigerant (9,000 BTU Air Handler): R454B
• Liquid Line (9,000 BTU Air Handler): 1/4"
• Suction Line (9,000 BTU Air Handler): 3/8"
• Electrical (9,000 BTU Air Handler): 208/230V, 1 Phase, 60 Hz
• BTU/Tonnage (9,000 BTU Air Handler): 9,000 BTU/0.75 Ton
• Mini Split Type (9,000 BTU Air Handler): Wall Mounted
• Zone Compatibility (9,000 BTU Air Handler): Multi Zone, Single Zone
• Height (9,000 BTU Air Handler): 11.76"
• Width (9,000 BTU Air Handler): 33.40"
• Depth (9,000 BTU Air Handler): 9.18"
• SKU (12,000 BTU Air Handler): ACIQ-12W-HH-MD
• Weight (12,000 BTU Air Handler): 29.320000
• Manufacturer (12,000 BTU Air Handler): ACiQ
• Product Features (12,000 BTU Air Handler): WiFi
• Cooling BTU (12,000 BTU Air Handler): 12,000 BTU
• Heating BTU (12,000 BTU Air Handler): 12,000 BTU
• Maximum CFM (12,000 BTU Air Handler): Up to 441.4 CFM
• Decibel Level (dBA) (12,000 BTU Air Handler): As low as 19.5 Decibels
• Refrigerant (12,000 BTU Air Handler): R454B
• Liquid Line (12,000 BTU Air Handler): 1/4"
• Suction Line (12,000 BTU Air Handler): 3/8"
• Electrical (12,000 BTU Air Handler): 208/230V, 1 Phase, 60 Hz
• BTU/Tonnage (12,000 BTU Air Handler): 12,000 BTU/1 Ton
• Mini Split Type (12,000 BTU Air Handler): Wall Mounted
• Zone Compatibility (12,000 BTU Air Handler): Multi Zone, Single Zone
• Height (12,000 BTU Air Handler): 11.76"
• Width (12,000 BTU Air Handler): 33.40"
• Depth (12,000 BTU Air Handler): 9.18"
• Electric Heat (6,000 BTU Air Handler): Heat Pump
• Electric Heat (9,000 BTU Air Handler): Heat Pump
• Electric Heat (12,000 BTU Air Handler): Heat Pump
