Aciq ES-27Z-M4C 27K BTU 25 SEER2 Mini Split 2-Zone Slim Ceiling Cassette R454B (18+18) SCC-18-HH-MB-2

Product Description

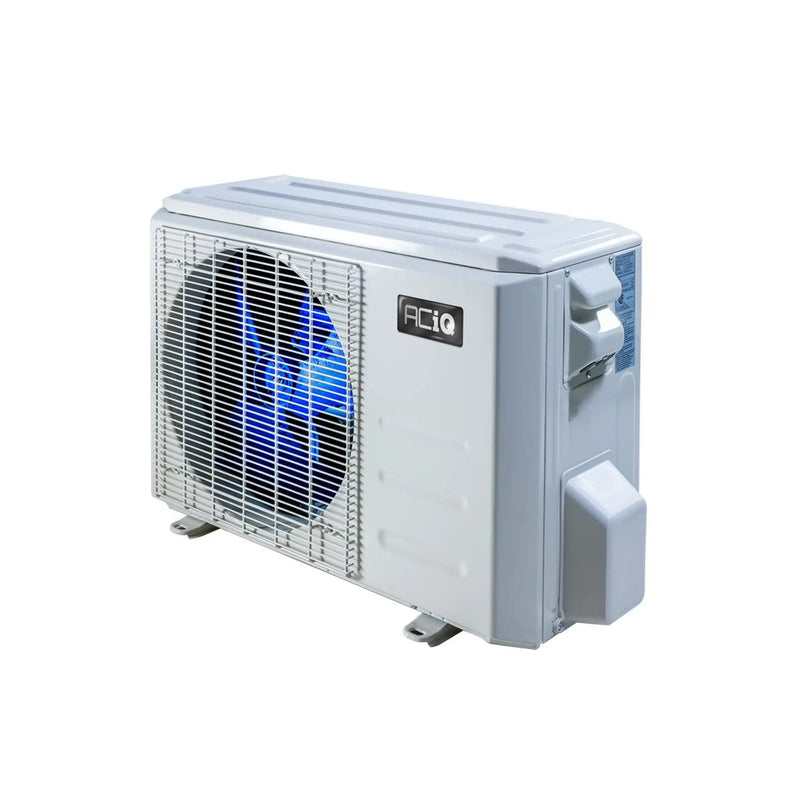

The ACIQ ES-27Z-M4C mini split system offers an adaptive heating and cooling solution. This multi-zone heat pump condenser features 27,000 BTU and 25 SEER2, designed to function with up to 4 attached air handlers. The SCC-18-HH-MB air handler provides high-efficiency heating and cooling with a one-way air delivery system.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Narrow profile fits between 16 inch-on-center joists

Product Highlights

This ACIQ mini split system provides efficient, multi-zone climate control with a slim ceiling cassette design for easy installation and a sleek appearance.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / SCC-18-HH-MB-2

Technical Specifications

• Brand (Condenser): ACiQ
• SKU (Condenser): ES-27Z-M4C
• Replaces: ES-27Z-M3B
• HSPF2: 9.5
• Cooling BTU (Condenser): 27000 BTU
• Heating BTU (Condenser): 27000 BTU
• Maximum CFM (Condenser): 2131
• Decibel Level (dBA) (Condenser): 61
• Electric Heat (Condenser): Heat Pump
• Energy Star: Yes
• Refrigerant (Condenser): R454B
• SEER2: 25
• Compressor Type (Condenser): Rotary
• Liquid Line (Condenser): 1/4" (4)
• Suction Line (Condenser): 3/8" (3); 1/2" (1)
• Electrical (Condenser): 208/230V 1 Phase 60 Hz
• Max Breaker Size (Condenser): 25 A
• Min. Breaker Size (Condenser): 23 A
• Tonnage (Condenser): 2 Ton to 2.5 Ton
• BTU/Tonnage (Condenser): 27,000 BTU/2.25 Ton
• Zone Compatibility (Condenser): Multi Zone
• Ambient Temperature Range (Condenser): -13 ~ 122
• Height (Condenser): 31.89"
• Width (Condenser): 37.24"
• Depth (Condenser): 16.14"
• Brand (Air Handler): ACiQ
• SKU (Air Handler): SCC-18-HH-MB
• Cooling BTU (Air Handler): 16700 BTU
• Heating BTU (Air Handler): 20000 BTU
• Maximum CFM (Air Handler): 400
• Decibel Level (dBA) (Air Handler): 35
• Electric Heat (Air Handler): Heat Pump
• Refrigerant (Air Handler): R454B
• Liquid Line (Air Handler): 1/4"
• Suction Line (Air Handler): 1/2"
• Electrical (Air Handler): 208/230V 1 Phase 60Hz
• Zone Compatibility (Air Handler): Multi Zone
• Height (Air Handler): 8.98"
• Width (Air Handler): 50.31"
• Depth (Air Handler): 13.19"
• Mini Split Type (Air Handler): Ceiling Cassette
