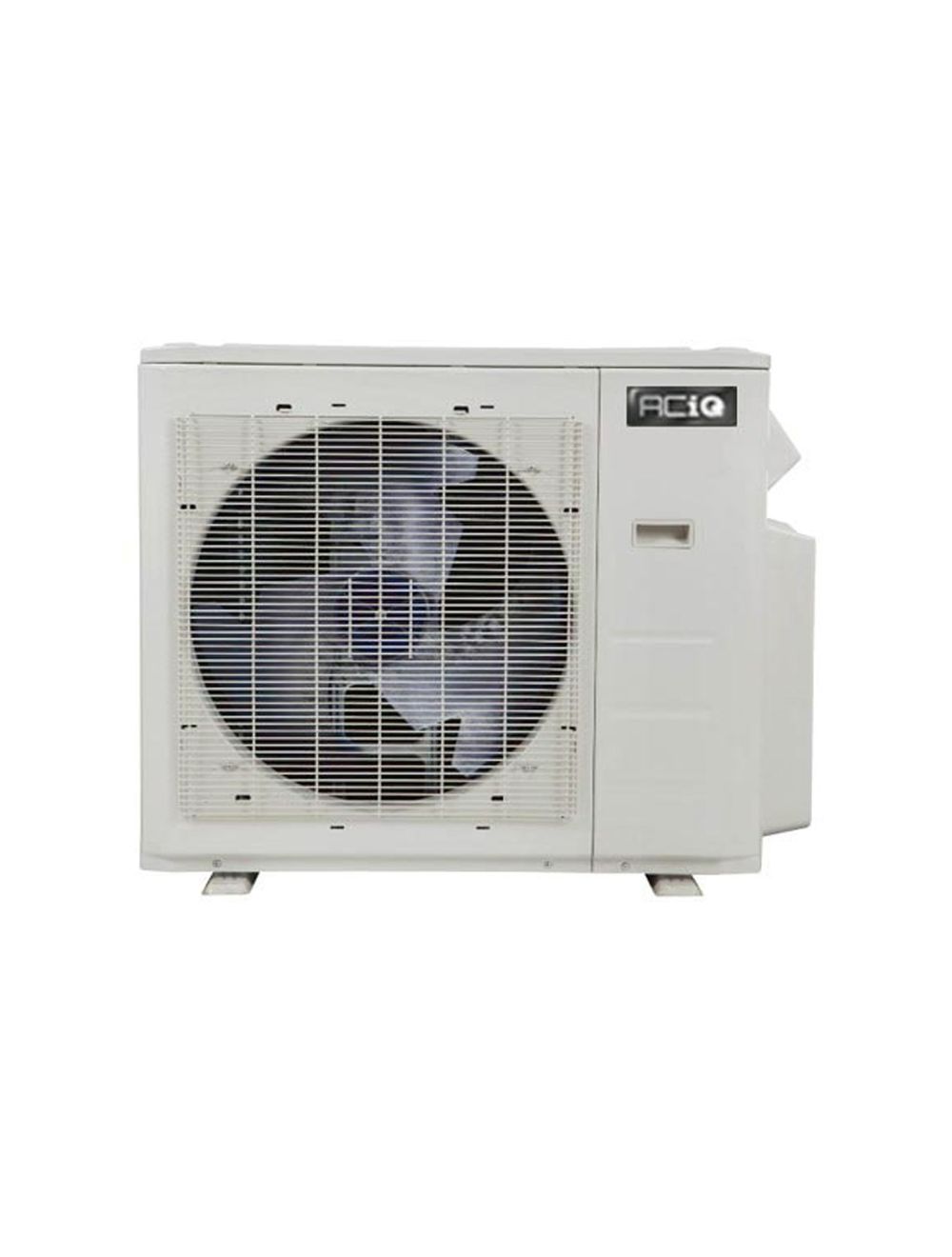

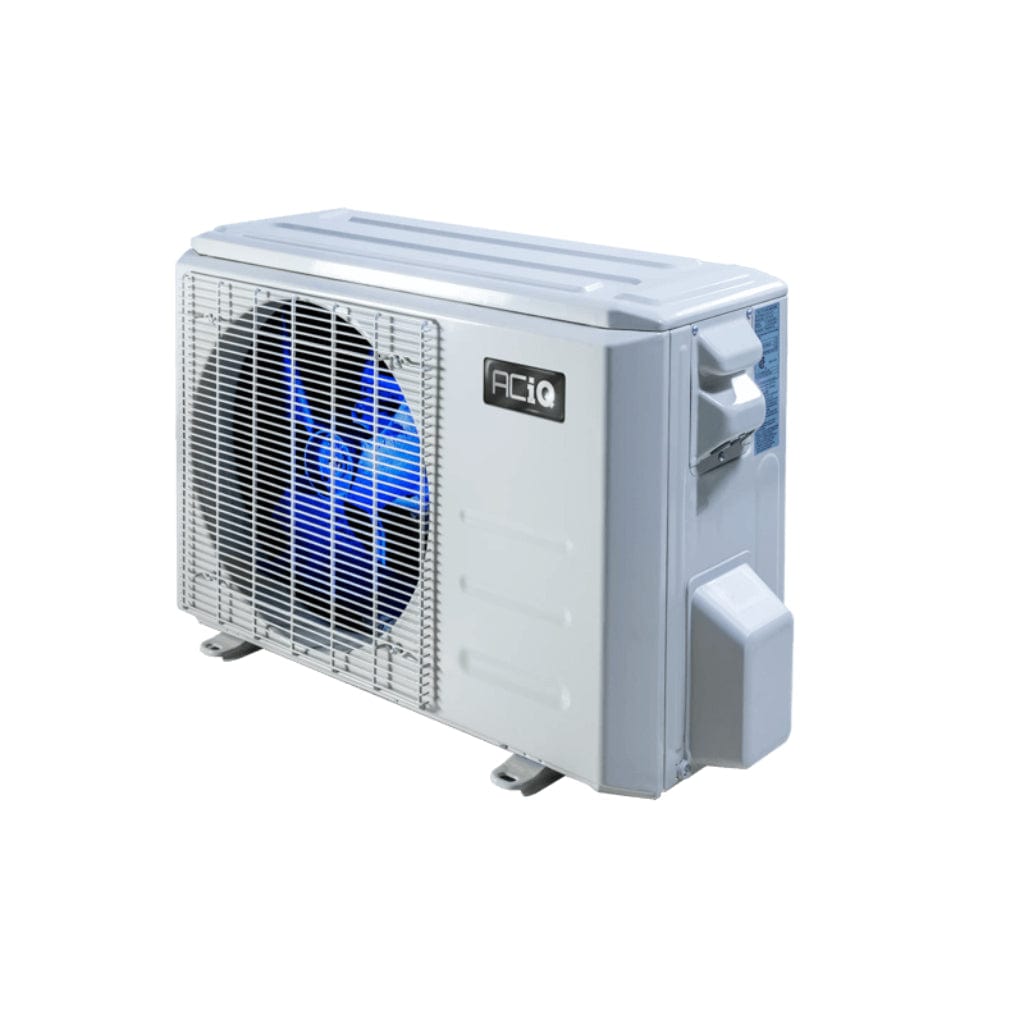

Aciq ES-27Z-M4C 27000 BTU Standard 25 SEER2 Dual Zone Wall Mount Mini Split Heat Pump System - R454B 9 + 18

Product Description

The ACIQ ES-27Z-M4C 2-Zone Standard Series System combines high efficiency with advanced climate control. This 27000 BTU system is designed for year-round heating and cooling in up to 2 spaces. The adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. The system features a self-cleaning condenser.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures

Product Highlights

This multi zone mini split heat pump system offers efficient, adaptive heating and cooling for multiple zones, with self-cleaning technology and quiet operation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-09W-HH-MD / ACIQ-18W-HH-MD

Technical Specifications

• SKU (Condenser): ES-27Z-M4C
• Refrigerant Charge (Condenser): 84.66 oz.
• HSPF2 (Condenser): 9.5
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• Maximum CFM (Condenser): 2131
• Decibel Level (dBA) (Condenser): 61
• Electric Heat (Condenser): Heat Pump
• Energy Star (Condenser): Yes
• Refrigerant: R454B
• SEER2: 25
• Compressor Type (Condenser): Rotary
• Liquid Line (Condenser): 1/4" (4)
• Suction Line (Condenser): 3/8" (3); 1/2" (1)
• Electrical: 208/230V 1 Phase 60 Hz
• Electric Phase Filter (Condenser): Single Phase
• Max Breaker Size (Condenser): 25A
• Min. Breaker Size (Condenser): 23A
• Tonnage (Condenser): 2 Ton to 2.5 Ton
• BTU/Tonnage (Condenser): 24,000 BTU/2 Ton
• Mini Split Type (Condenser): Wall Mounted
• Zone Compatibility (Condenser): Multi Zone
• Ambient Temperature Range (Condenser): -13 ~ 122
• Height (Condenser): 31.89"
• Width (Condenser): 37.24"
• Depth (Condenser): 16.14"
• SKU (9,000 BTU Air Handler): ACIQ-09W-HH-MD
• Cooling BTU (9,000 BTU Air Handler): 9,000 BTU
• Heating BTU (9,000 BTU Air Handler): 9,000 BTU
• Maximum CFM (9,000 BTU Air Handler): Up to 441.4 CFM
• Decibel Level (dBA) (9,000 BTU Air Handler): As low as 19.5 Decibels
• Electric Heat (9,000 BTU Air Handler): Heat Pump
• Liquid Line (9,000 BTU Air Handler): 1/4"
• Suction Line (9,000 BTU Air Handler): 3/8"
• Electric Phase Filter (9,000 BTU Air Handler): Single Phase
• BTU/Tonnage (9,000 BTU Air Handler): 9,000 BTU/0.75 Ton
• Mini Split Type (9,000 BTU Air Handler): Wall Mounted
• Zone Compatibility (9,000 BTU Air Handler): Multi Zone, Single Zone
• Height (9,000 BTU Air Handler): 11.76"
• Width (9,000 BTU Air Handler): 33.40"
• Depth (9,000 BTU Air Handler): 9.18"
• SKU (18,000 BTU Air Handler): ACIQ-18W-HH-MD
• Cooling BTU (18,000 BTU Air Handler): 18,000 BTU
• Heating BTU (18,000 BTU Air Handler): 18,000 BTU
• Maximum CFM (18,000 BTU Air Handler): Up to 635.7 CFM
• Decibel Level (dBA) (18,000 BTU Air Handler): As low as 19.5 Decibels
• Electric Heat (18,000 BTU Air Handler): Heat Pump
• Liquid Line (18,000 BTU Air Handler): 1/4"
• Suction Line (18,000 BTU Air Handler): 1/2"
• Electric Phase Filter (18,000 BTU Air Handler): Single Phase
• BTU/Tonnage (18,000 BTU Air Handler): 18,000 BTU/1.5 Ton
• Mini Split Type (18,000 BTU Air Handler): Wall Mounted
• Zone Compatibility (18,000 BTU Air Handler): Multi Zone, Single Zone
• Height (18,000 BTU Air Handler): 12.60"
• Width (18,000 BTU Air Handler): 40.06"
• Depth (18,000 BTU Air Handler): 9.72"
• Number of Indoor Units: 2
• AHRI Number Mixed: 216032381
• AHRI Number Ducted: 216032380
• AHRI Number Non-Ducted: 216032379
• SEER2 Mixed: 23 SEER2
• SEER2 Ducted: 21 SEER2
• SEER2 Non-Ducted: 25 SEER2
• Outdoor Unit Model Number: ES-27Z-M4C
