Aciq ES-27Z-M4C 27000 BTU Standard 25 SEER2 3 Zone Wall Mount Mini Split Heat Pump System - R454B 230V - 6 + 6 + 18 Aciq-06W-HH-MD-2

Product Description

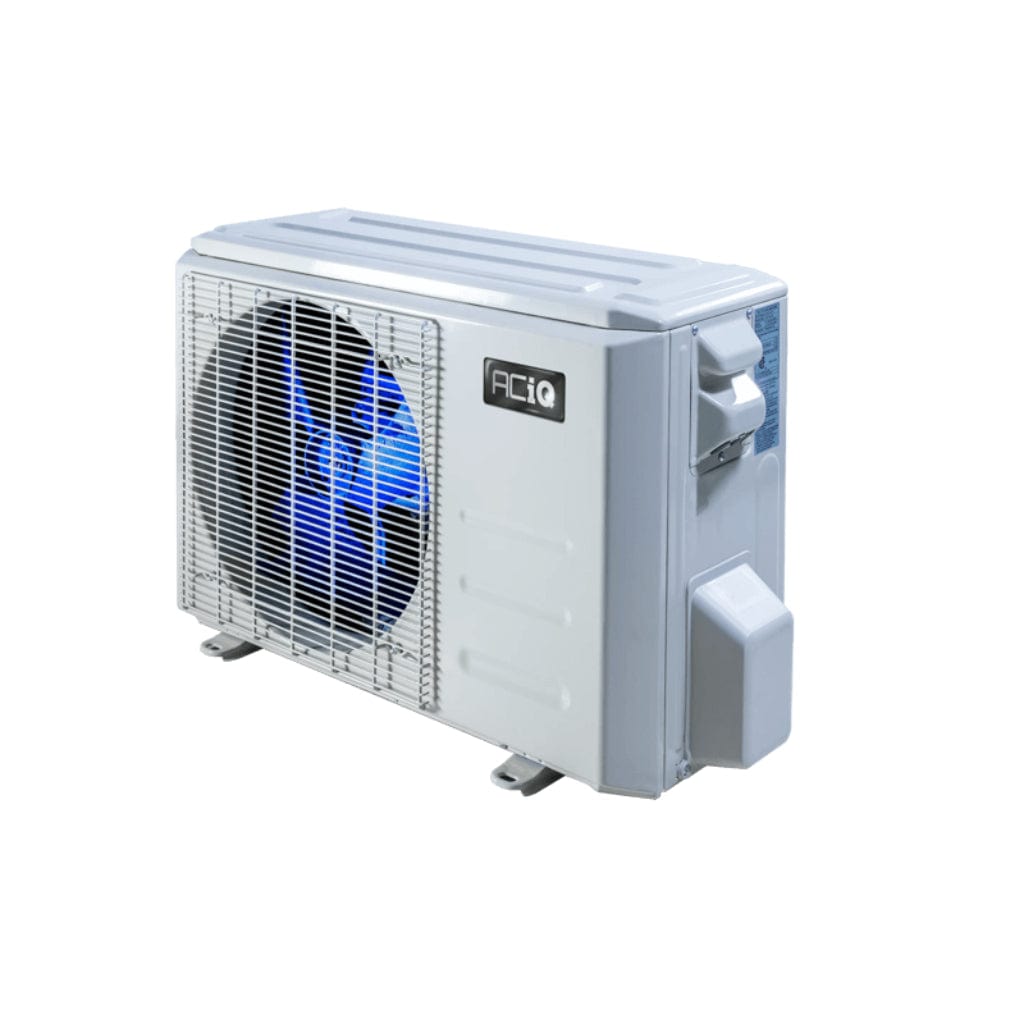

The ACIQ ES-27Z-M4C / ACIQ-06W-HH-MD-2 / ACIQ-18W-HH-MD 3-Zone Standard Series System combines high efficiency with advanced climate control. The 27,000 BTU system is designed to support up to 4 air handlers. This adaptive, inverter condenser self-adjusts to maintain the desired temperature in each zone. It features a high efficiency rating of 25 SEER2.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures

Product Highlights

This multi-zone mini split system provides efficient, customizable climate control for multiple rooms, with smart features for energy savings and ease of use.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-06W-HH-MD-2 / ACIQ-18W-HH-MD

Technical Specifications

• Model: ES-27Z-M4C / ACIQ-06W-HH-MD-2 / ACIQ-18W-HH-MD
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• SEER2: 25
• HSPF2: 9.5
• Refrigerant: R454B
• Voltage: 208/230V
• Phase: Single Phase
• Frequency: 60 Hz
• Zone Compatibility: Multi Zone, Single Zone
• WiFi: Yes (Air Handlers)
• Liquid Line: 1/4" (4) (Condenser), 1/4" (Air Handlers)
• Suction Line: 3/8" (3); 1/2" (1) (Condenser), 3/8" & 1/2" (Air Handlers)
• Compressor Type: Rotary (Condenser)
• Decibel Level (dBA): 61 (Condenser), As low as 19.5 Decibels (Air Handlers)
• Maximum CFM: 2131 (Condenser), Up to 382.6 CFM & 635.7 CFM (Air Handlers)
• Ambient Temperature Range: -13 ~ 122 (Condenser)
• Condenser Width: 37.24"
• Condenser Height: 31.89"
• Condenser Depth: 16.14"
• Refrigerant Charge: 84.66 oz. (Condenser)
• Max Breaker Size: 25A (Condenser)
• Min. Breaker Size: 23A (Condenser)
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Indoor Air Flow (Turbo/H/M/L/Si) (CFM): 382.6 / 323.7 / 229.6 / 176.6 / 147.2
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Indoor Noise Level (Turbo/H/M/L/Si) (dBA): 44.0 / 36.5 / 32.5 / 22.0 / 19.5
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Power Supply: 208/230V,60Hz,1Ph
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Indoor Fan Motor RLA: 0.5
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Indoor Fan Motor W: 20
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Throttle type (Indoor): N/A
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi SEER2: 25.5
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi EER2: 18
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi HSPF2-4: 14.8
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi COP: 4.2
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Rated Capacity: 6000BTU
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Min/Max Capacity: 2300~12600
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Moisture Removal (L/h): 0.3
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Standard Operating Range (°F/°C): -22~122 (-30～50)
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Cooling Condition: 80℉ DB/67℉ WB
• ACiQ 6k BTU Wall Mount Air Handler R454B With WiFi Heating Condition: 70℉ DB/60℉ WB
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Air Flow (Turbo/H/M/L/Si) (CFM): 635.7 / 500.3 / 359.0 / 294.3 / NA
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Noise Level (Turbo/H/M/L/Si) (dBA): 49.5 / 45.0 / 38.0 / 31.5 / 19.5
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Power Supply: 208/230V,60Hz,1Ph
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Fan Motor RLA: 0.8
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Indoor Fan Motor W: 30
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Throttle type (Indoor): N/A
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi SEER2: 21.4
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi EER2: 12.5
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi HSPF2-4: 11.0
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi COP: 3.26
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Rated Capacity: 18000 BTU
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Min/Max Capacity: 8800~19400
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Moisture Removal (L/h): 9.1
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Standard Operating Range (°F/°C): -22~122 (-30～50)
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Cooling Condition: 80℉ DB/67℉ WB
• ACiQ 18k BTU Wall Mount Air Handler R454B With WiFi Heating Condition: 70℉ DB/60℉ WB
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Compressor Type: ROTARY
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Compressor Model: KTM240D46UKT2
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Refrigerant Oil Charge (mL): 620
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Refrigerant Oil: V74
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Outdoor Air Flow (Max) (CFM): 2131
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Outdoor Noise Level (dBA): 61
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Liquid Size: 4 x 6.35mm (4 x 1/4in)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Gas Size: 3 x 9.52mm + 1 x 12.7mm (3 x 3/8in + 1 x 1/2in)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Max. Piping Length for all rooms (ft/m): 262.4 / (80)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Max. Piping Length for one IDU (ft/m): 114.8 / (35)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Max. Height Difference of IDU and ODU (ft/m): 49.2 / (15)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Refrigerant Pre-charged Amount (oz/kg): 84.66 / (2.4)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Refrigearant Precharge Length (ft/m): 24.6 (7.5) x 4
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Additional Charge of Refrigerant (Φ6.35 (1/4") liquid pipe) ((oz/ft)/(g/m)): 0.16 / (15)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Additional Charge of Refrigerant (Φ9.52 (3/8") liquid pipe) ((oz/ft)/(g/m)): 0.32 (30)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Connection Method: Flared
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Power Supply: 208/230V,60Hz,1Ph
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System MCA: 23
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Connection Wiring: AWG 14-4
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System MOCP: 25
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Compressor RLA: 12.1
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Outdoor Fan Motor RLA: 1.2
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Outdoor Fan Motor W: 120
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Indoor Fan Motor RLA: /
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Indoor Fan Motor W: /
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System Power Input @ Cooling (W): 2076 / (500 ~ 2730)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System Power Input @ Heating (W): 2080 / (500 ~2400)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER MCA: Min. circuit amps (A): MOP: Max. overcurrent protection (A)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER RLA: Rated load amps (A): W: Fan motor rated output (W)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER SEER2: 25.0
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER EER2: 13
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER HSPF2-4: 9.5
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER COP: 3.8
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Rated Capacity: 27000
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Min/Max Capacity: 7200~32000
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Moisture Removal (L/h): 0.8
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Standard Operating Range (℉/℃): -13~122 / (-25～50)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Rated Cooling Conditions: 95℉ DB/75℉ WB
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 47℉ Rated: 27000
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 47℉ Min/Max Capacity: 8400~29000
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 17℉ Rated (H32): 18400
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 5℉ Rated: Capacity / COP (H42): 19000 / 2
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 5℉ Max: Capacity: 19000
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating Standard Operating Range (℉/℃): -13~75 / (-25～24)
• ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating Conditions: 47℉ DB/43℉ WB
• Available Zones: 2
