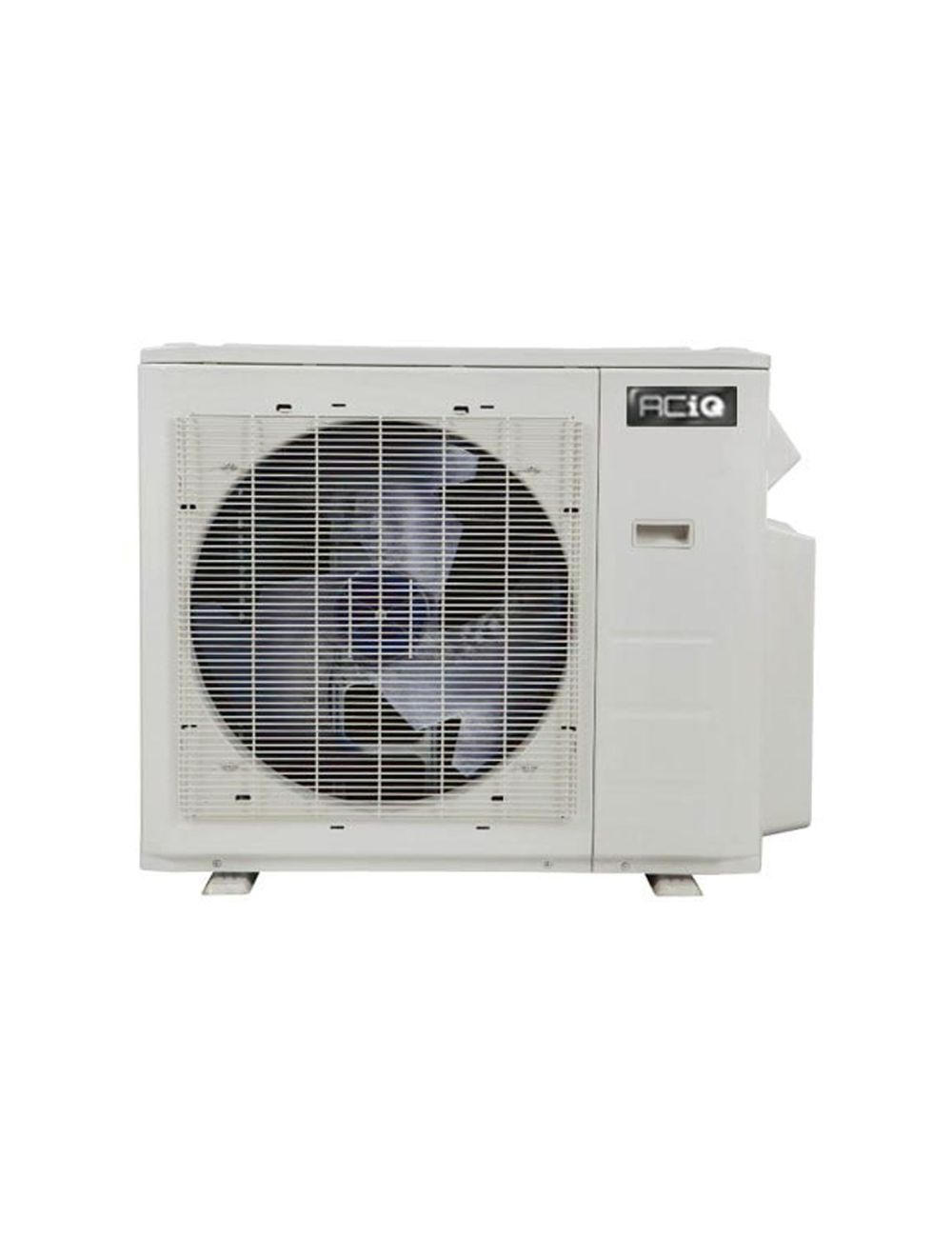

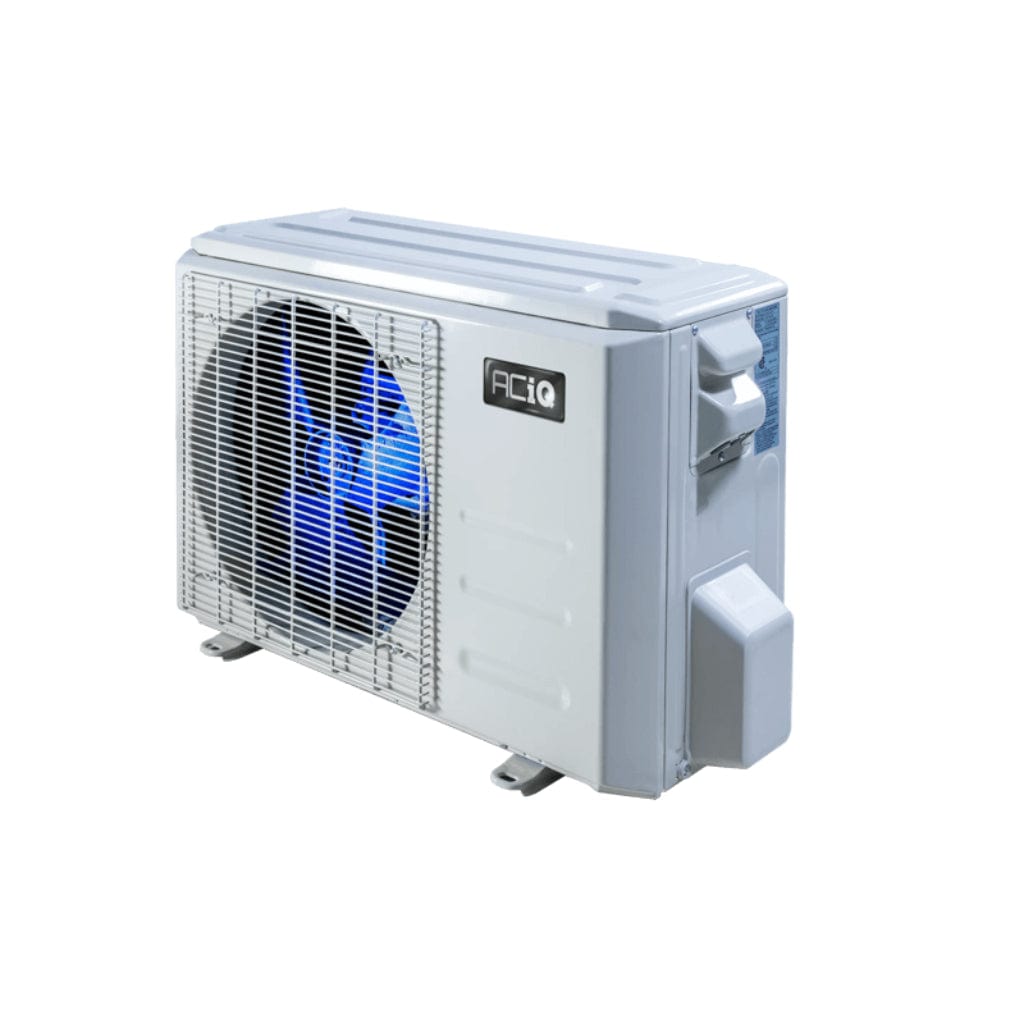

The ACiQ ES-27Z-M4C multi-zone mini split heat pump air conditioning system includes one outdoor condensing unit for up to 33,750 BTUs and up to 3 indoor units. Requires a minimum of 2 indoor units to function. Features a SEER2 rating of 25.0 and an HSPF2-4 rating of 9.5, using R454B refrigerant.
High efficiency with a SEER2 rating of 25.0 and HSPF2-4 rating of 9.5.
Eco-friendly R454B refrigerant.
Operates efficiently from -13°F to 122°F.
Product Highlights
This multi-zone heat pump condenser enhances home comfort and energy efficiency, offering reliable performance in various weather conditions.
Product Information
Standard Information
Brand: ACIQ
Manufacturer Part Number: ES-27Z-M4C / ACIQ-06W-HH-MD-2 / ACIQ-24W-HH-MD
Technical Specifications
Outdoor Unit
ES-27Z-M4C
AHRI Number Mixed
216032381
AHRI Number Ducted
216032380
AHRI Number Non-Ducted
216032379
SEER2 Mixed
23 SEER2
SEER2 Ducted
21 SEER2
SEER2 Non-Ducted
25 SEER2
HSPF2
9.5
Cooling BTU
24000 BTU
Heating BTU
24000 BTU
Maximum CFM
611.18
Decibel Level (dBA)
44
Electric Heat
Heat Pump
Energy Star
Yes
Refrigerant
R454B
Compressor Type
Rotary
Liquid Line
3/8"
Suction Line
5/8"
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
25 A
Min. Breaker Size
23 A
Tonnage
2 Ton to 2.5 Ton
BTU/Tonnage
24,000 BTU/2 Ton
Mini Split Type
Wall Mounted
Zone Compatibility
Multi Zone
Ambient Temperature Range
-13 ~ 122
Height
14.59"
Width
33.40"
Depth
11.20"
Electric Phase Filter
Single Phase
SEER
18-20
Length
46.85"
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Compressor Type
ROTARY
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Compressor Model
KTM240D46UKT2
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Refrigerant
R454B
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Refrigerant Oil Charge (mL)
620
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Refrigerant Oil
V74
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Outdoor Air Flow (Max) (CFM)
2131
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B OUTDOOR UNIT SPECIFICATIONS Outdoor Noise Level (dBA)
61
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Liquid Size
4 x 6.35mm (4 x 1/4in)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Gas Size
3 x 9.52mm + 1 x 12.7mm (3 x 3/8in + 1 x 1/2in)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Max. Piping Length for all rooms (ft/m)
262.4 / (80)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Max. Piping Length for one IDU (ft/m)
114.8 / (35)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Max. Height Difference of IDU and ODU (ft/m)
49.2 / (15)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Refrigerant Pre-charged Amount (oz/kg)
84.66 / (2.4)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Refrigearant Precharge Length (ft/m)
24.6 (7.5) x 4
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Additional Charge of Refrigerant (Φ6.35 (1/4") liquid pipe) ((oz/ft)/(g/m))
0.16 / (15)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Additional Charge of Refrigerant (Φ9.52 (3/8") liquid pipe) ((oz/ft)/(g/m))
0.32 (30)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B REFRIGERANT PIPING SPECIFICATIONS Connection Method
Flared
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Power Supply
208/230V,60Hz,1Ph
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System MCA
23
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Connection Wiring
AWG 14-4
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System MOCP
25
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Compressor RLA
12.1
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Outdoor Fan Motor RLA
1.2
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Outdoor Fan Motor W
120
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Indoor Fan Motor RLA
/
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Indoor Fan Motor W
/
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System Power Input @ Cooling (W)
2076 / (500 ~ 2730)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER System Power Input @ Heating (W)
2080 / (500 ~2400)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER SEER2
25.0
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER EER2
13
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER HSPF2-4
9.5
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER COP
3.8
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Rated Capacity
27000
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Min/Max Capacity
7200~32000
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Moisture Removal (L/h)
0.8
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Cooling Standard Operating Range (°F/°C)
-13~122 / (-25～50)
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Rated Cooling Conditions
95℉ DB/75℉ WB
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 47℉ Rated
27000
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 47℉ Min/Max Capacity
8400~29000
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 17℉ Rated (H32)
18400
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 5℉ Rated: Capacity / COP (H42)
19000 / 2
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating @ 5℉ Max: Capacity
19000
ACiQ 27k BTU Standard Multi Zone Condenser Inverter R454B SUBMITTAL FOR NON DUCTED AIR HANDLER Heating Standard Operating Range (°F/°C)
-13~75 / (-25～24)
