Aciq ES-27Z-M4C 27000 BTU 2 Zone / Room Mini Split Heat Pump AC System

Product Description

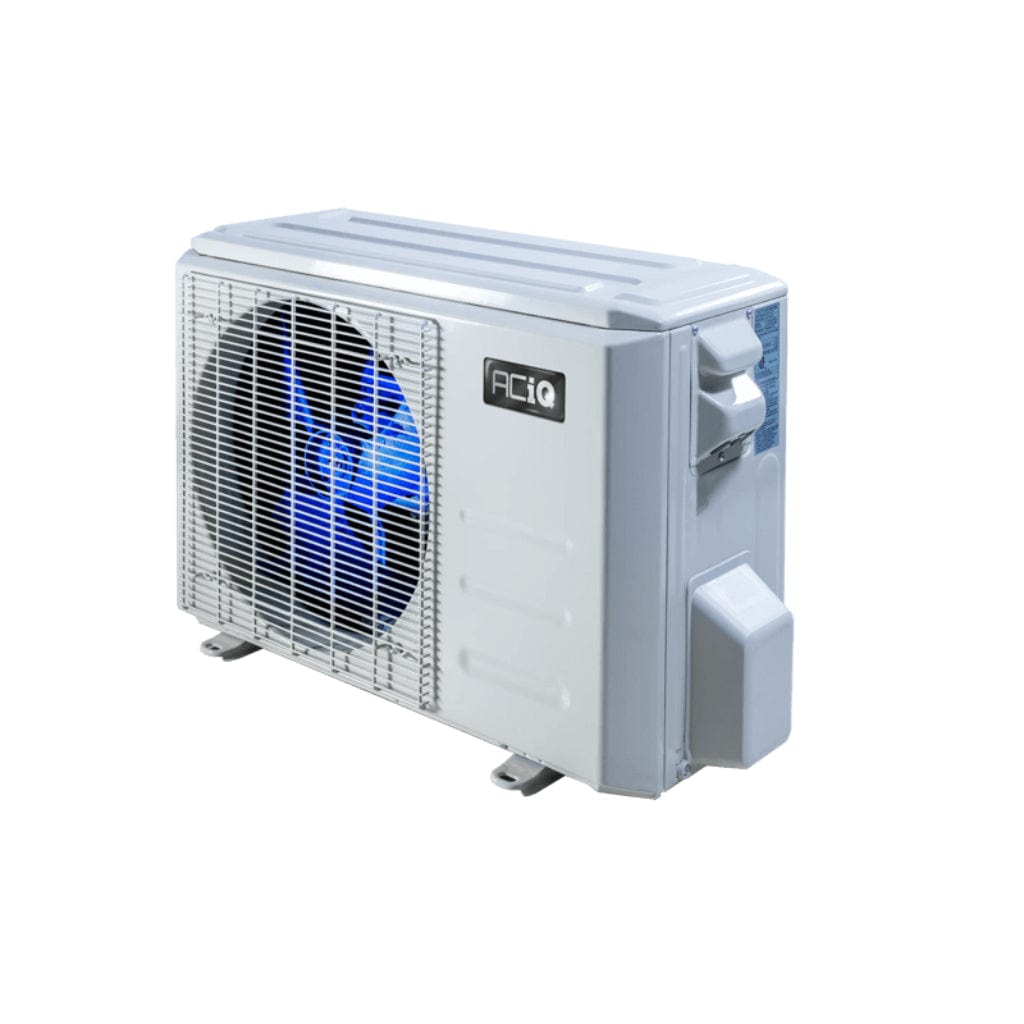

The ACiQ ES-27Z-M4C mini split heat pump air conditioning system includes one fully charged multizone outdoor condensing unit for up to 33,750 BTUs and up to 2 indoor units. This 2 zone mini split system independently conditions 2 separate rooms/zones to the individual temperatures. The system uses R454B refrigerant and operates efficiently from -13°F to 122°F.

• High Efficiency: SEER2 rating of 25.0 and HSPF2-4 rating of 9.5 for optimal energy savings.
• Eco-Friendly: Uses R454B refrigerant, which has a lower environmental impact.
• Wide Operating Range: Operates efficiently from -13°F to 122°F, ensuring comfort in all seasons.

Product Highlights

This ACiQ mini split system offers multi-zone capability, quiet operation, and durable construction for long-lasting performance. It is suitable for medium to large-sized homes.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-09W-HH-MD-2 / ACIQ-18W-HH-MD

Technical Specifications

• Outdoor Unit Model Number: ES-27Z-M4C
• Number of Indoor Units: 2
• AHRI Number Mixed: 216032381
• AHRI Number Ducted: 216032380
• AHRI Number Non-Ducted: 216032379
• SEER2: 25.0
• SEER2 Mixed: 23 SEER2
• SEER2 Ducted: 21 SEER2
• SEER2 Non-Ducted: 25 SEER2
• Cooling BTU: 27,000
• Heating BTU: 27,000
• Available Zones: 2
• Refrigerant: R454B
• Outdoor Noise Level (dBA): 61
• Cooling Standard Operating Range (℉/℃): -13~122 / (-25～50)
• Heating Standard Operating Range (℉/℃): -13~75 / (-25～24)
• Power Supply: 208/230V,60Hz,1Ph
• Compressor Type: ROTARY
• Outdoor Air Flow (Max) (CFM): 2131
• Liquid Size: 4 x 6.35mm (4 x 1/4in)
• Gas Size: 3 x 9.52mm + 1 x 12.7mm (3 x 3/8in + 1 x 1/2in)
• Max. Piping Length for all rooms (ft/m): 262.4 / (80)
• Max. Piping Length for one IDU (ft/m): 114.8 / (35)
• Max. Height Difference of IDU and ODU (ft/m): 49.2 / (15)
• Refrigerant Pre-charged Amount (oz/kg): 84.66 / (2.4)
• Refrigearant Precharge Length (ft/m): 24.6 (7.5) x 4
• System MCA: 23
• System MOCP: 25
• Compressor RLA: 12.1
• Outdoor Fan Motor RLA: 1.2
• Outdoor Fan Motor W: 120
• System Power Input @ Cooling (W): 2076 / (500 ~ 2730)
• System Power Input @ Heating (W): 2080 / (500 ~2400)
