Aciq ES-27Z-M4C 27000 BTU 2 Zone / Room Mini Split Heat Pump AC System

Product Description

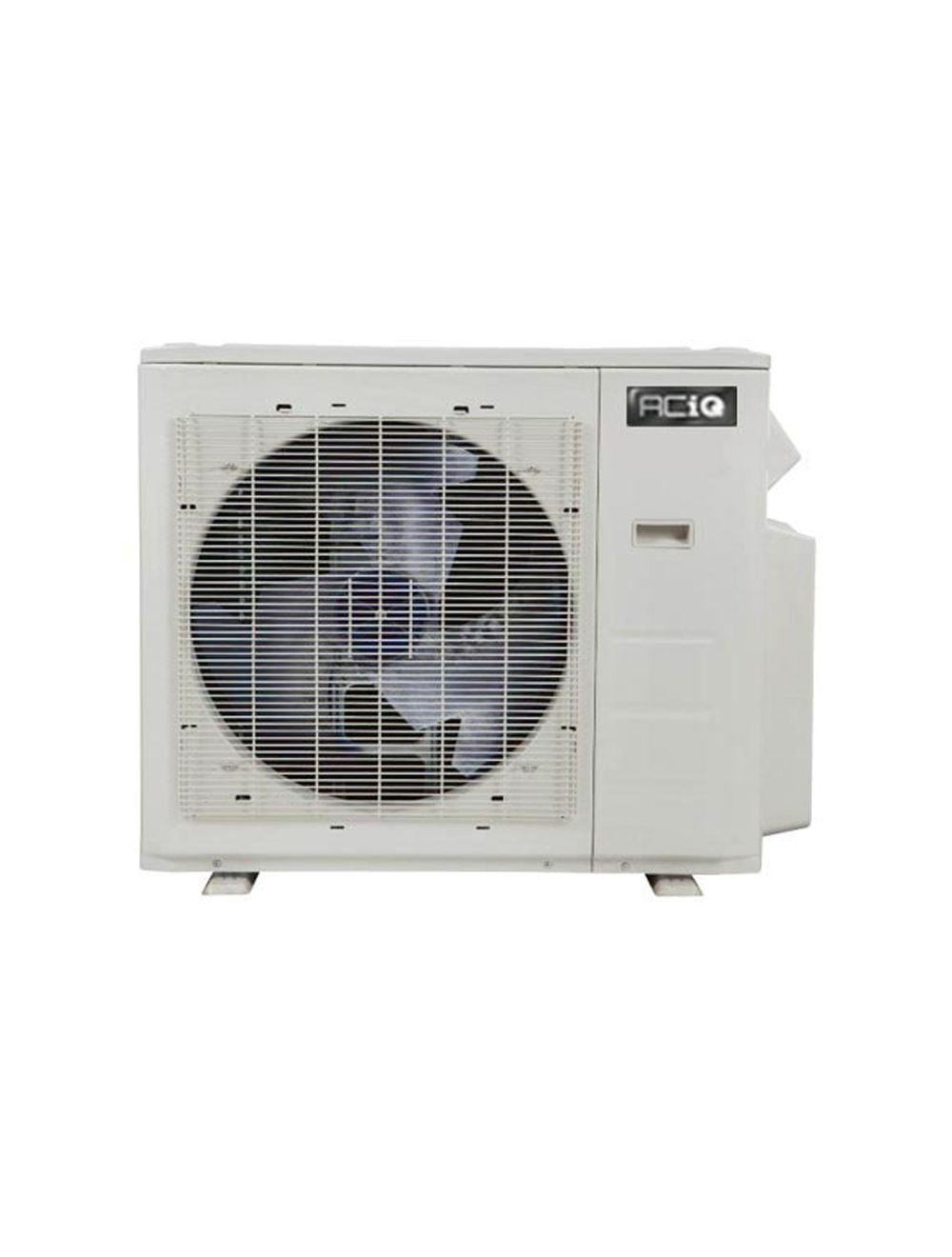

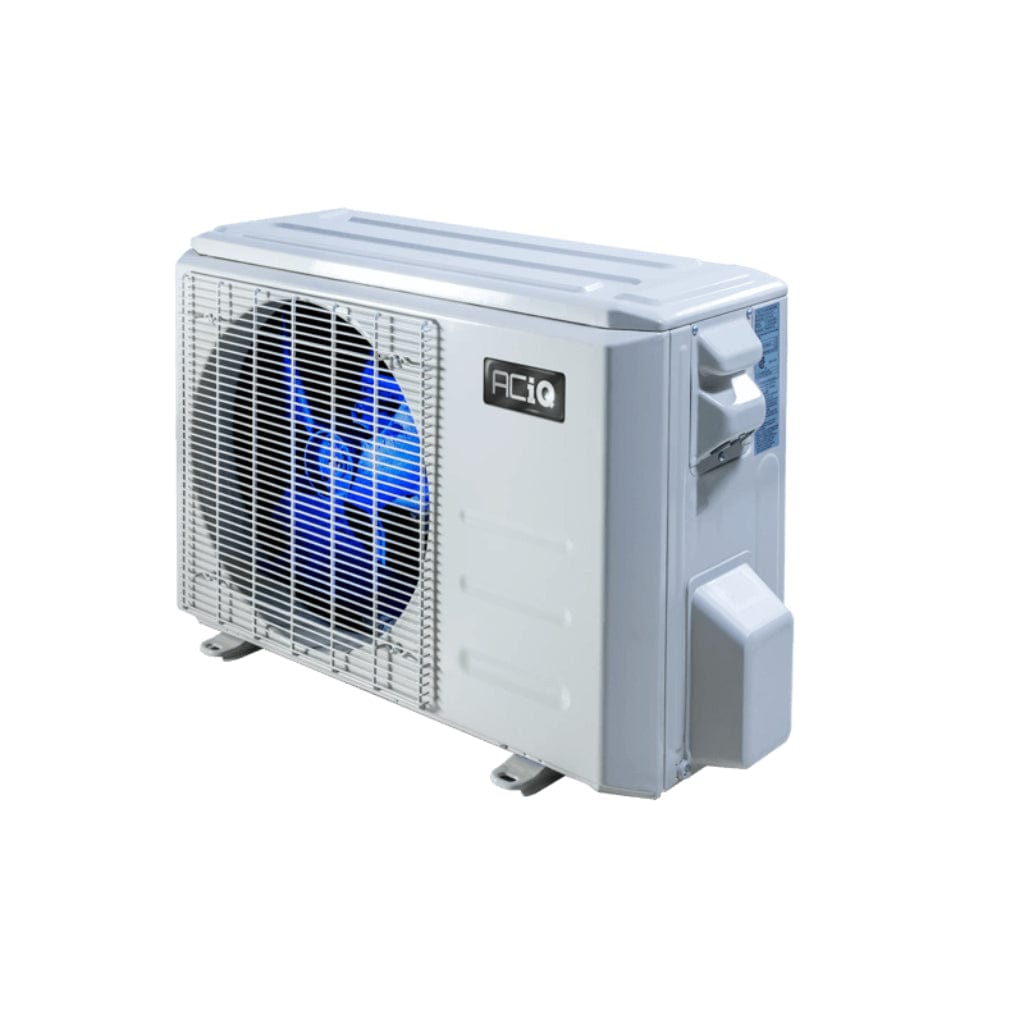

The ACIQ ES-27Z-M4C 27000 BTU Mini Split Heat Pump AC System includes one fully charged multizone mini split heat pump outdoor condensing unit for up to 33,750 BTUs and up to 2 indoor units. Requires a minimum of 2 indoor units to function. Features a SEER2 rating of 25.0 and an HSPF2-4 rating of 9.5, using R454B refrigerant.

• SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings.
• Heat pumps are all electric and good for mild and cold climates.
• 2 zone mini split -This system will independently condition 2 separate rooms/zones to the individual temperatures you choose for each zone

Product Highlights

The system operates efficiently within a wide temperature range, from -13°F to 122°F, ensuring reliable performance in various weather conditions.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-09W-HH-MD-2

Technical Specifications

• Outdoor Unit: ES-27Z-M4C
• Number of Indoor Units: 2
• SEER2 (Mixed): 23 SEER2
• SEER2 (Ducted): 21 SEER2
• SEER2 (Non-Ducted): 25 SEER2
• Rated Cooling Capacity: 27,000 BTU/hr
• Heating Capacity: 27,000 BTU/hr
• Outdoor Noise Level: 61 dBA
• Indoor Air Flow (Turbo/H/M/L/Si) (CFM): 441.4 / 323.7 / 229.6 / 176.6 / 147.2
• Indoor Noise Level (Turbo/H/M/L/Si) (dBA): NA / 38 / 33 / 20.5 / 19.5
• Power Supply: 208/230V,60Hz,1Ph
• Indoor Fan Motor RLA: 0.5
• Indoor Fan Motor W: 20
• SEER2: 27.4
• EER2: 15.4
• HSPF2-4: 12.5
• COP: 3.76
• Min/Max Capacity: 3800~13500
• Moisture Removal (L/h): 0.3
• Standard Operating Range (°F/°C): -22~122 (-30～50)
• Cooling Condition: 80℉ DB/67℉ WB
• Heating Condition: 70℉ DB/60℉ WB
• Compressor Type: ROTARY
• Compressor Model: KTM240D46UKT2
• Refrigerant: R454B
• Refrigerant Oil Charge (mL): 620
• Refrigerant Oil: V74
• Outdoor Air Flow (Max) (CFM): 2131
• Liquid Size: 4 x 6.35mm (4 x 1/4in)
• Gas Size: 3 x 9.52mm + 1 x 12.7mm (3 x 3/8in + 1 x 1/2in)
• Max. Piping Length for all rooms (ft/m): 262.4 / (80)
• Max. Piping Length for one IDU (ft/m): 114.8 / (35)
• Max. Height Difference of IDU and ODU (ft/m): 49.2 / (15)
• Refrigerant Pre-charged Amount (oz/kg): 84.66 / (2.4)
• Refrigearant Precharge Length (ft/m): 24.6 (7.5) x 4
• Additional Charge of Refrigerant (Φ6.35 (1/4") liquid pipe) ((oz/ft)/(g/m)): 0.16 / (15)
• Additional Charge of Refrigerant (Φ9.52 (3/8") liquid pipe) ((oz/ft)/(g/m)): 0.32 (30)
• Connection Method: Flared
• System MCA: 23
• Connection Wiring: AWG 14-4
• System MOCP: 25
• Compressor RLA: 12.1
• Outdoor Fan Motor RLA: 1.2
• Outdoor Fan Motor W: 120
• Cooling Rated Capacity: 27000
• Cooling Min/Max Capacity: 7200~32000
• Cooling Moisture Removal (L/h): 0.8
• Cooling Standard Operating Range (℉/℃): -13~122 / (-25～50)
• Rated Cooling Conditions: 95℉ DB/75℉ WB
• Heating @ 47℉ Rated: 27000
• Heating @ 47℉ Min/Max Capacity: 8400~29000
• Heating @ 17℉ Rated (H32): 18400
• Heating @ 5℉ Rated: Capacity / COP (H42): 19000 / 2
• Heating @ 5℉ Max: Capacity: 19000
• Heating Standard Operating Range (℉/℃): -13~75 / (-25～24)
• Heating Conditions: 47℉ DB/43℉ WB
• Available Zones: 2
• Electrical: 208/230V / 1Ph / 60Hz
• Max CFM: 441.4
• Decibel Level: as low as 19.5
