Aciq ES-27Z-M4C 27,000 BTU Standard 25 SEER2 3 Zone Wall Mount Mini Split Heat Pump System - R454B 6 + 12 + 18 REPLACES ES-27Z-M3B

Product Description

The ACIQ ES-27Z-M4C 3-Zone Standard Series System combines high efficiency with advanced climate control. This 27,000 BTU, 25 SEER2 multi zone heat pump condenser is designed to function with up to 4 attached air handlers. It provides efficient cooling from -13°F to 122°F and heating from -13°F to 75°F.

• Designed to function with up to 4 attached air handlers

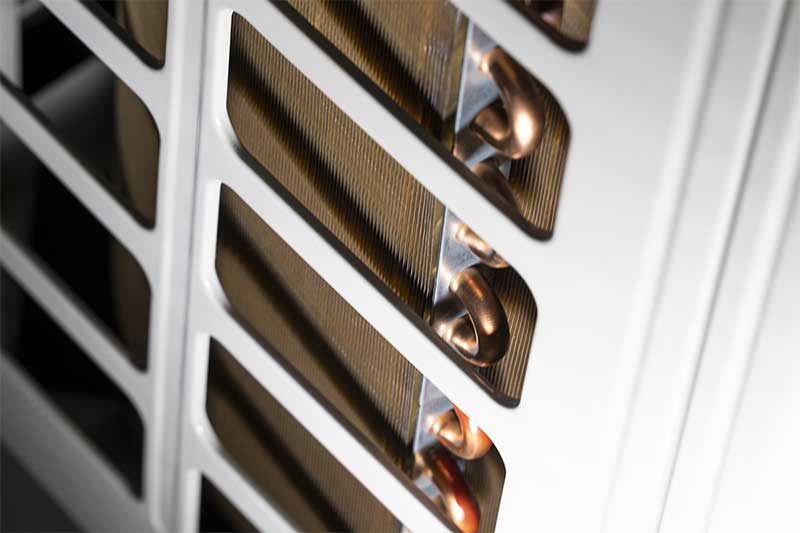

• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

Product Highlights

This multi zone heat pump condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-06W-HH-MD / ACIQ-12W-HH-MD / ACIQ-18W-HH-MD

Technical Specifications

• SKU: ES-27Z-M4C
• Refrigerant Charge: 84.66 oz.
• AHRI Certificate Number: 216032379, 216032380
• Manufacturer: ACiQ
• Replaces: ES-27Z-M3B
• HSPF2: 9.5
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• Maximum CFM: 2131
• Decibel Level (dBA): 61
• Electric Heat: Heat Pump
• Energy Star: Yes
• Refrigerant: R454B
• SEER2: 25
• Compressor Type: Rotary
• Liquid Line: 1/4" (4)
• Suction Line: 3/8" (3); 1/2" (1)
• Electrical: 208/230V 1 Phase 60 Hz
• Electric Phase Filter: Single Phase
• Max Breaker Size: 25A
• Min. Breaker Size: 23A
• Tonnage: 2 Ton to 2.5 Ton
• BTU/Tonnage: 24,000 BTU/2 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Multi Zone
• Ambient Temperature Range: -13 ~ 122
• Height: 31.89"
• Width: 37.24"
• Depth: 16.14"
