Aciq ES-27Z-M4C 27,000 BTU 3 Zone Wall Mount Mini Split Heat Pump System - R454B (9 + 9 + 12)

Product Description

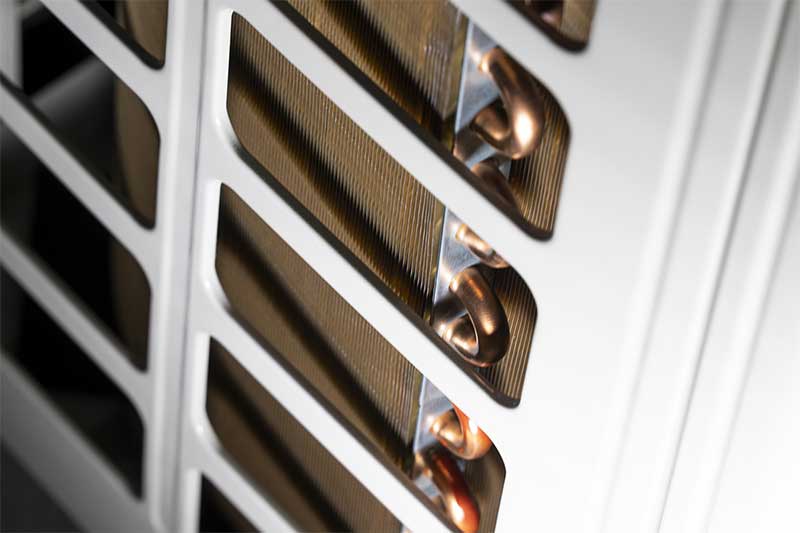

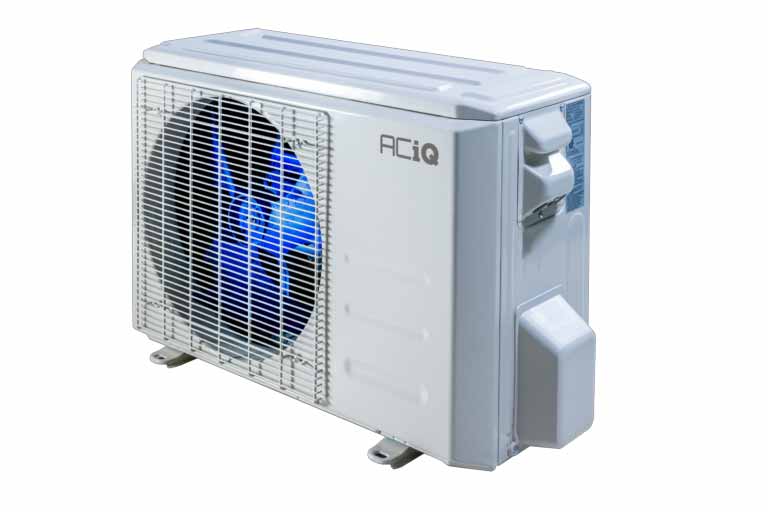

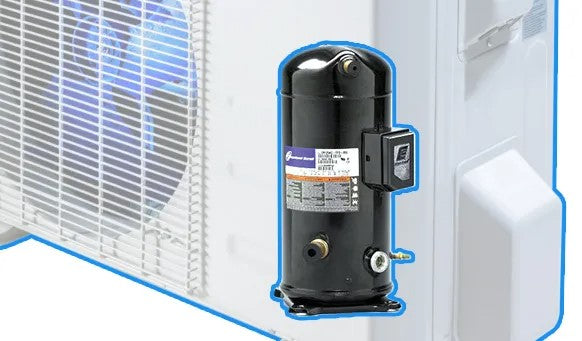

The ACIQ ES-27Z-M4C / ACIQ-09W-HH-MD-2 / ACIQ-12W-HH-MD 3-Zone Standard Series System offers efficient climate control for year-round heating and cooling in up to 3 spaces. This 27,000 BTU multi-zone condenser operates at 25 SEER2 and can support up to 4 air handlers, optimizing space and comfort. It features a variable inverter twin rotary compressor and a self-cleaning condenser.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures

Product Highlights

This system provides efficient, quiet operation with features like WiFi control, enhanced dry mode, and intelligent sleep mode.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-09W-HH-MD-2 / ACIQ-12W-HH-MD

Technical Specifications

• Cooling BTU: 27000 BTU (Condenser), 9,000 BTU (Air Handler), 12,000 BTU (Air Handler)
• Heating BTU: 27000 BTU (Condenser), 9,000 BTU (Air Handler), 12,000 BTU (Air Handler)
• SEER2: 25 (Condenser)
• HSPF2: 9.5 (Condenser)
• Refrigerant: R454B
• Voltage: 208/230V
• Phase: Single Phase
• Frequency: 60 Hz
• Compressor Type: Rotary (Condenser)
• Decibel Level (dBA): 61 (Condenser), As low as 19.5 Decibels (Air Handler)
• Liquid Line: 1/4" (4) (Condenser), 1/4" (Air Handler)
• Suction Line: 3/8" (3); 1/2" (1) (Condenser), 3/8" (Air Handler)
• Max Breaker Size: 25A (Condenser)
• Min. Breaker Size: 23A (Condenser)
• Tonnage: 2 Ton to 2.5 Ton (Condenser)
• BTU/Tonnage: 24,000 BTU/2 Ton (Condenser), 9,000 BTU/0.75 Ton (Air Handler), 12,000 BTU/1 Ton (Air Handler)
• Zone Compatibility: Multi Zone, Single Zone
• Ambient Temperature Range: -13 ~ 122 (Condenser)
• Width: 37.24" (Condenser), 33.40" (Air Handler)
• Height: 31.89" (Condenser), 11.76" (Air Handler)
• Depth: 16.14" (Condenser), 9.18" (Air Handler)
• Refrigerant Charge: 84.66 oz. (Condenser)
• Maximum CFM: 2131 (Condenser), Up to 441.4 CFM (Air Handler)
• Electric Phase Filter: Single Phase (Condenser, Air Handler)
• Mini Split Type: Wall Mounted (Air Handler)
• Product Features: WiFi (Air Handler)
• Electric Heat: Heat Pump (Air Handler)
• AHRI Certificate Number: 216032379 (Condenser)
