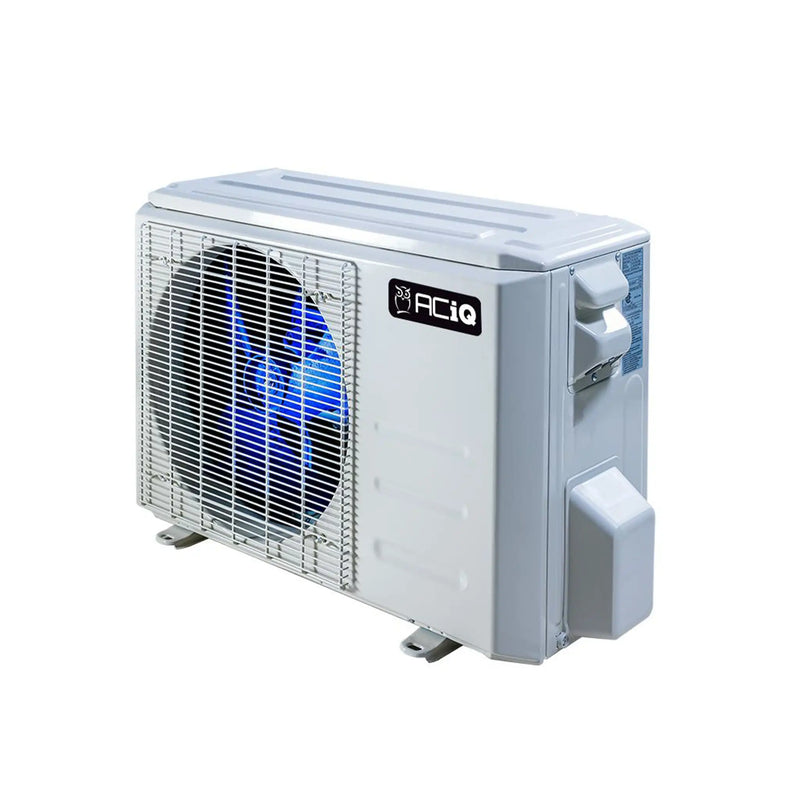

Aciq ES-27Z-M4C 27,000 BTU 25 SEER2 wall mount mini split system 4-zone R454B 6+6+9+12 replacement ES-27Z-M3B

Product Description

The ACiQ ES-27Z-M4C is a 27,000 BTU, 25 SEER2 multi-zone heat pump condenser designed for adaptive heating and cooling. This system allows up to 4 air handlers to connect to a single condenser. It features efficient cooling from -13°F to 122°F and heating from -13°F to 75°F.

• 27,000 BTU, 25 SEER2 multi zone heat pump condenser
• Designed to function with up to 4 attached air handlers
• WiFi capable using free Net Home Plus app, Google Home, or Alexa

Product Highlights

This multi-zone system is pre-charged with R410-A refrigerant and features a self-diagnosing control board. It is suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ES-27Z-M4C / ACIQ-06W-HH-MD / ACIQ-09W-HH-MD / ACIQ-12W-HH-MD

Technical Specifications

• Brand: ACiQ
• SKU: ES-27Z-M4C
• Replaces: ES-27Z-M3B
• HSPF2: 9.5
• Cooling BTU: 27000 BTU
• Heating BTU: 27000 BTU
• Maximum CFM: 2131
• Decibel Level (dBA): 61
• Electric Heat: Heat Pump
• Energy Star: Yes
• Refrigerant: R454B
• SEER2: 25
• Compressor Type: Rotary
• Liquid Line: 1/4" (4)
• Suction Line: 3/8" (3); 1/2" (1)
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 25 A
• Min. Breaker Size: 23 A
• Tonnage: 2 Ton to 2.5 Ton
• BTU/Tonnage: 27,000 BTU/2.25 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Multi Zone
• Ambient Temperature Range: -13 ~ 122
• Height: 31.89"
• Width: 37.24"
• Depth: 16.14"
