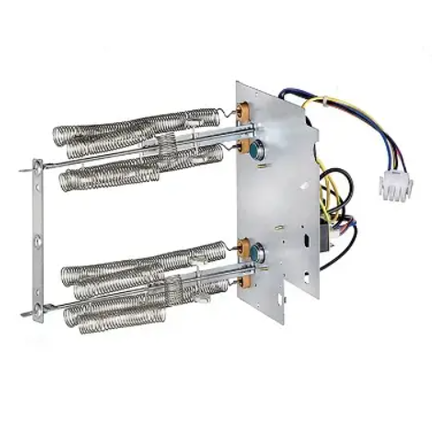

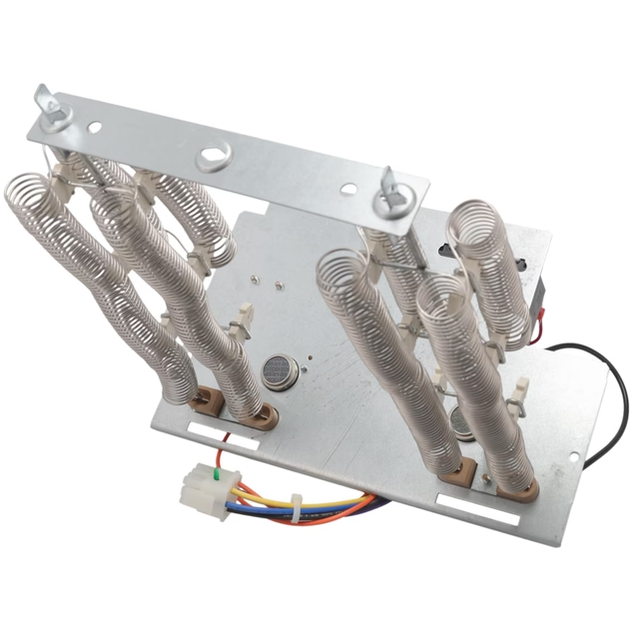

Aciq EHK07AKB heater coil 7 kW (23,800 BTU) KFCEH2501C08

Product Description

The Aciq EHK07AKB is a 7 kilowatt heater coil designed to add electric heating to ACiQ air handlers. It produces 23,800 BTU and operates on 208/230/240 V single-phase power, with a minimum breaker size of 45 amps. The compact 9 lb coil mounts into ACiQ FCM and FTM air handlers for supplemental winter heating in residential and commercial installations. Equivalent Carrier and Bryant part numbers are listed for replacement compatibility.

• 7 kW electric heat output (23,800 BTU); operates on 208/230/240 V single-phase power
• Requires a minimum 45 amp circuit breaker; compact 9 lb accessory designed to mount in ACiQ FCM and FTM air handlers
• Direct replacement equivalents include Carrier KFCEH2501C08 and Bryant KFCEH2501C08; intended for residential and commercial supplemental heating

Product Highlights

7 kW (23,800 BTU) electric heater coil for ACiQ air handlers; 208/230/240 V single-phase; 45 A minimum breaker; Carrier/Bryant equivalents KFCEH2501C08.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHK07AKB

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: EHK07AKB
• Heating Capacity: 23,800 BTU
• Power: 7 Kilowatts
• Input Voltage: 208 / 230 / 240 Volts
• Phase: Single Phase
• Minimum Breaker Size: 45 Amps
• Weight: 9.00 lbs
• Compatible With: ACiQ FCM and FTM air handlers; ACiQ air handlers (formerly AirQuest)
• Equivalent Part Numbers: Carrier KFCEH2501C08; Tempstar EHK07AKB; Bryant KFCEH2501C08
• Proposition 65 Warning: Yes
