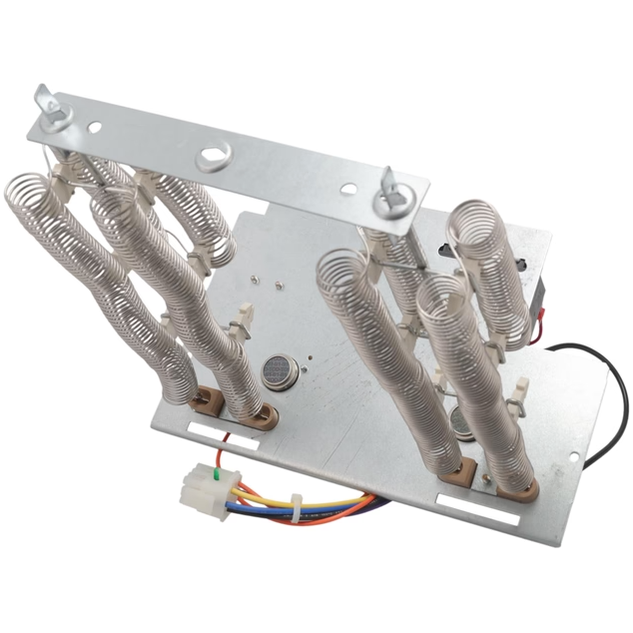

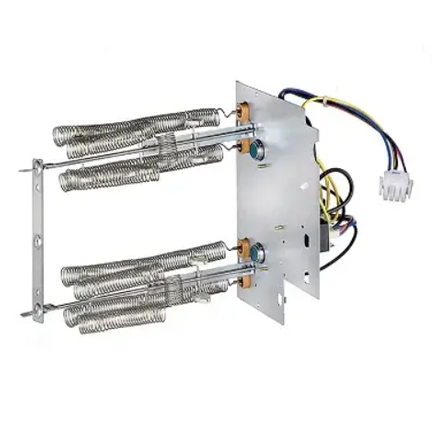

Aciq EHK05AKB Heater Coil 5 Kilowatt (17,000 BTU) Replacement KFCEH2401C05

Product Description

The ACiQ EHK05AKB is a 5 kilowatt heater coil for ACiQ air handlers, designed to provide electric heating on 208/230/240 V single-phase systems. Rated at approximately 17,000 BTU, it integrates with ACiQ FCM and FTM air handlers and requires a minimum 30 amp breaker. The unit weighs about 9.0 lbs and is listed as equivalent to Carrier KFCEH2401C05 and Bryant KFCEH2401C05.

• 5 kilowatt electric heating element producing approximately 17,000 BTU
• Designed for 208/230/240 V single-phase systems; minimum 30 amp breaker required
• Integrates with ACiQ FCM and FTM air handlers; equivalent to Carrier KFCEH2401C05 and Bryant KFCEH2401C05

Product Highlights

5 kW heater coil for 208/230/240 V single-phase air handlers; ~17,000 BTU; 30 A minimum breaker.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHK05AKB

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: EHK05AKB
• SKU: EHK05AKB
• Power: 5 kW
• Heating Capacity: 17,000 BTU (approx.)
• Input Voltage: 208 / 230 / 240 V (single-phase)
• Phase: Single-phase
• Minimum Breaker Size: 30 A
• Weight: 9.00 lbs
• Compatible Air Handler Models: ACiQ FCM and FTM
• Equivalent Part Numbers: Carrier KFCEH2401C05; Tempstar EHK05AKB; Bryant KFCEH2401C05
• Application: Heater coil for ACiQ air handlers
• Safety Information: Proposition 65 warning (contains a chemical known to the state of California to cause cancer or reproductive harm)
