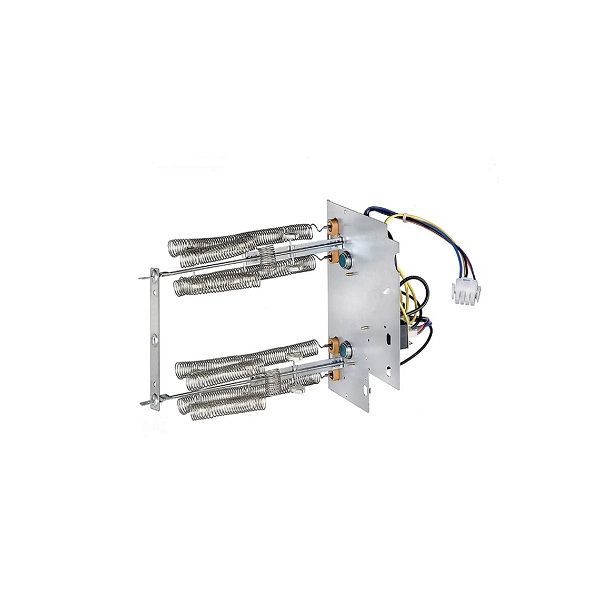

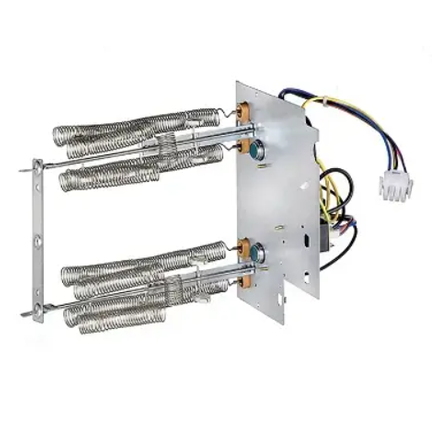

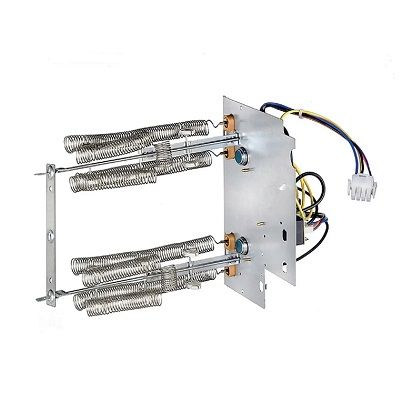

Aciq EHC20BKB 20 Kilowatt 62,800 BTU Electric Heater Coil (208/230V Single Phase) KFFEH3301C20

Product Description

Aciq EHC20BKB is a 230-volt electric heater coil that delivers 62,800 BTU (20 kW) of supplemental heat for ACiQ air handlers. The coil is single-phase (208/230 V, 60 Hz) and includes circuit breakers to simplify electrical integration. It is designed to add winter-time heating capability to compatible air handler units for residential and light commercial indoor applications.

• 20 kilowatts of electric heat producing 62,800 BTU output
• Electrical: 208/230 V single-phase, 60 Hz; nominal 230-volt coil
• Includes circuit breakers; minimum breaker sizes: Circuit 1: 56.9 A, Circuit 2: 49.3 A, Single wire kit: 106.1 A

Product Highlights

20 kW electric heater coil for ACiQ air handlers; 62,800 BTU output; 208/230 V single-phase operation with included circuit breakers.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHC20BKB

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: EHC20BKB
• SKU: EHC20BKB
• Heating Capacity: 62,800 BTU
• Power: 20 Kilowatts
• Electrical: 208/230 V 1 Phase 60 Hz
• Nominal Voltage: 230 Volt
• Phase: Single Phase
• Minimum Breaker Size: Circuit 1: 56.9 Amps / Circuit 2: 49.3 Amps / Single Wire Kit: 106.1 Amps
• Compatible With: ACiQ air handlers (including FJM air handlers)
• Equivalent Model: Carrier equivalent: KFFEH3301C20
• Safety Information: PROPOSITION 65 WARNING: This product may contain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.
