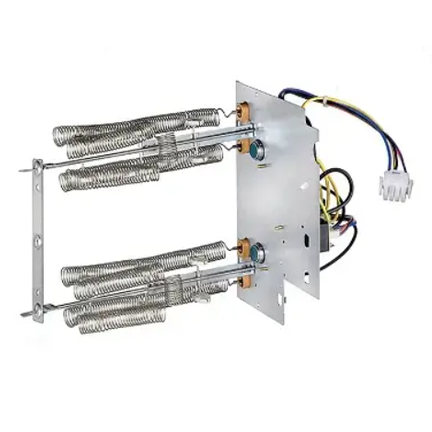

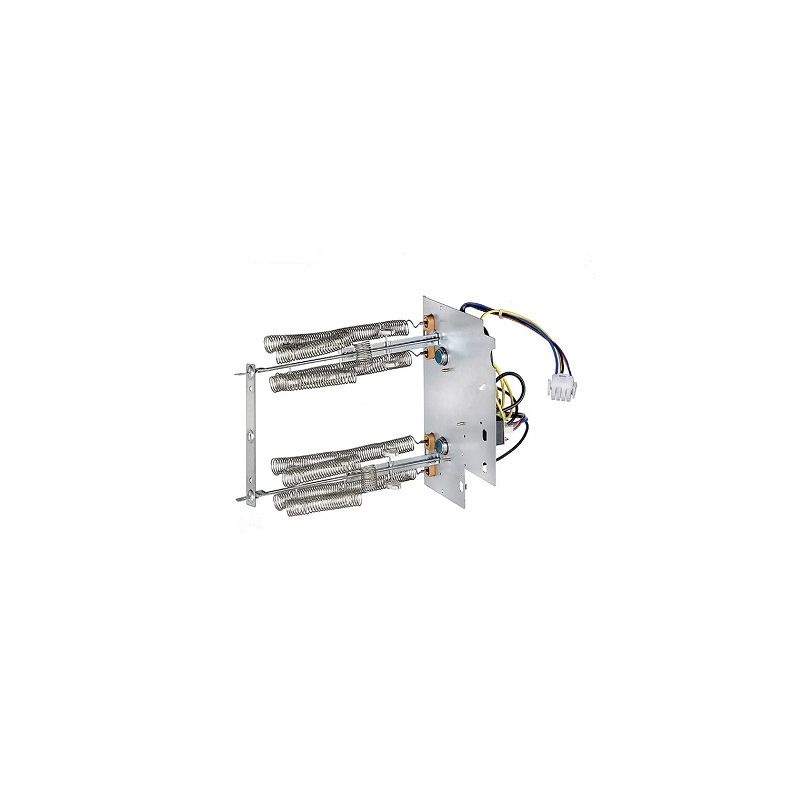

Aciq EHC15BKB 15 Kilowatt 47,100 BTU Electric Heater Coil (Carrier KFFEH3101C15)

Product Description

The Aciq EHC15BKB is a 15 kilowatt electric heater coil that produces 47,100 BTU of supplemental heat and is designed for installation in ACiQ air handlers. It operates on 208/230/240 V single-phase 60 Hz power and includes circuit breakers; minimum breaker sizes are Circuit 1: 56.9 A, Circuit 2: 24.6 A, or Single Wire Kit: 81.5 A. The unit weighs 9 lbs and lists Carrier equivalent model KFFEH3101C15.

• 15 kilowatts output, 47,100 BTU heating capacity
• Electrical: 208 / 230 / 240 V, single phase, 60 Hz; includes circuit breakers with specified minimum breaker sizes
• Compatible with ACiQ air handlers; Carrier equivalent MPN KFFEH3101C15

Product Highlights

15 kW electric heater coil for ACiQ air handlers; 47,100 BTU; 208/230/240 V single-phase; includes circuit breakers.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHC15BKB

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: EHC15BKB
• Power: 15 Kilowatts
• Heating BTU: 47,100 BTU
• Input Voltage: 208 / 230 / 240 V
• Frequency: 60 Hz
• Phase: Single Phase
• Includes: Circuit breakers
• Minimum Breaker Size: Circuit 1: 56.9 Amps; Circuit 2: 24.6 Amps; Single Wire Kit: 81.5 Amps
• Compatible With: ACiQ air handlers
• Equivalent MPN: Carrier KFFEH3101C15
