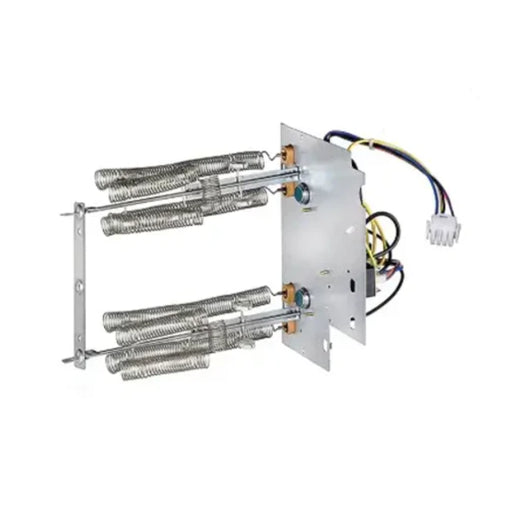

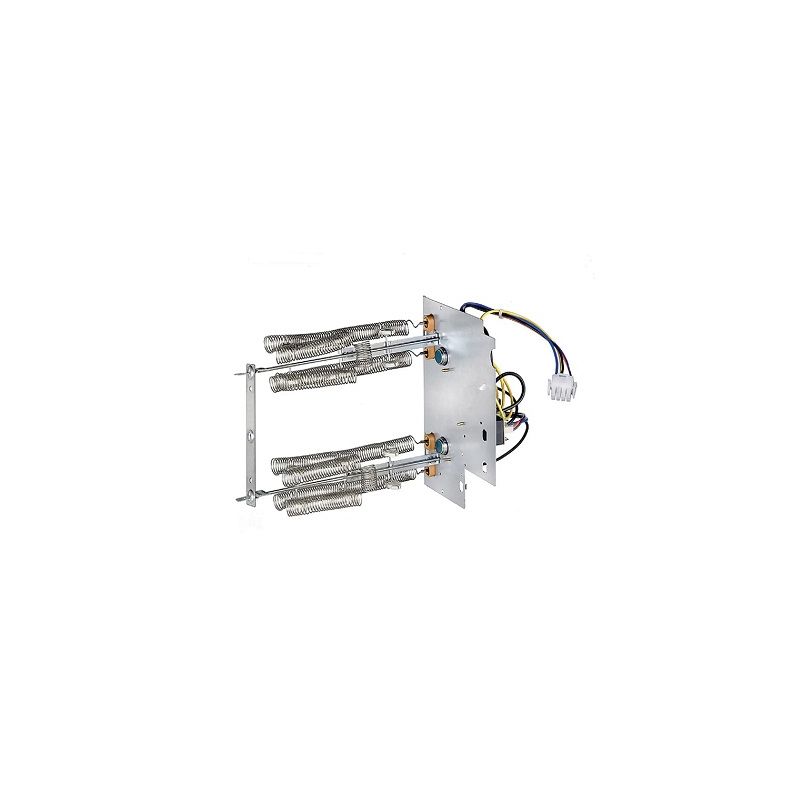

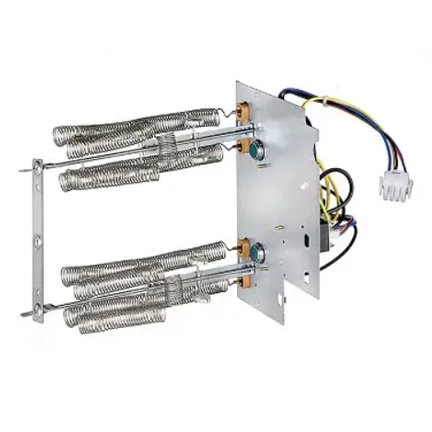

Aciq EHC10CKB 10 kilowatt electric heater coil (31,400 BTU)

Product Description

The Aciq EHC10CKB is a 10 kilowatt electric heater coil that delivers 31,400 BTU and is designed for compatible Aciq air handlers. It operates on 208/230 V single-phase, 60 Hz electrical systems and includes circuit breakers; the minimum breaker size is 52.9 amps. The coil weighs about 9 lbs and is intended to provide supplemental winter-time heating and integrate with air handler heating functions.

• Produces 31,400 BTU (10 kW) of electric heat
• Electrical: 208/230 V, single phase, 60 Hz; minimum breaker size 52.9 A; circuit breakers included
• Approximate weight 9 lbs; compatible with Aciq FJMA4X18L0AB air handler

Product Highlights

10 kW (31,400 BTU) electric heater coil for 208/230 V single-phase systems; includes circuit breakers; compatible with FJMA4X18L0AB air handler

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHC10CKB

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: EHC10CKB
• Heating BTU: 31,400 BTU
• Power: 10 Kilowatts
• Input Voltage: 208/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Minimum Breaker Size: 52.9 Amps
• Weight: 9 lbs
• Circuit Breakers Included: Yes
• Compatible Air Handler Model: FJMA4X18L0AB
