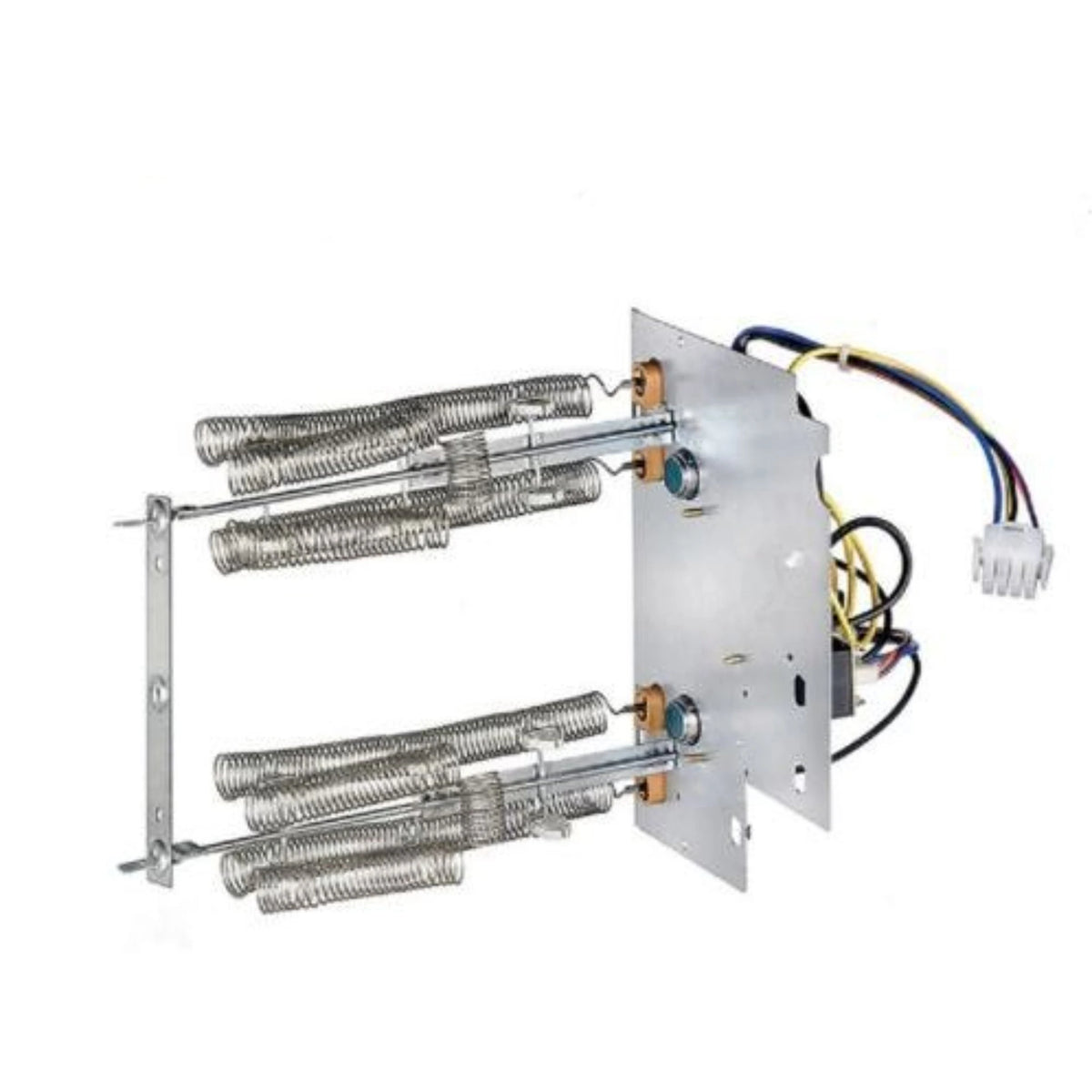

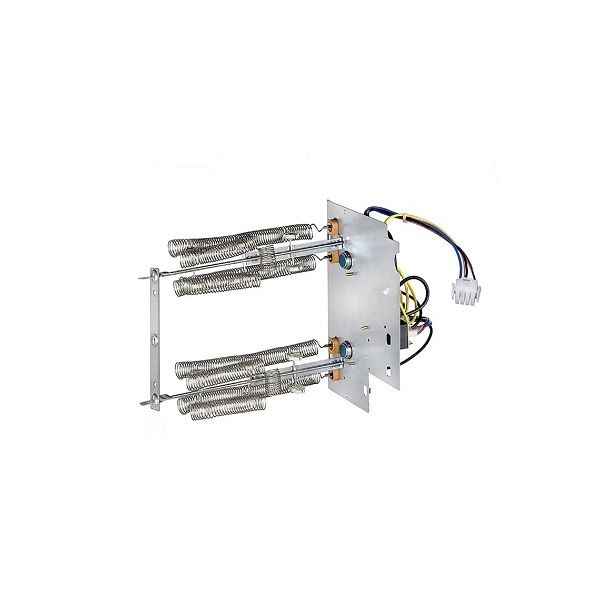

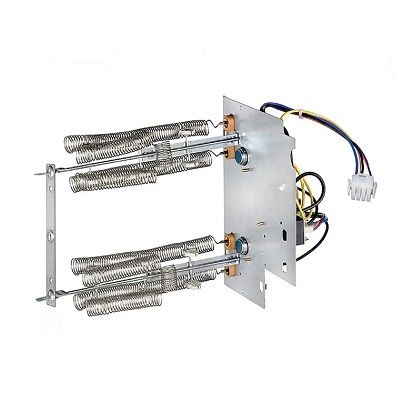

Aciq EHC07CKB 7 Kilowatt Electric Heater Coil 25,100 BTU (Heater Coil)

Product Description

The AciQ EHC07CKB is a 7 kilowatt electric heater coil intended for installation in compatible ACiQ air handlers to provide winter-time heating. It produces 25,100 BTU and operates on 208/230 V single-phase 60 Hz power, includes circuit breakers, and requires a minimum breaker size of 43 Amps. The unit weight is 9 lb and it is specified for use with compatible air handler models such as FJMA4X18L0AB.

• Produces 25,100 BTU of heat (7 kW) for supplemental heating
• Electrical: 208/230 V, single phase, 60 Hz; minimum breaker size 43.0 Amps
• Includes circuit breakers and is designed for installation in ACiQ air handlers

Product Highlights

7 kW heater coil for ACiQ air handlers; 25,100 BTU output; 208/230 V single-phase operation

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHC07CKB

Technical Specifications

• Model: EHC07CKB
• Brand: AciQ
• Power: 7 Kilowatts
• Heating BTU: 25,100
• Input Voltage: 208/230 V
• Phase: Single Phase
• Frequency: 60 Hz
• Minimum Breaker Size: 43.0 Amps
• Includes: Circuit breakers
• Compatible With: ACiQ air handlers (compatible with model FJMA4X18L0AB)
• Weight: 9.00 lb
• SKU: EHC07CKB
