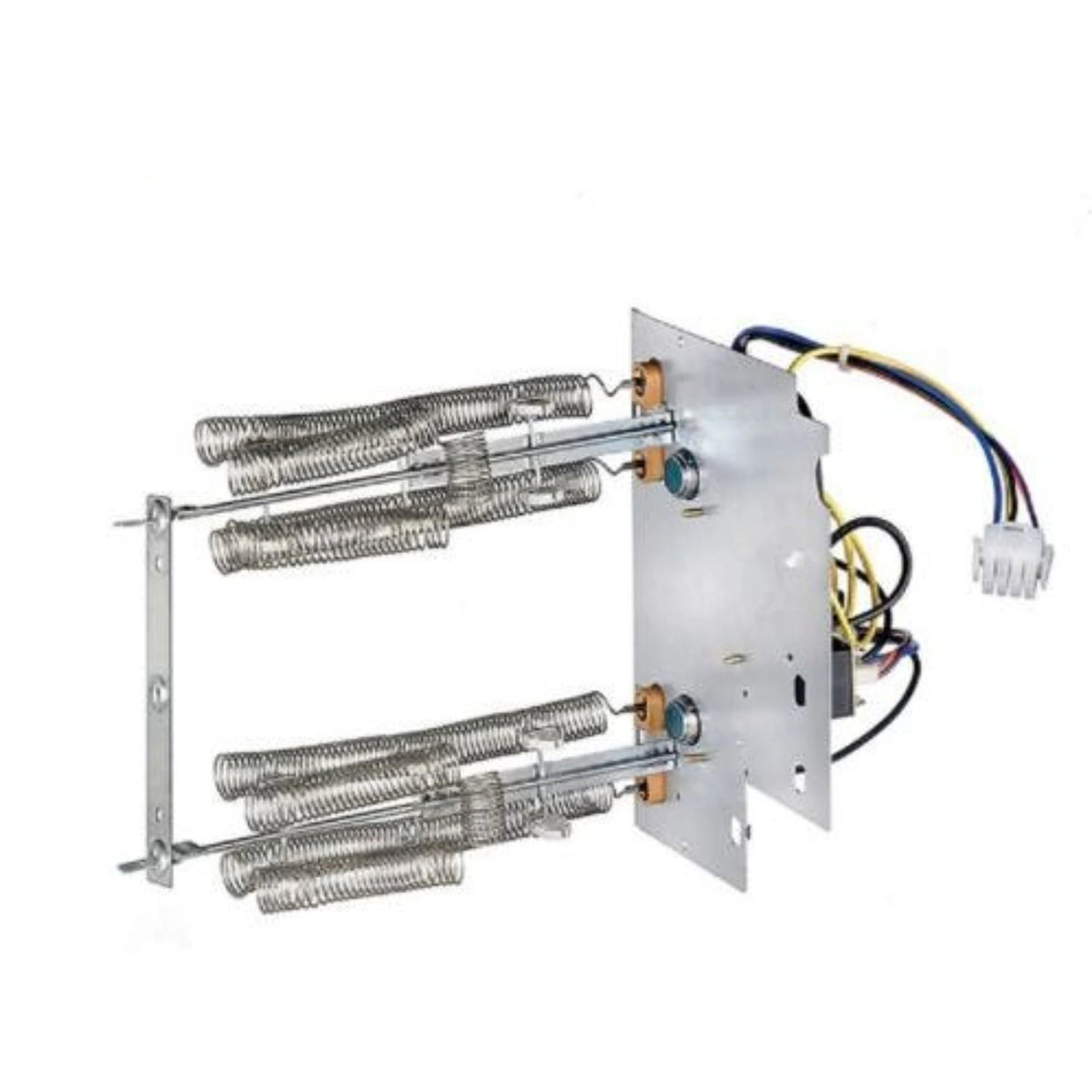

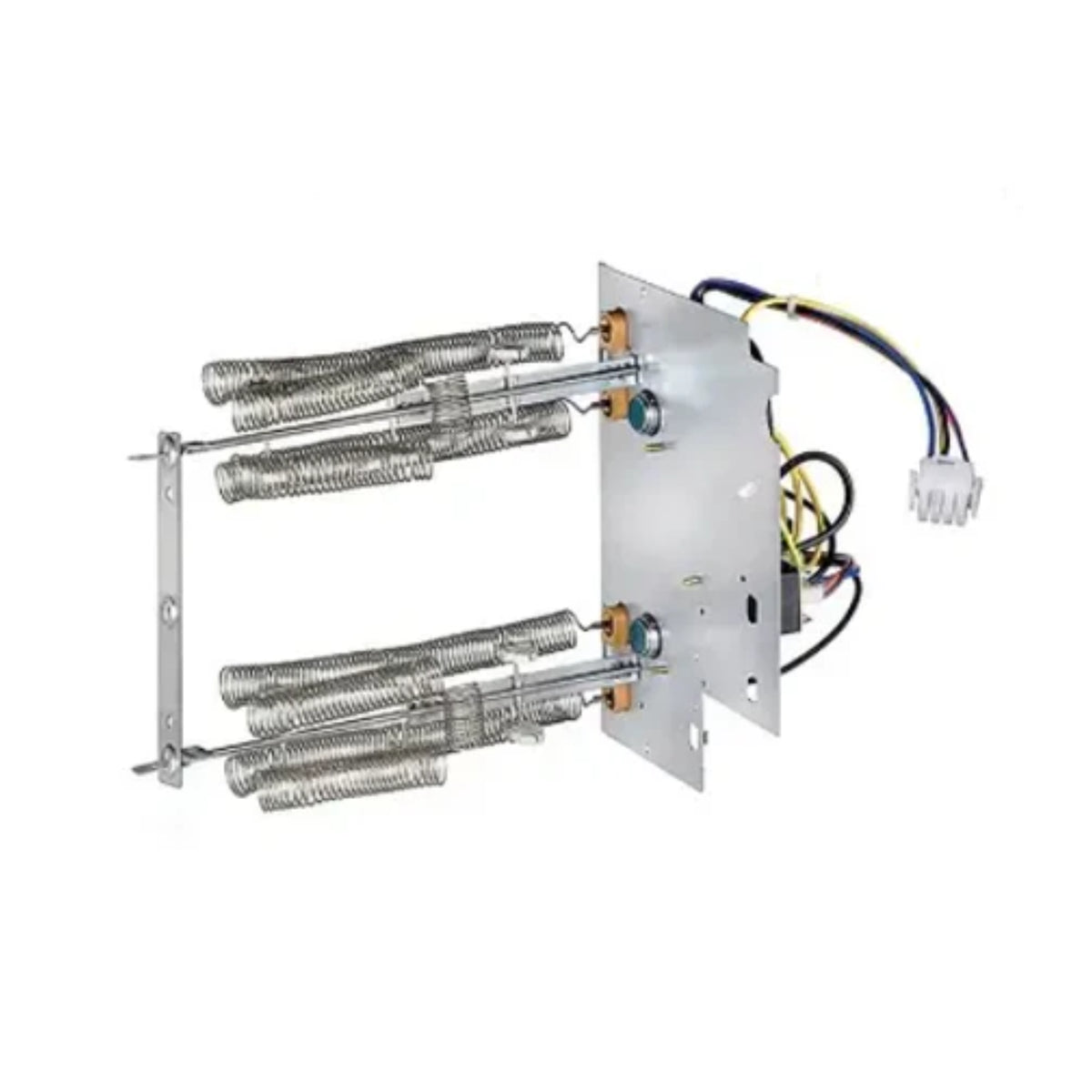

Aciq EHC05BKB Electric Heater Coil 5 kW (15,700 BTU)

Product Description

Aciq EHC05BKB is a 230-volt electric heater coil that delivers 5 kilowatts (15,700 BTU) of supplemental heat for compatible Aciq air handlers. The coil is designed for 208/230 V single-phase, 60 Hz electrical systems and includes built-in circuit breakers. It integrates with air handler airflow to provide wintertime heating and requires a minimum circuit breaker sized at 28.3 amps.

• Heating output: 5 kW (15,700 BTU); weight approximately 9 lbs
• Electrical: 208/230 V input, single phase, 60 Hz; minimum breaker size 28.3 Amps
• Includes built-in circuit breakers for overcurrent protection and integration with Aciq air handlers

Product Highlights

230 V, 5 kW heater coil (15,700 BTU) for 208/230 V single-phase systems with built-in circuit breakers and 28.3 A minimum breaker requirement.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EHC05BKB

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: EHC05BKB
• SKU: EHC05BKB
• Product Name: Electric heater coil
• Heating Output (BTU): 15,700 BTU
• Power: 5 kW
• Input Voltage: 208/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Minimum Breaker Size: 28.3 Amps (see notes)
• Protection: Built-in circuit breakers
• Weight: 9.0 lbs
• Compatibility: Designed for integration with Aciq air handlers
• Safety Information: California Proposition 65 warning: this product may contain chemicals known to the State of California to cause cancer or reproductive harm.
