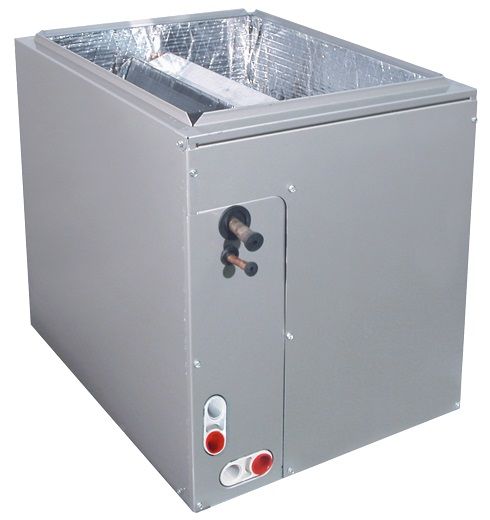

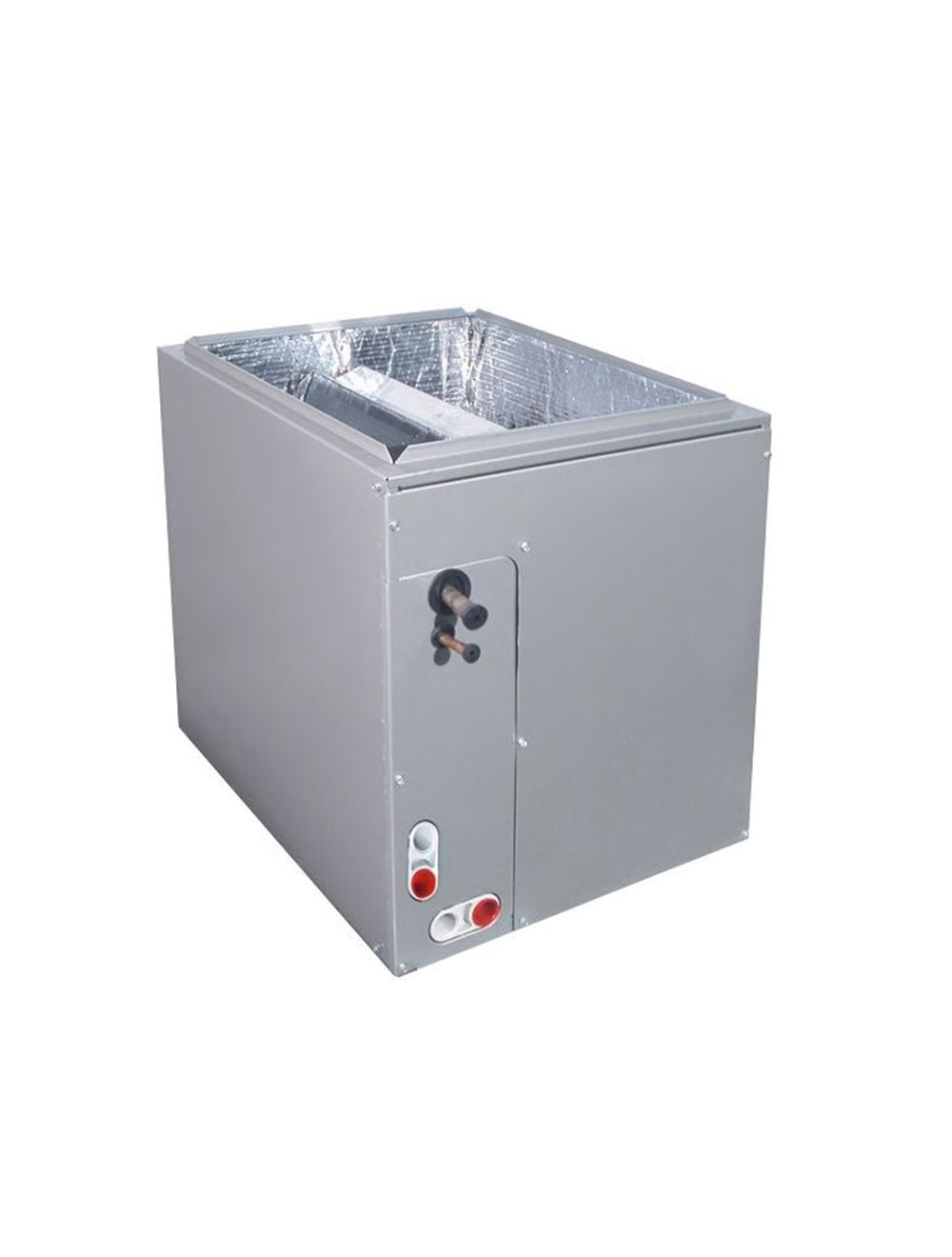

Aciq EAM5X19M17A Multi-Positional Evaporator Cased Coil 1.5 Ton (17.5 in width) Replaces EAM4X19L17A

Product Description

ACIQ EAM5X19M17A is a 1.5 ton multi-positional cased evaporator coil designed for upflow, downflow, or horizontal installations. The unit includes a factory-installed TXV kit and is compatible with R454B refrigerant and both AC-only and heat pump condensers. It uses sweat connections (3/8" liquid, 5/8" suction), measures 17-1/2" W x 20-5/8" D x 25-13/16" H, and requires pairing with a compatible condenser and blower or furnace.

• Multi-positional A-coil for upflow, downflow, or horizontal installation with dual drain options and tool-free front access
• Factory-installed TXV for optimized charge; compatible with R454B and AC-only or heat pump condensers
• Sweat connections: 3/8" liquid line, 5/8" suction line; dimensions 17-1/2" W x 20-5/8" D x 25-13/16" H; 66.5 lb unit weight

Product Highlights

1.5 ton multi-positional A-coil with factory TXV, R454B compatible, sweat connections, UL listed

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAM5X19M17A

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: EAM5X19M17A
• Model Number: EAM5X19M17A
• Replaces: EAM4X19L17A
• Equivalent: Carrier: CAPMP1814ALA; Tempstar: EAM4X18L14A; Bryant: CAPMP1814ALA
• Tonnage: 1.5 Ton
• Configuration: Multi-Positional (upflow, downflow, horizontal)
• Style: A-Coil (cased evaporator coil)
• Refrigerant: R454B
• TXV: Factory-installed TXV kit
• Connection Type: Sweat
• Liquid Line Connection Size: 3/8"
• Suction Line Connection Size: 5/8"
• Dimensions: 25-13/16" H x 17-1/2" W x 20-5/8" D
• Width: 17 1/2"
• Depth: 20 5/8"
• Height: 25 13/16"
• Weight: 66.5 lbs
• Certification: UL Listed
• Installation: Requires pairing with compatible condenser and blower or furnace
• Category: 1.5 Ton - Cased evaporator coil
