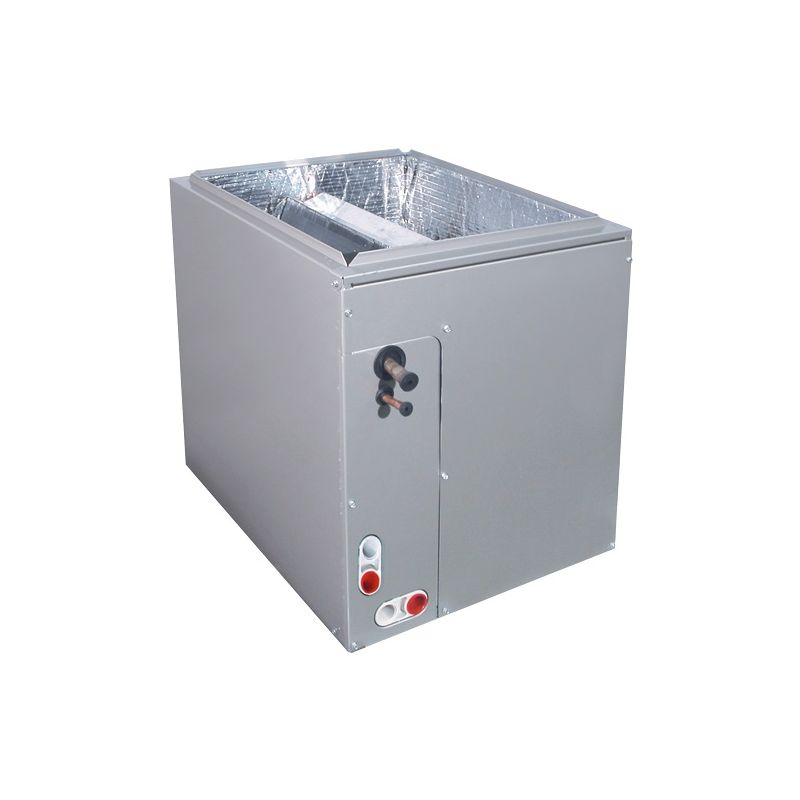

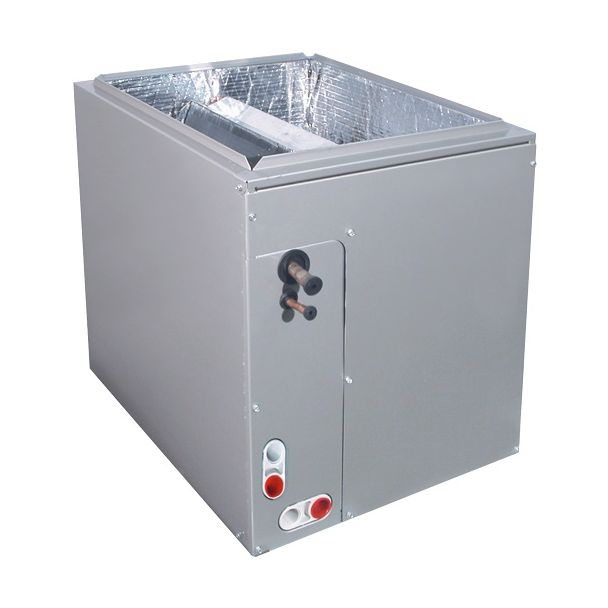

Aciq EAM4X60L24A-COIL00249 Multi-Positional Evaporator Cased Coil 5 Ton (24.5 in Width) CAPMP6024ALA

Product Description

The Aciq EAM4X60L24A-COIL00249 is a 5-ton multi-positional cased evaporator coil for R410A residential HVAC systems. It includes a factory-integrated TXV kit to regulate refrigerant flow and supports upflow, downflow, or horizontal installations. The coil is designed to pair with AC-only or heat pump condensers and requires an external condenser and a blower or furnace to operate. Physical specs include 35 in H, 24.5 in W, 20 5/8 in D, 3/8 in liquid line, and 7/8 in suction line.

• 5-ton multi-positional cased evaporator coil with factory-installed TXV for R410A systems
• Supports upflow, downflow, or horizontal orientations; pairs with AC-only or heat pump condensers; requires external condenser and blower or furnace
• Dimensions: 35 in H x 24.5 in W x 20 5/8 in D; liquid line 3/8 in; suction line 7/8 in; weight 101 lb; UL listed

Product Highlights

Factory-integrated TXV; Multi-positional (upflow/downflow/horizontal); Compatible with R410A AC-only or heat pump condensers

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAM4X60L24A-COIL00249

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: EAM4X60L24A-COIL00249
• Equivalent Models: Carrier CAPMP6024ALA; Bryant CAPMP6024ALA; Tempstar EAM4X60L24A
• Tonnage: 5 Ton
• Refrigerant: R410A
• Configuration: Multi-Positional
• Orientation: Upflow, Downflow, Horizontal
• Style: A-Coil (cased evaporator)
• Integrated Component: Factory-installed TXV kit
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Height: 35 in
• Width: 24.5 in
• Depth: 20 5/8 in
• Weight: 101 lb
• Certification: UL Listed
• Required Components: Condenser and blower or furnace (sold separately)
