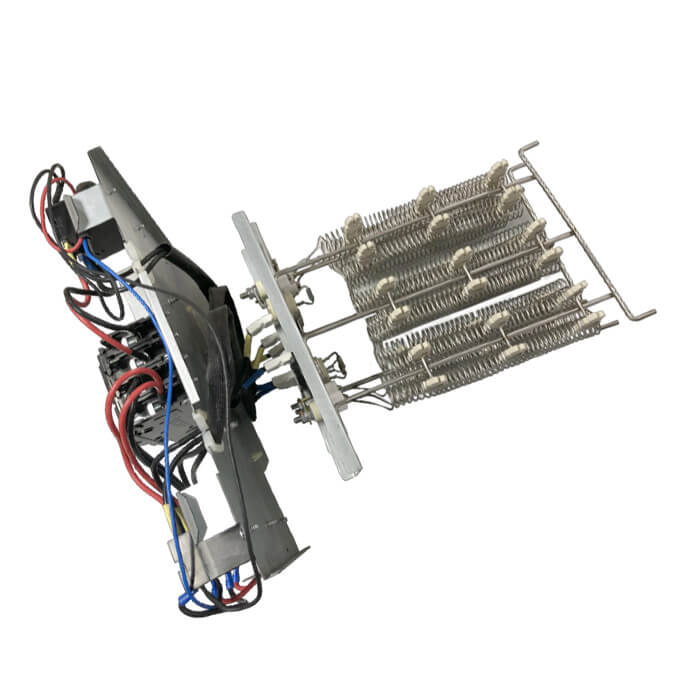

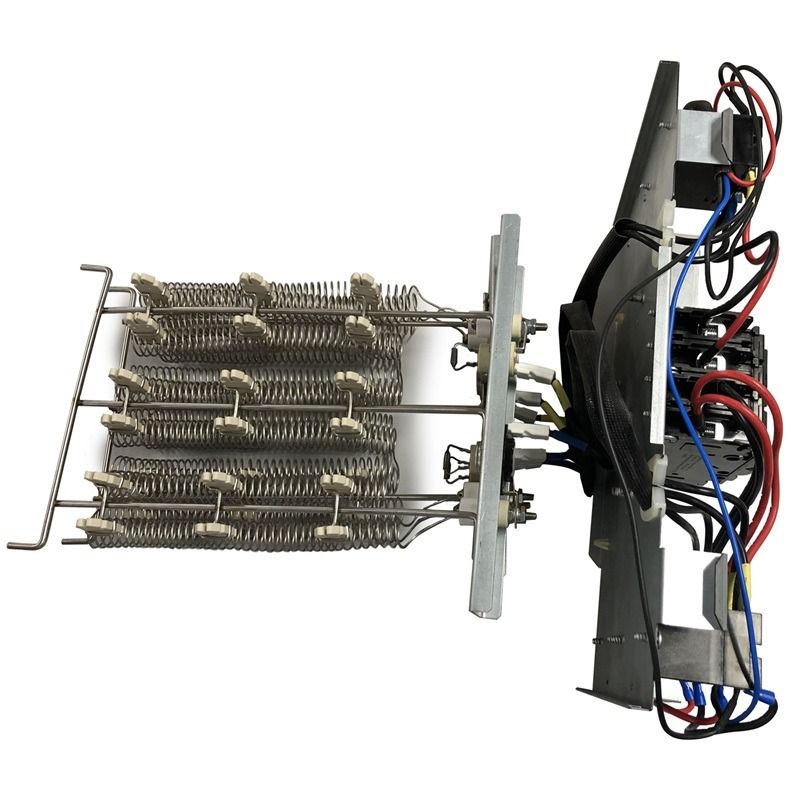

Aciq EAH-20TD 20 kW Electric Heater Coil (208/230V 1 Ph)

Product Description

The ACiQ EAH-20TD is a 20 kW electric heater coil for integration into ACiQ unitary air handlers. It delivers 68,200 BTU of electric heat at 208/230 V, single phase, 60 Hz and includes a built-in circuit breaker. The unit is UL-certified and is compatible with ACiQ-48TD-AH and ACiQ-60TD-AH air handlers. It adds straight electric heating for backup or supplemental heat and offers up to 60% energy savings versus electric strip heat-only models.

• 20 kW electric heat, 68,200 BTU output
• Electrical: 208/230 V, single phase, 60 Hz; includes built-in circuit breaker
• UL-certified; compatible with ACiQ-48TD-AH and ACiQ-60TD-AH

Product Highlights

20 kW electric heater coil with built-in circuit breaker for ACiQ unitary air handlers

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-20TD

Technical Specifications

• Brand: ACiQ
• Model: EAH-20TD
• Power: 20 kW
• Heating Capacity: 68,200 BTU
• Input Voltage: 208/230 V
• Phase: Single
• Frequency: 60 Hz
• Includes: Built-in circuit breaker
• Certifications: UL certified
• Compatible Units: ACiQ-48TD-AH; ACiQ-60TD-AH
• Manufacturer ID: 205161
• Application: Backup or supplemental electric heat for ACiQ unitary air handlers and cabinet systems
• Product Type: Electric heater coil
