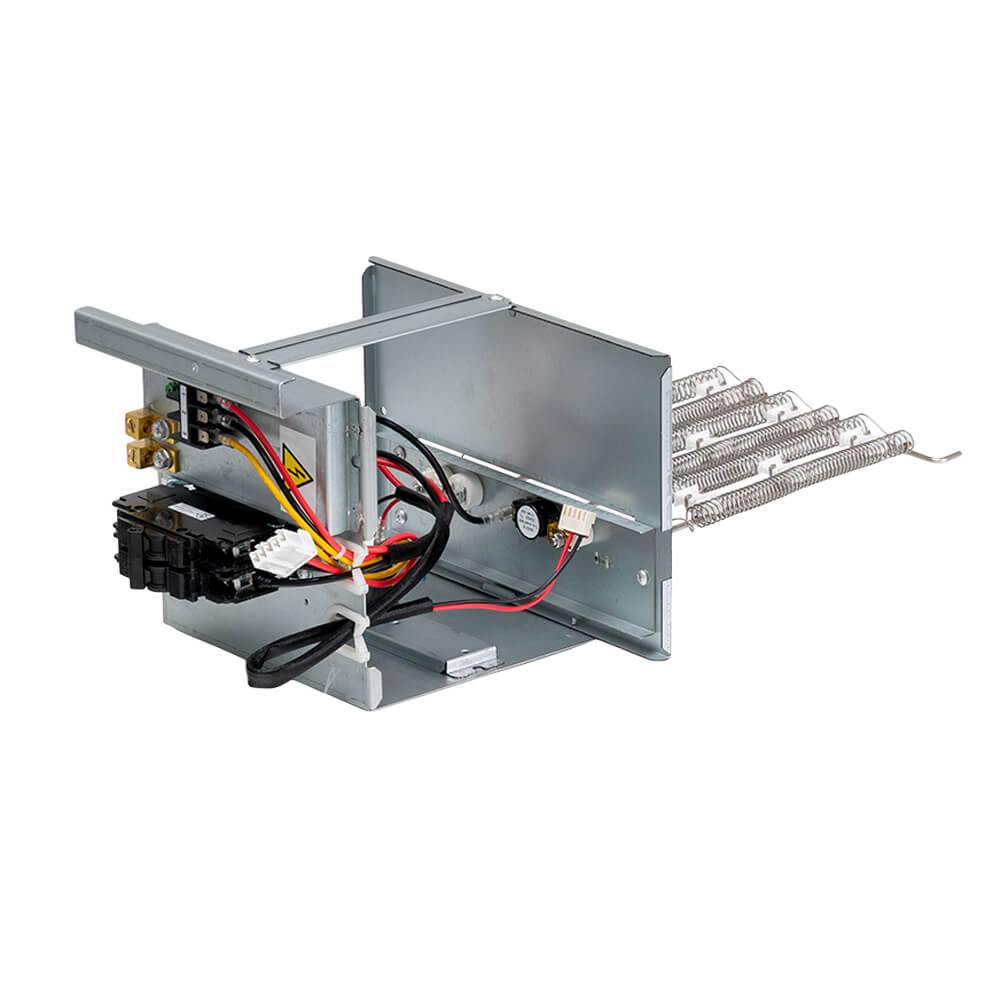

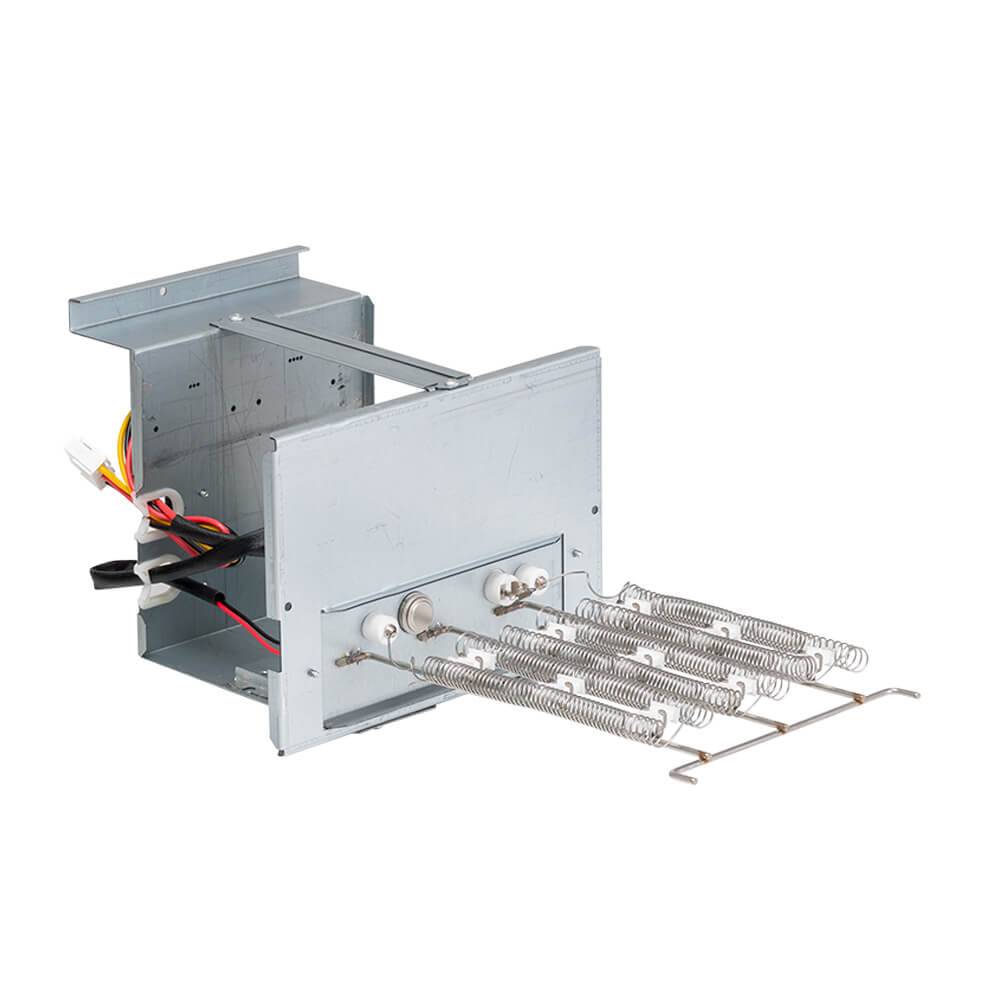

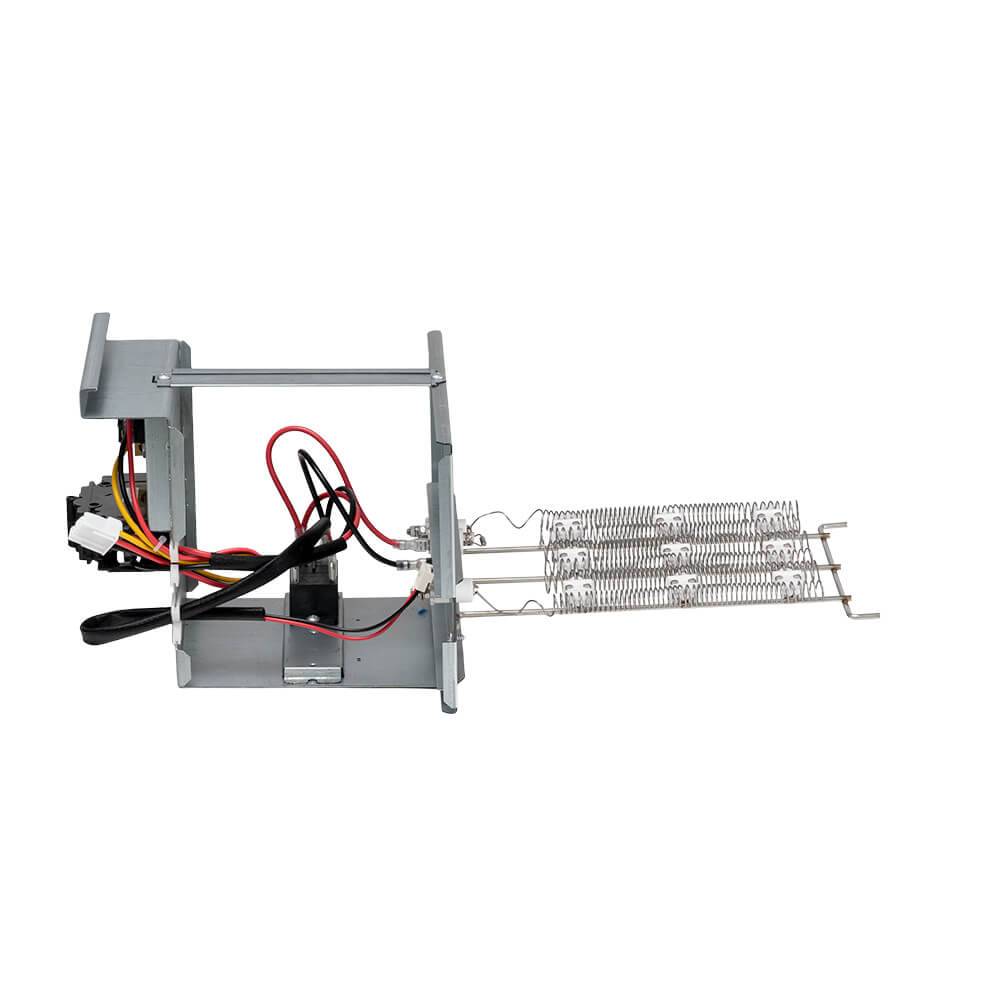

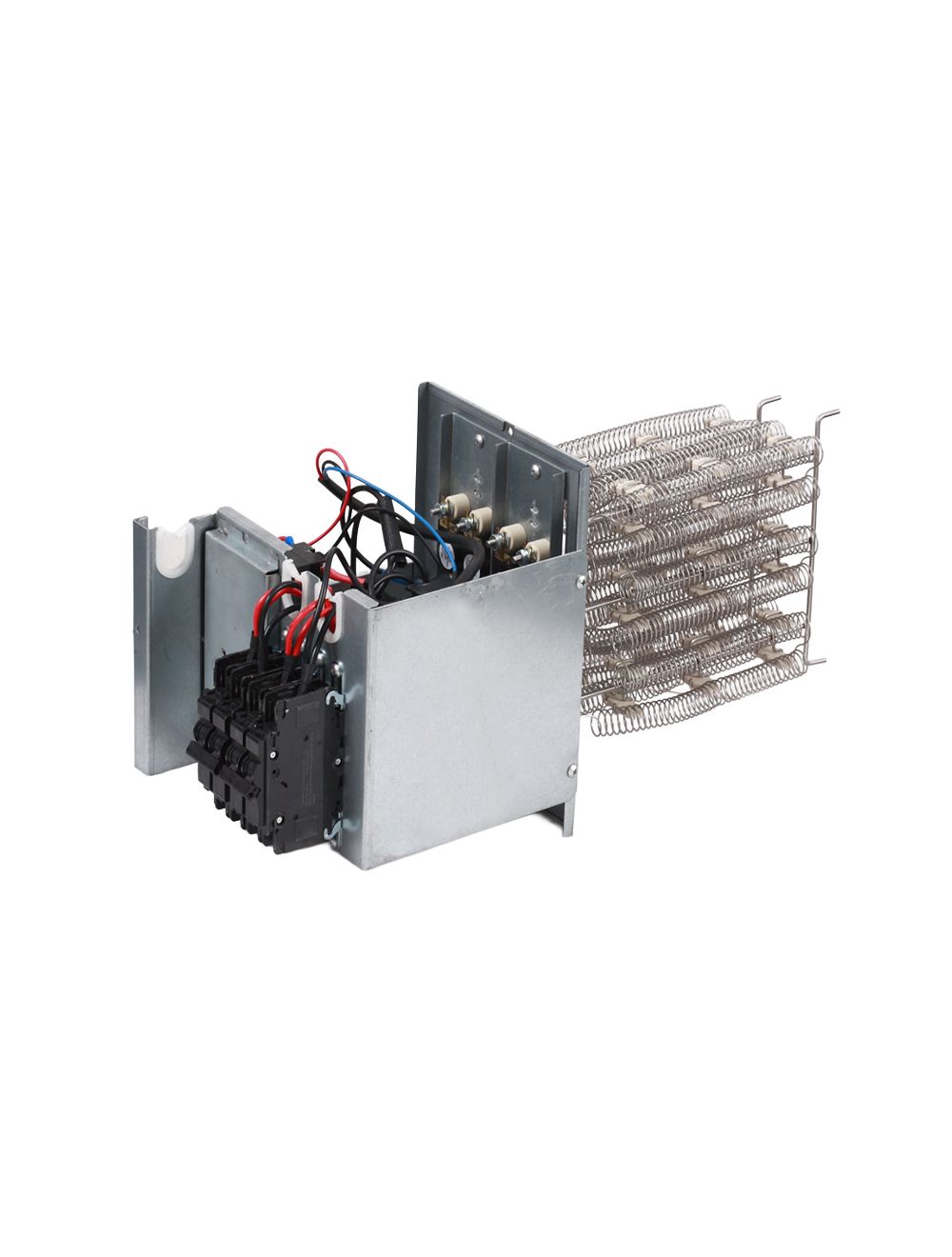

Aciq EAH-20C(UL) Electric Heater Coil 20 kW (68,200 BTU)

Product Description

Aciq EAH-20C(UL) is a UL-listed supplemental electric heater coil rated at 20 kW for use with ACiQ unitary air handlers. The heater accepts 208V/230V/240V single-phase electrical supply and provides supplemental heat capacity for ducted heat pump systems. It is compatible with ACiQ-36-AHD, ACiQ-42-AHD, ACiQ-48-AHD and ACiQ-60-AHD air handlers and is offered in a compact enclosure with documented dimensions.

• 20 kW electric heater coil for supplemental electric heating; supported output ~68,200 BTU (20 kW ≈ 68,243 BTU/hr).
• Electrical: 208V/230V/240V input, single phase; frequency 60 Hz.
• Compatible with ACiQ-36-AHD, ACiQ-42-AHD, ACiQ-48-AHD and ACiQ-60-AHD unitary air handlers; UL-listed compact design.

Product Highlights

UL-listed 20 kW supplemental electric heater coil compatible with ACiQ AHD series air handlers; compact dimensions for retrofit or new installations.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-20C(UL)

Technical Specifications

• Brand: Aciq
• Model Number: EAH-20C(UL)
• Power: 20 kW
• Supported Output: 68,200 BTU (approx. 20 kW × 3412 BTU/kW = 68,243 BTU)
• Input Voltage: 208V/230V/240V
• Phase: Single Phase
• Frequency: 60 Hz
• Compatible Air Handlers: ACiQ-36-AHD, ACiQ-42-AHD, ACiQ-48-AHD, ACiQ-60-AHD
• Dimensions: 21.06 in W x 10.16 in D x 8.03 in H
• Weight (declared): 10 lbs
• SKU: 5190
• UPC: 810175550725
• Listing/Certification: UL-listed
