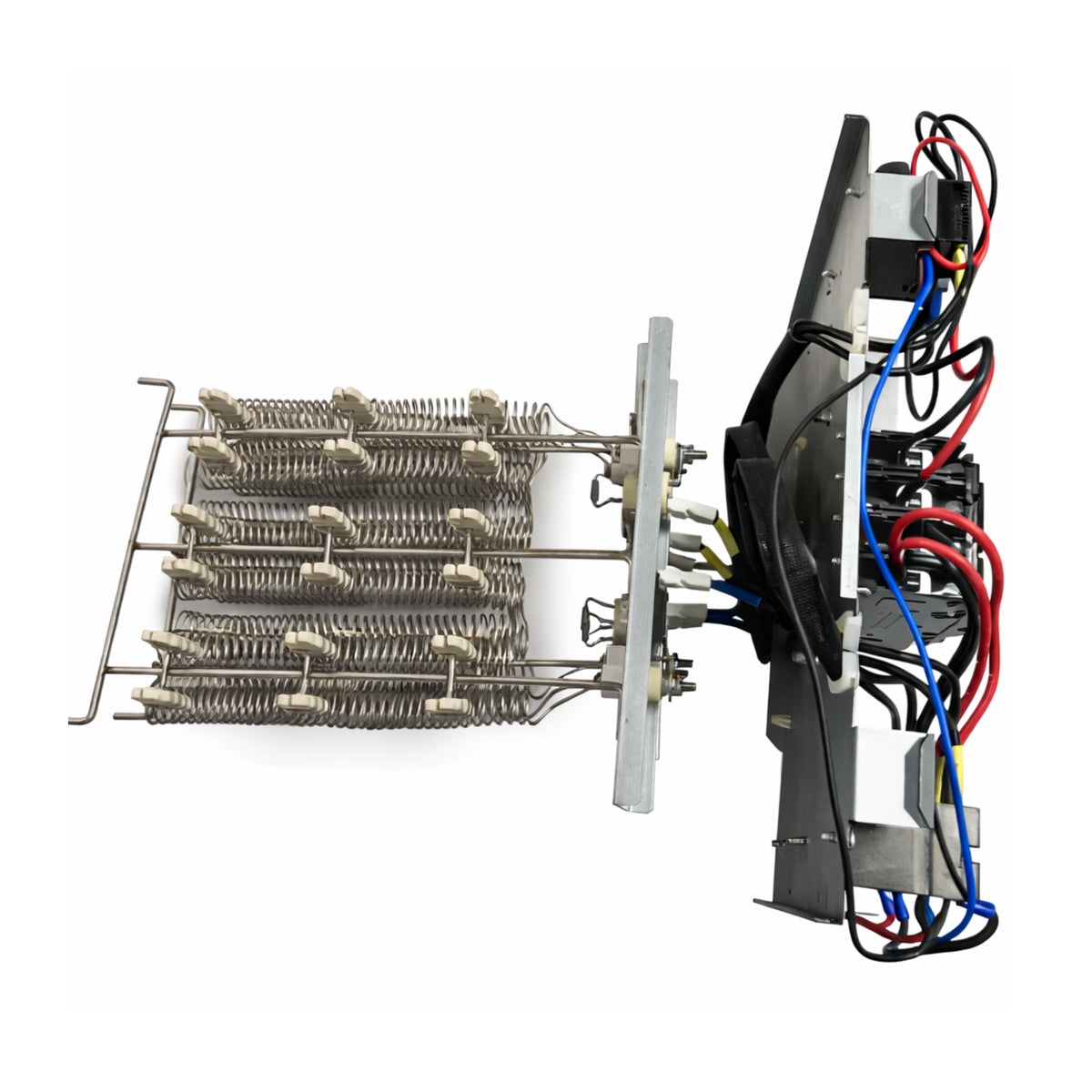

Aciq EAH-20-E-32 Essentials 20 Kilowatt Electric Heat Kit (20 kW)

Product Description

The Aciq EAH-20-E-32 is a 20 kW electric heat kit for ACiQ Essentials unitary ducted heat pump systems, delivering approximately 68,200 BTU of supplemental electric heat. It operates on 208/240 V single-phase, 60 Hz power and integrates with ACIQ-48-AH-E-32 and ACIQ-60-AH-E-32 air handlers. The kit measures 9.84 x 13.78 x 11.81 inches and weighs about 9.48 lb.

• 20 kilowatts electric heat capacity producing ~68,200 BTU
• Electrical: 208/240 V, single-phase, 60 Hz
• Compatible with ACIQ-48-AH-E-32 and ACIQ-60-AH-E-32 unitary air handlers; compact dimensions for in-unit installation

Product Highlights

20 kW electric heat kit for ACiQ Essentials air handlers; 68,200 BTU; 208/240 V single-phase 60 Hz; compact size and 9.48 lb weight.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-20-E-32

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: EAH-20-E-32
• Model / SKU: EAH-20-E-32
• Product ID: 219186
• Power: 20 kilowatts
• Heating Capacity: 68,200 BTU
• Input Voltage: 208/240 V
• Phase: Single-phase
• Frequency: 60 Hz
• Compatible Air Handlers: ACIQ-48-AH-E-32; ACIQ-60-AH-E-32
• Dimensions (H x W x D): 9.84 in x 13.78 in x 11.81 in
• Weight: 9.48 lb
