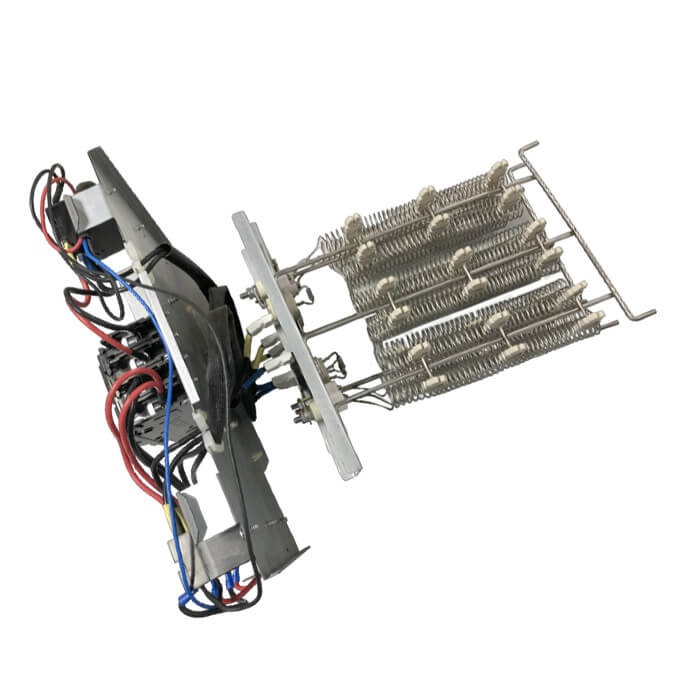

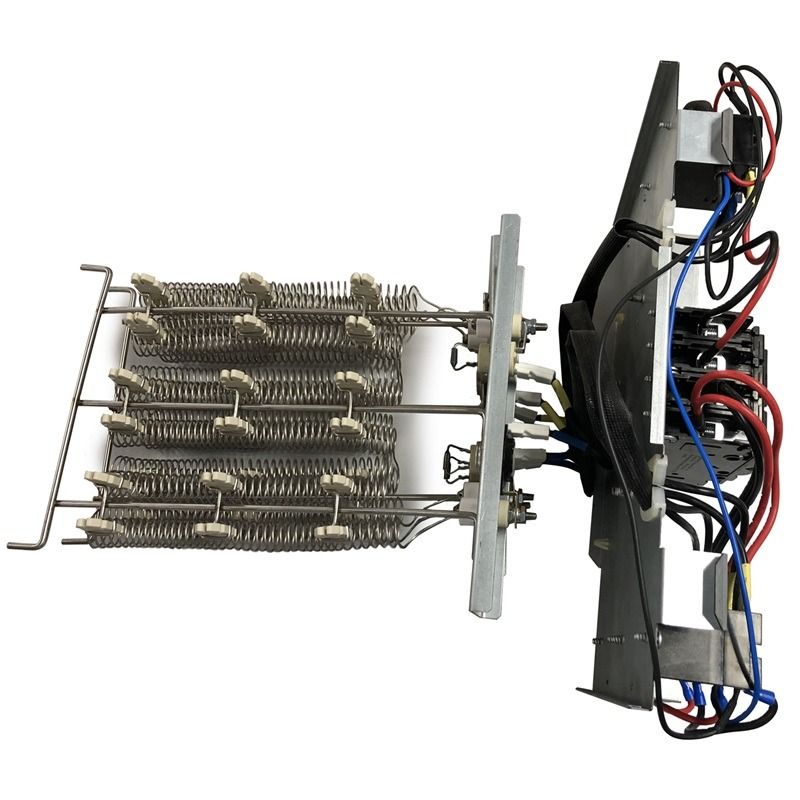

Aciq EAH-10TD Electric Heat Kit 10 kW (Compatible with Aciq-24TD-AH/36TD-AH/48TD-AH/60TD-AH)

Product Description

The ACiQ EAH-10TD is a 10 kW electric heat kit designed for ACiQ unitary ducted heat pump air handlers. It supplies approximately 34,100 BTU of electric heat and operates on 208/230 V single-phase, 60 Hz electrical service. The kit includes a circuit breaker and is intended to provide backup or supplemental straight electric heating for compatible ACiQ air handler models.

• 10 kW electric heat output, rated at approximately 34,100 BTU; includes circuit breaker
• Electrical: 208/230 V, single-phase, 60 Hz; compatible with ACiQ-24TD-AH, 36TD-AH, 48TD-AH, 60TD-AH
• Part of ACiQ top-discharge heat pump systems; UL-certified electric heater coil family; weight approximately 8 lbs

Product Highlights

10 kW electric heat kit for ACiQ unitary air handlers; ~34,100 BTU; 208/230 V single-phase 60 Hz; includes circuit breaker

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-10TD

Technical Specifications

• Model: EAH-10TD
• Brand: ACiQ
• Electric Heat: 10 kW
• Heating Capacity: 34,100 BTU/hr
• Input Voltage: 208/230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Weight: 8 lbs
• Compatible Air Handlers: ACiQ-24TD-AH; ACiQ-36TD-AH; ACiQ-48TD-AH; ACiQ-60TD-AH
• Includes: Circuit breaker
• Mounting Type: Top-discharge compatible
• Certifications: UL-certified (heater coil family)
