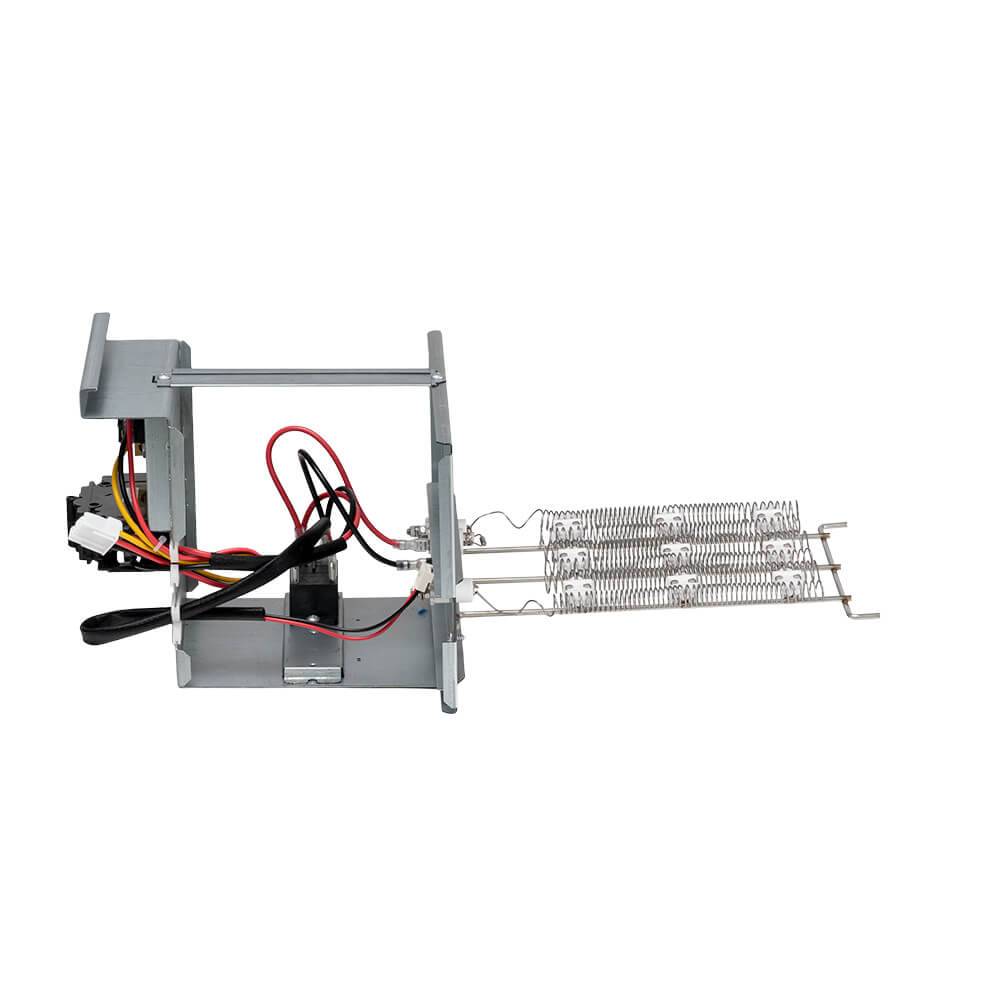

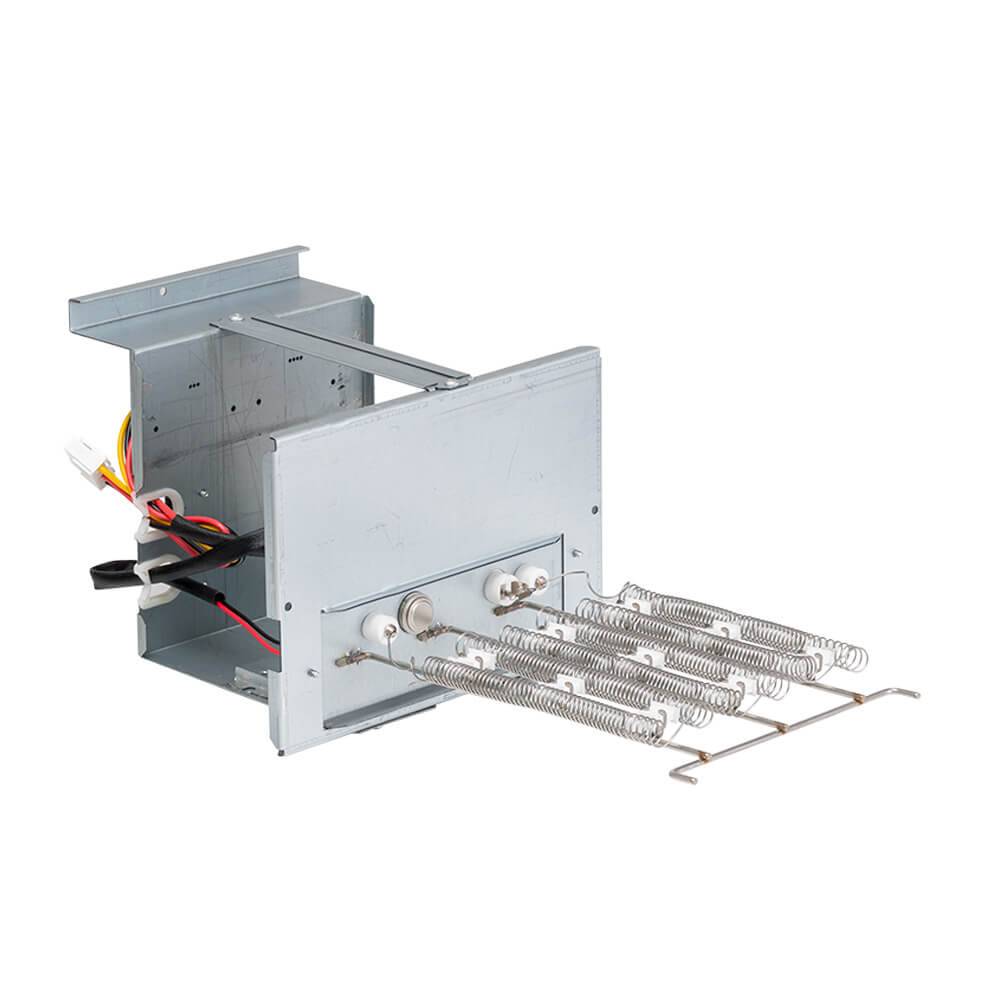

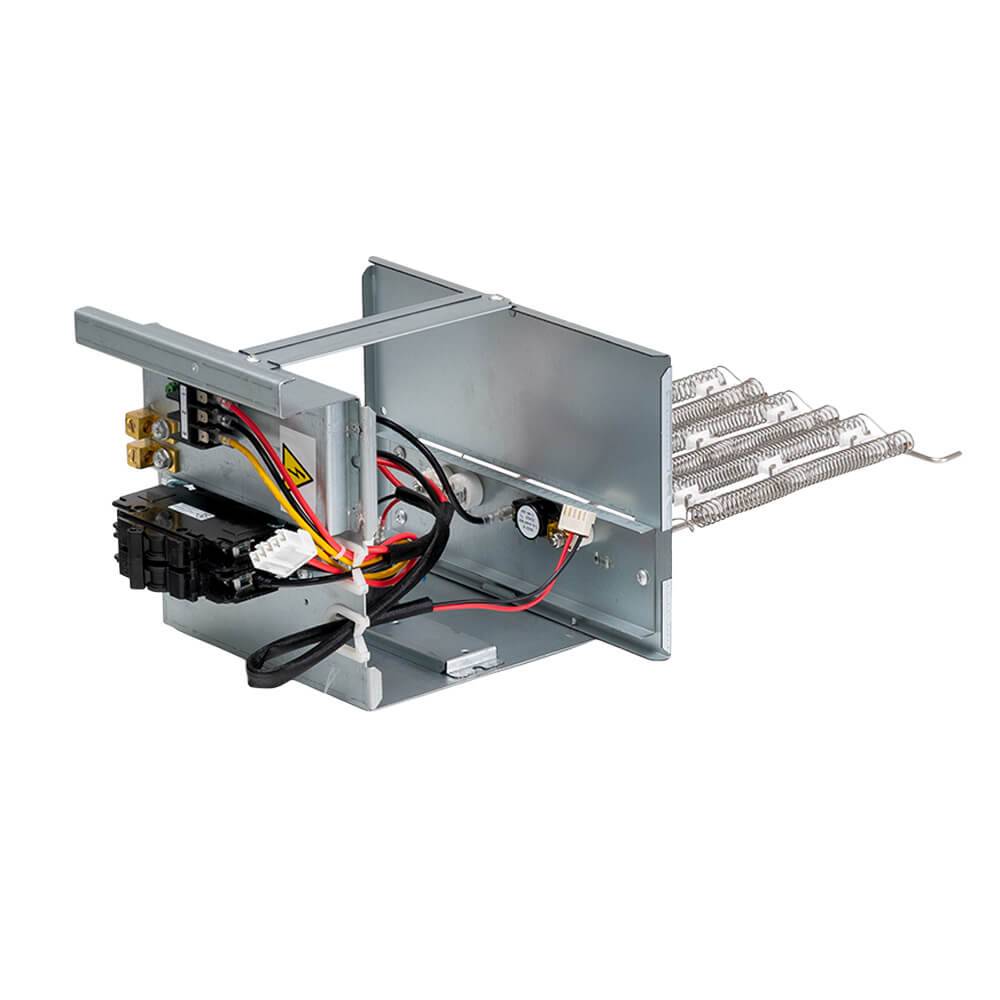

Aciq EAH-10C(UL) Electric Heater Coil 10 kW (34,100 BTU)

Product Description

Aciq EAH-10C(UL) is a compact, UL-listed supplemental electric heater coil that provides 10 kW of straight electric heat and 34,100 BTU heating capacity for compatible ACiQ unitary air handlers. It operates on 208V/230V/240V single-phase electrical service and is designed for installation in ACiQ ducted heat pump systems. The unit is intended to add auxiliary heat and offers up to 60% energy savings versus electric strip heat-only models.

• 10 kW electric heat with 34,100 BTU heating capacity; UL-listed
• Electrical: 208V/230V/240V, single phase; 60 Hz frequency listed by manufacturer
• Compatible with ACiQ-18-AHD, ACiQ-24-AHD, ACiQ-30-AHD, ACiQ-36-AHD; compact dimensions for unitary air handler installation

Product Highlights

10 kW supplemental electric heater coil; 34,100 BTU; UL-listed; compatible with select ACiQ unitary air handlers

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-10C(UL)

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: EAH-10C(UL)
• Model: EAH-10C(UL)
• Power (kW): 10 kW
• Heating Capacity (BTU/hr): 34,100 BTU/hr
• Input Voltage: 208V/230V/240V
• Frequency: 60 Hz
• Phase: Single
• Compatible Air Handlers: ACiQ-18-AHD, ACiQ-24-AHD, ACiQ-30-AHD, ACiQ-36-AHD
• Weight: 8 lbs
• Dimensions (H x W x D): 8.03 in x 21.06 in x 10.16 in
• Certifications: UL-listed
