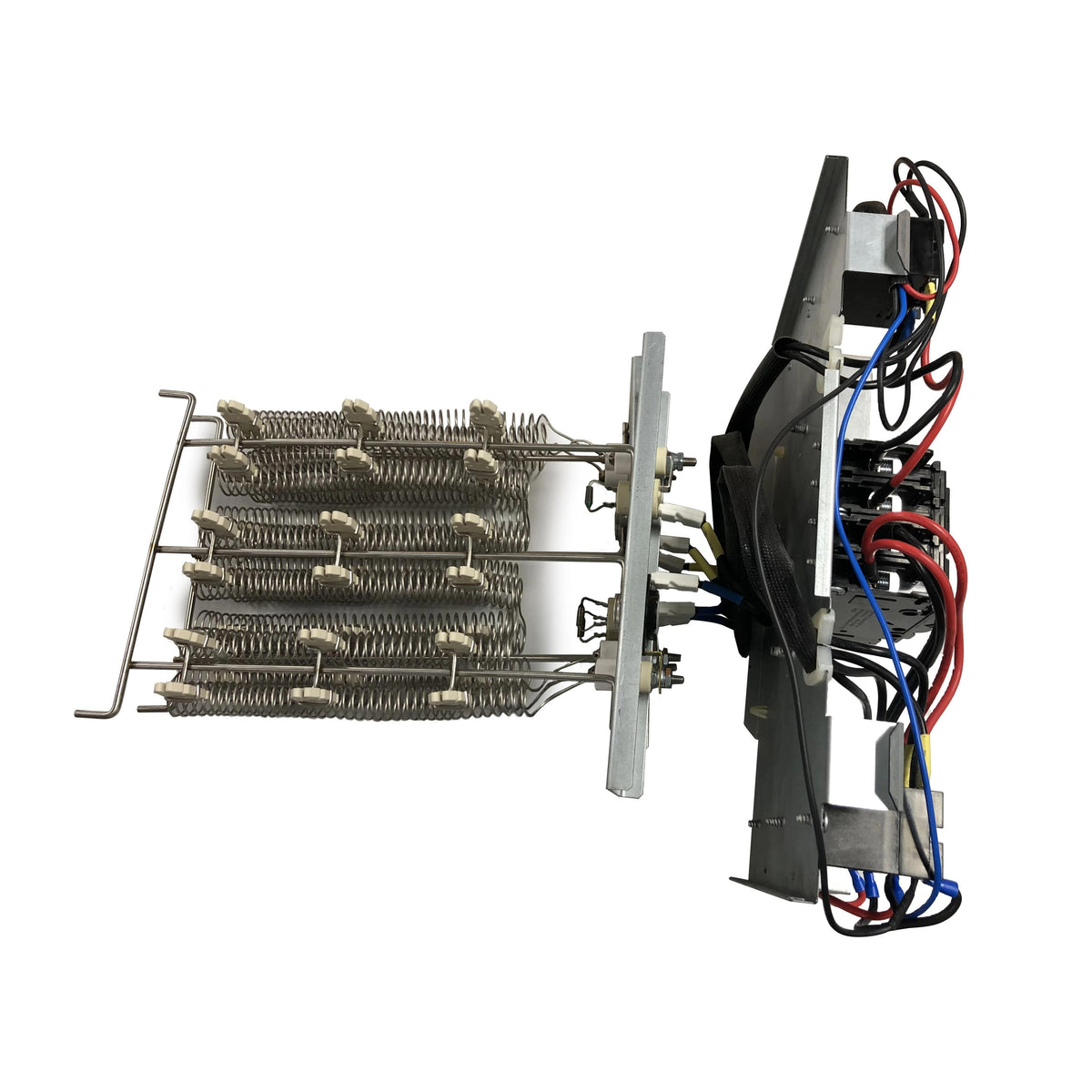

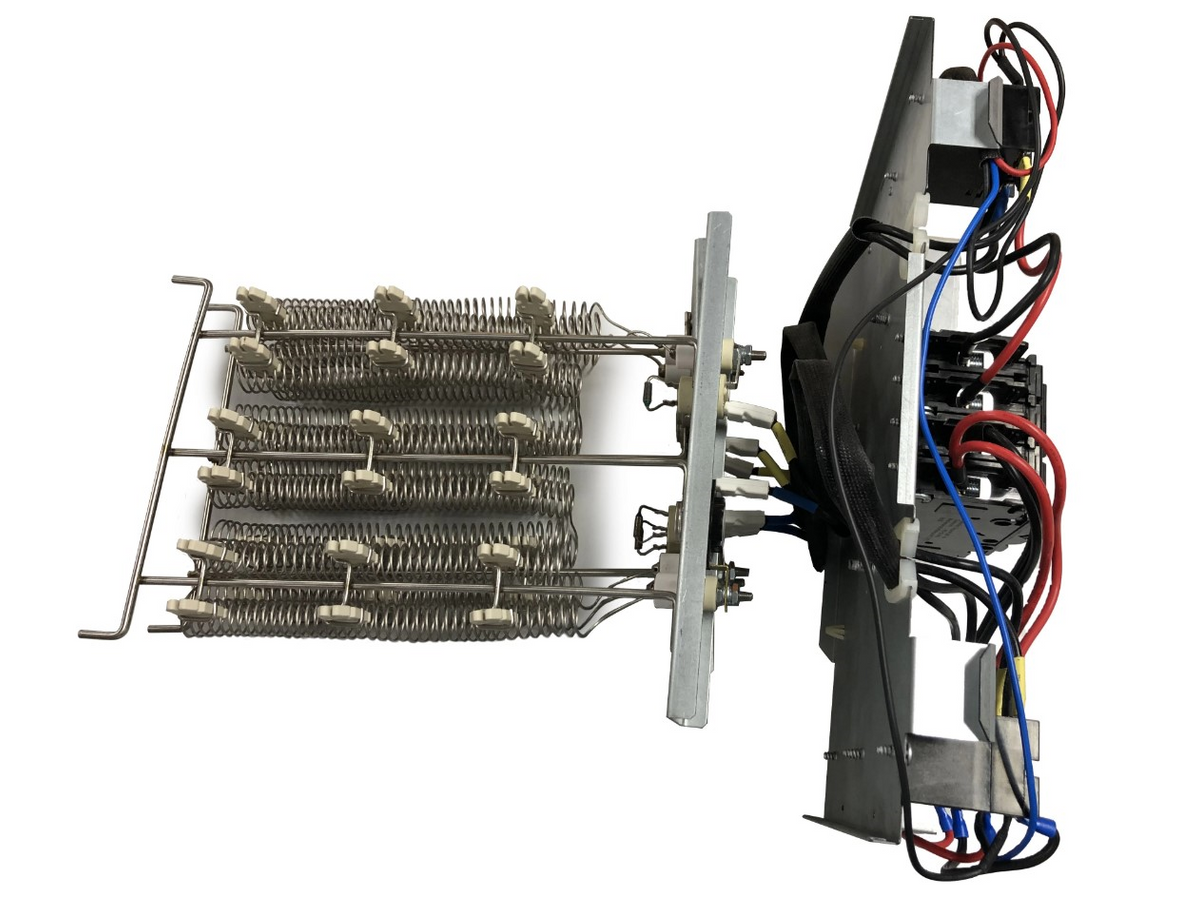

Aciq EAH-10-WM Heater Coil 10 Kilowatt (Wall Mount)

Product Description

The Aciq EAH-10-WM is a 10 kW electric heater coil designed for use in Aciq unitary multi-tenant style wall-mount air handlers, providing approximately 34,100 BTU of heating output. It adds straight electric heating to compatible Aciq wall-mount ducted heat pump systems and is configured for single-phase operation at 208/230/240 volts. The coil integrates into specified ACiQ indoor units for residential and multi-family applications.

• 10 kW electric heater coil delivering approximately 34,100 BTU.
• Designed for integration with ACiQ-18W-WM, ACiQ-24W-WM, ACiQ-30W-WM, and ACiQ-36W-WM wall-mount air handlers.
• Single-phase electrical configuration for 208 / 230 / 240 Volts; weight approximately 8 lb.

Product Highlights

10 kW electric heater coil for Aciq wall-mount air handlers; ~34,100 BTU; 208/230/240 V single-phase; 8 lb.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-10-WM

Technical Specifications

• Brand: Aciq
• MPN: EAH-10-WM
• SKU: EAH-10-WM
• Product Type: Heater coil
• Power: 10 Kilowatts
• Heating BTU: 34,100
• Input Voltage: 208 / 230 / 240 Volts
• Phase: Single Phase
• Mounting Type: Wall mount (for compatible air handler)
• Compatible with: ACiQ-18W-WM, ACiQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
• Weight: 8 lbs
