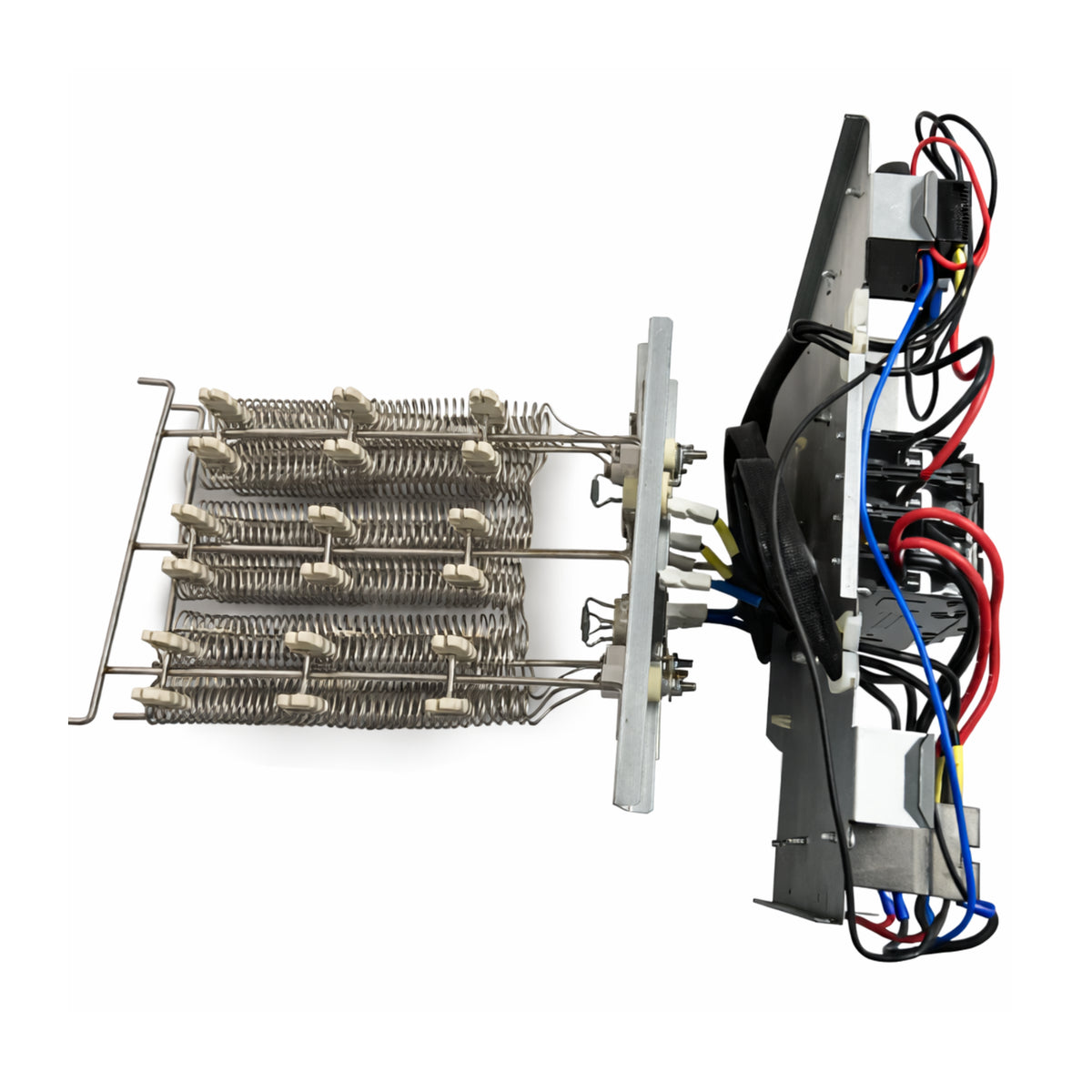

Aciq EAH-10-E-32 Essentials Electric Heat Kit 10 kW (10 kW)

Product Description

The ACiQ EAH-10-E-32 is a 10 kW electric heat kit for ACiQ Essentials unitary air handlers, providing 10 kilowatts (34,100 BTU) of supplemental electric heat. It operates on 208/240V single-phase, 60 Hz electrical service and adds straight electric heating to unitary ducted heat pump systems. The kit integrates with ACIQ-18-AH-E-32 through ACIQ-60-AH-E-32 air handler models and measures 9.84 in x 13.78 in x 11.81 in, weighing 5.95 lbs.

• 10 kW (34,100 BTU) electric heating output for supplemental heat
• Electrical: 208/240V single-phase, 60 Hz
• Compatible with ACIQ-18-AH-E-32, ACIQ-24-AH-E-32, ACIQ-30-AH-E-32, ACIQ-36-AH-E-32, ACIQ-48-AH-E-32, ACIQ-60-AH-E-32

Product Highlights

10 kW electric heat kit for ACiQ Essentials unitary air handlers; 208/240V single-phase operation; dimensions 9.84 x 13.78 x 11.81 in, weight 5.95 lbs.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-10-E-32

Technical Specifications

• Brand: ACiQ
• MPN: EAH-10-E-32
• Power: 10 kW
• Heating Capacity: 34,100 BTU
• Input Voltage: 208/240V single-phase, 60 Hz
• Dimensions: 9.84 in x 13.78 in x 11.81 in
• Weight: 5.95 lbs
• Compatible Air Handlers: ACIQ-18-AH-E-32, ACIQ-24-AH-E-32, ACIQ-30-AH-E-32, ACIQ-36-AH-E-32, ACIQ-48-AH-E-32, ACIQ-60-AH-E-32
• Application: Supplemental electric heat for ACiQ Essentials unitary ducted heat pump systems
