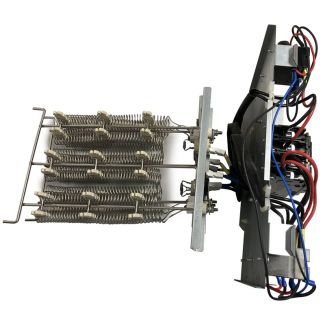

Aciq EAH-08-P 8kw Electric Heater Coil Air Handler

Product Description

The ACIQ EAH-08-P is an 8 kilowatt electric heater coil designed for integration into ACIQ unitary air handlers. It adds straight electric heating capability to compatible air handler units, converting them into complete heating and cooling systems without the need for a separate furnace or heat pump. Licensed HVAC technicians typically install this component as part of a new system build or a heating upgrade on an existing air handler. The coil mounts directly inside the air handler cabinet and operates on the unit's existing electrical supply infrastructure.

This heater coil is designed for use in ceiling mount air handler configurations. It is well suited for multi-tenant residential and light commercial applications where electric heat is the preferred or code-required heating source. Typical installations include apartments, condominiums, and commercial suites where gas service is unavailable or impractical. The EAH-08-P slots into ACIQ unitary air handlers and provides consistent, controllable heat output across the conditioned space served by the air handler.

Key Features

• 8 kilowatt electric heating output integrated directly into the air handler cabinet
• Designed for ACIQ unitary ceiling mount air handler platforms
• Enables straight electric heating without a separate furnace or heat pump
• Suitable for multi-tenant residential and light commercial installations
• OEM-style fit for straightforward installation with minimal field modification

Compatibility

Compatible with the following ACIQ air handlers: ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, and ACiQ-36W-WM.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local electrical codes and NEC requirements. Disconnect and lock out all power to the air handler before accessing the cabinet or installing the heater coil. Verify that the circuit supplying the air handler is properly sized for the added 8 kilowatt load before energizing the system. Do not bypass any safety limit switches or controls integrated into the air handler.

Technical Specifications

• Heating Capacity: 8 kilowatts

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-08-P
