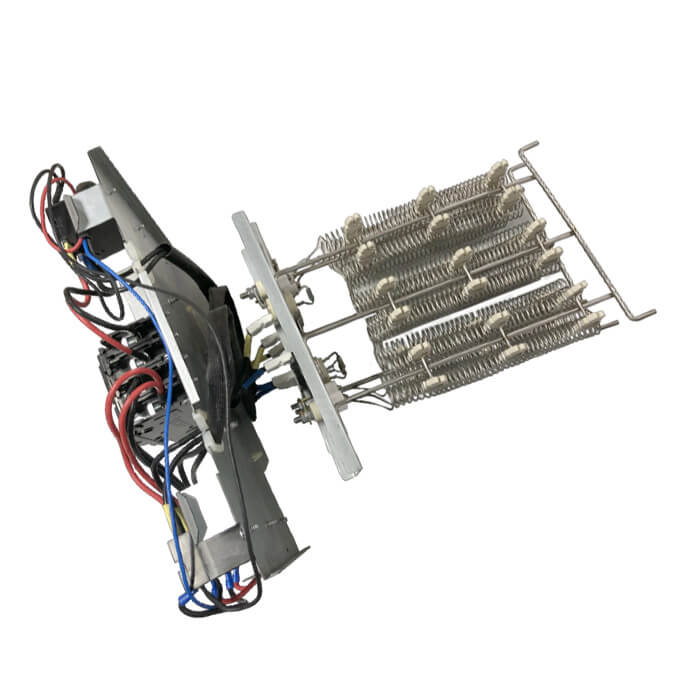

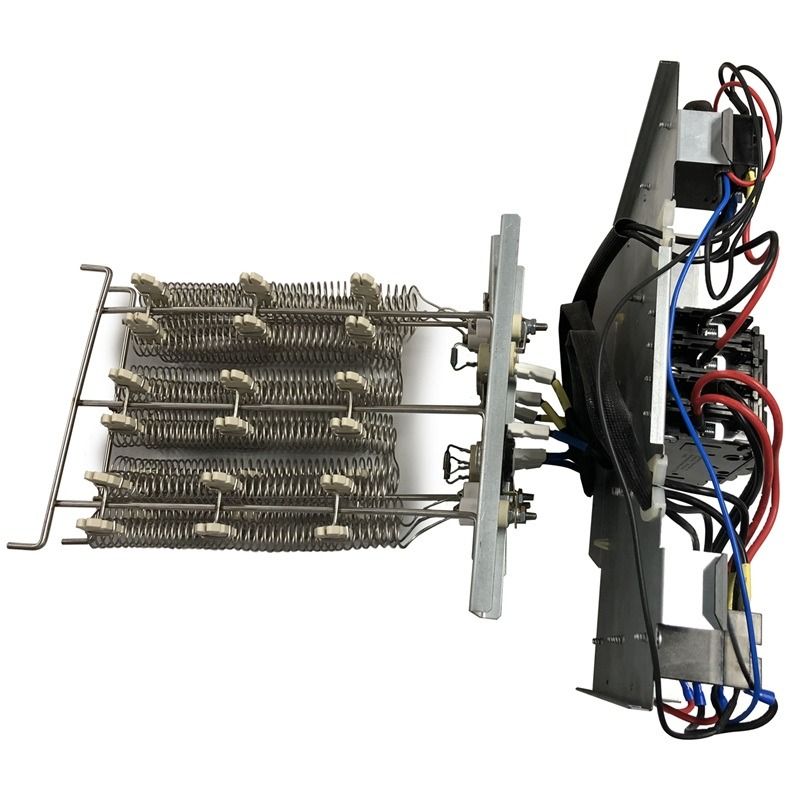

Aciq EAH-05TD Electric Heater Coil 5 kW (5 kW)

Product Description

Aciq EAH-05TD is a UL-certified 5 kW electric heater coil designed to integrate into ACiQ AHD/AH air handlers or cabinet systems for backup or supplemental heat. The unit produces approximately 16,200 BTU and operates on 208/230 V single-phase power, weighing about 8 lb. It is intended for PTAC and unitary air handler applications and can add straight electric heating to ducted heat pump systems.

• UL-certified, ready-to-install electric heater coil for backup or supplemental heat
• 5 kW output (approx. 16,200 BTU); electrical: 208/230 V, single phase, 60 Hz; weight: 8 lbs
• Compatible with ACiQ unitary air handlers: ACiQ-24TD-AH, ACiQ-36TD-AH, ACiQ-48TD-AH, ACiQ-60TD-AH

Product Highlights

5 kW electric heat kit for adding supplemental or backup heat to ACiQ unitary air handlers

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-05TD

Technical Specifications

• Model: EAH-05TD
• Brand: Aciq
• Product type: Electric heater coil (backup/supplemental heat)
• Power: 5 kW
• Heating capacity: 16,200 BTU
• Input Voltage: 208/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Weight: 8 lbs
• Certifications: UL certified
• Compatible air handlers: ACiQ-24TD-AH, ACiQ-36TD-AH, ACiQ-48TD-AH, ACiQ-60TD-AH
• Product family: Also available in 10 kW, 15 kW, 20 kW (15 kW and 20 kW include built-in circuit breakers)
• Safety information: Proposition 65 warning (California)
